Cook more food. Entertain more possibilities.

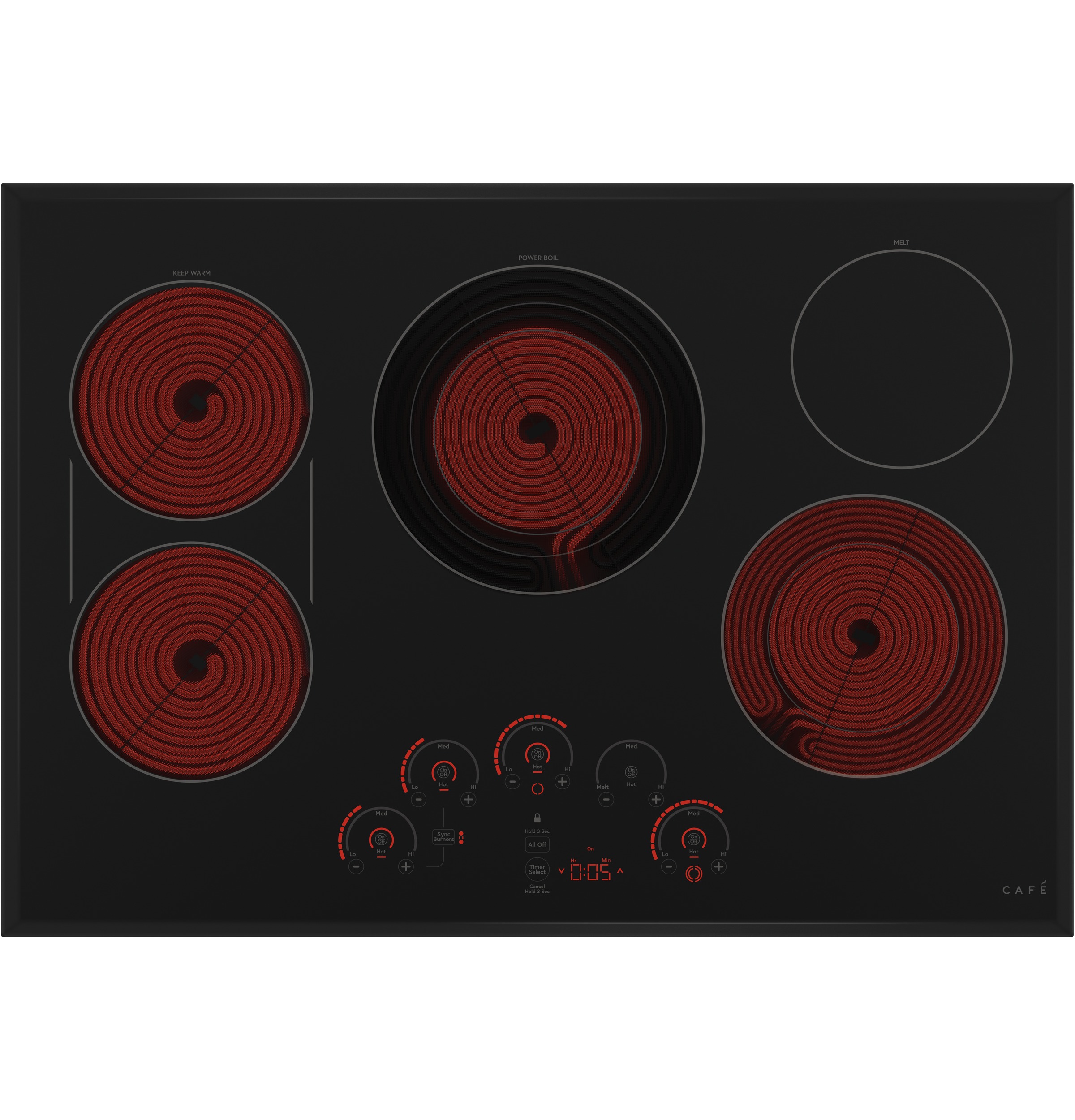

• Prepare more at the same time with five radiant cooking elements that deliver rapid, consistent heat

More heat for more space

• Evenly heat large cookware like griddles or dutch ovens by controlling two 7" synchronized elements with just the touch of a button

Control at your fingertips

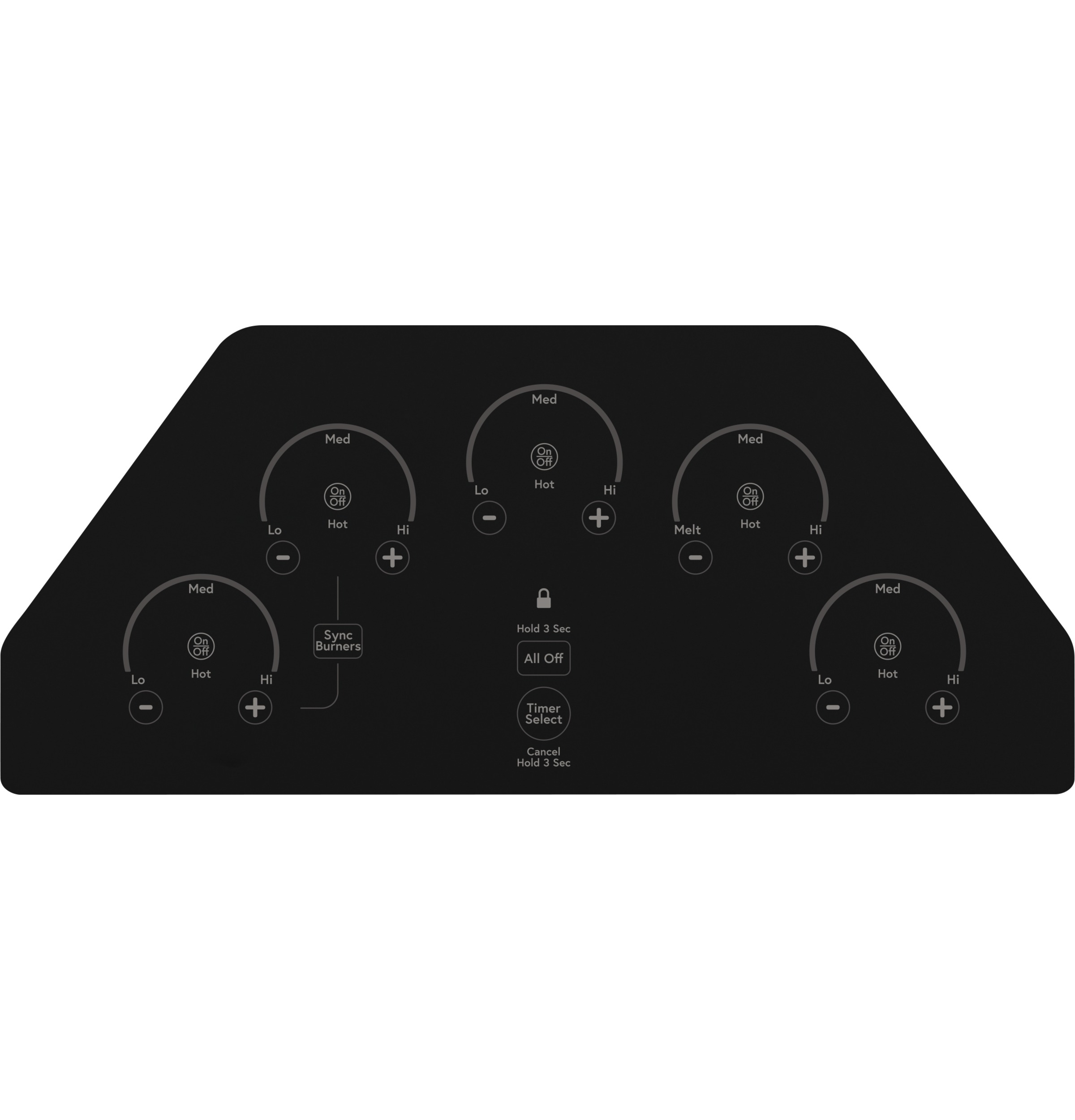

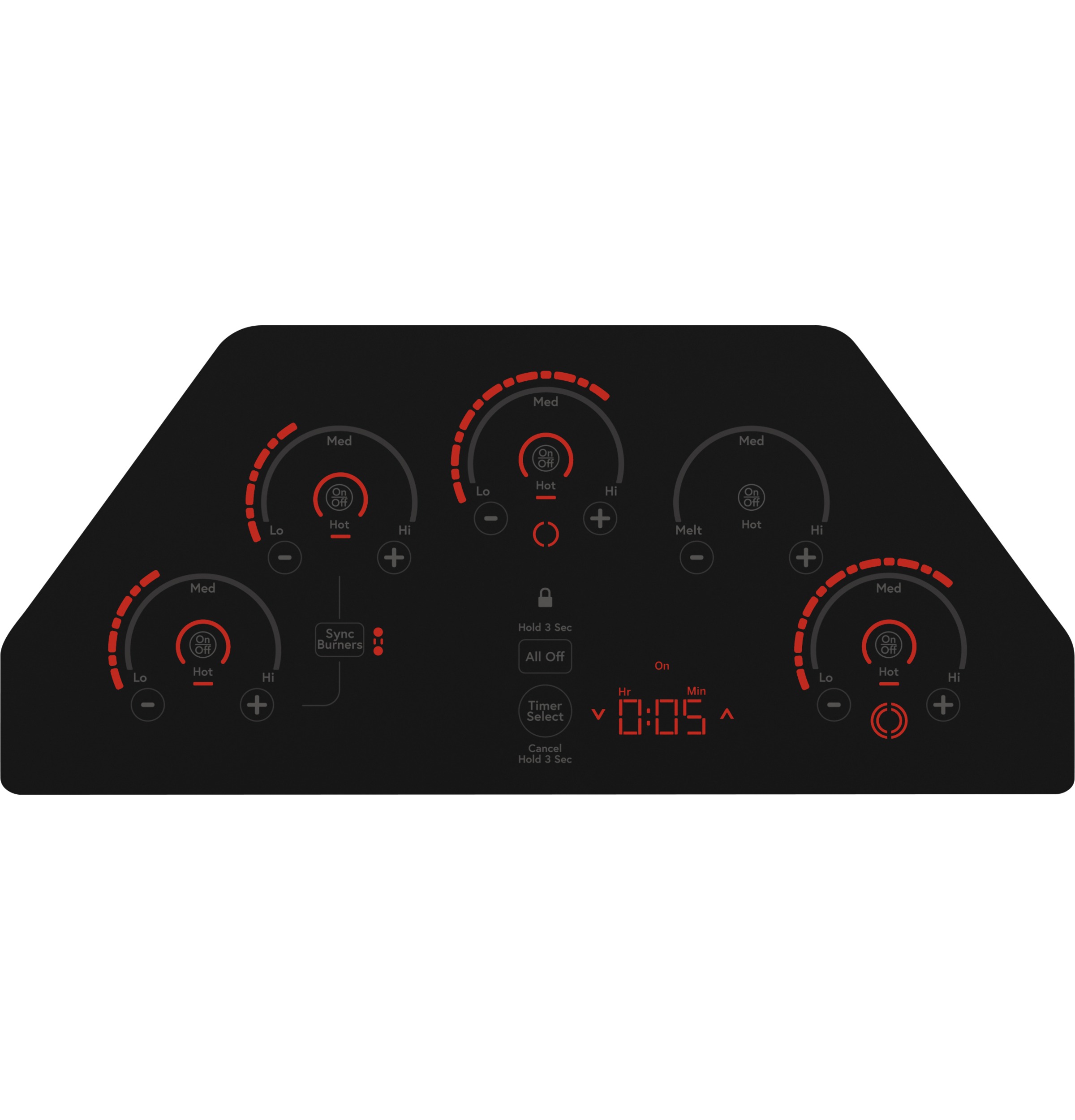

• Make your cooking process as impressive as the food itself, with touch controls that let you control heat with just one swipe

The perfect match for pots and pans of all sizes

• Tailor your burner size to your cookware with an 9"/7"/5" element that's powerful enough to boil water quickly

Guaranteed to fit your space

• When you’re updating your kitchen, attention to detail is a priority. That’s why Café cooktops are guaranteed for an exact fit or Café Appliances will pay up to $100 toward modifications.

Flexible burner sizes add more function

• Tailor your burner size to your cookware with an 8"/5" dual element

Melting just got more precise

• Melt butter without browning it using the melt setting

Keep dishes at ready-to-serve temperatures

• Serve every dish at the perfect temperature thanks to a keep warm setting on a fully-functional 6" element

Safety controls add peace of mind

• Prevent unintended burner activation with control lock capability

Know what’s hot and what’s not

• Keep your kitchen accident-free with a hot surface indicator light that shows you with a glance when elements are too hot to touch

APPEARANCE

Color Appearance : Matte Black

Frameless : Yes

FEATURES

Filler trim kit : JXTR32B

Cooktop Burner Type : 5 Ribbon, Smoothtop

Melt Setting : Yes

Fuel Type : Electric

Element - Left Front : 7" 1500W

Indicator Lights : 5 Hot Surface, Red, Surface Element "ON"

Element - Right Front : 8"/5" 2200W Dual

Control Location : Front Center

Cooktop Type : Radiant Smoothtop

Cooktop Surface : Black Ceramic Glass with Beveled Edge

Cooktop Control Features : All-Off Control, Control Lock Capability, Custom Settings, Keep-Warm Setting, Melt Setting, Multi-element timer, Sync-Burners Capability

Element - Left Rear : 7" 1500W

Control Type : Glass Touch

Element - Center : 9"/7"/5" 3000W Power Boil

Element - Right Rear : 6" 1200W

Griddle : Included

Product Type : Cooktop

FILTER

App Filter - Cabinet Width : Cooking 30 in. (Standard)

App Filter - Backlit Knobs : Yes

App Filter - Cooktop Type : Radiant Smoothtop

App Filter - Fuel Type : Electric

App Filter - SyncBurners : Yes

App Filter - Control Type : Rotary knobs

POWER / RATINGS

Recommended Circuit Breaker (Amps) at 240V : 40

Max. Connected Load (kW) at 240V : 9.4

Max. Current Draw (Amps) at 240V : 39.2

Max. Connected Load (kW) at 208V : 7.1

Recommended Circuit Breaker (Amps) at 208V : 40

Max. Current Draw (Amps) at 208V : 33.9

WARRANTY

Parts Warranty : Limited 1-year entire appliance

Warranty Notes : See written warranty for full details

Labor Warranty : Limited 1-year entire appliance

WEIGHTS & DIMENSIONS

Cooktop Size : 30 in

Overall Height : 5.8125 in

Cutout Depth (in) : 19-5/8

Cabinet Width : 30 in

Approximate Shipping Weight : 46 lb

Overall Width : 29.875 in

Net Weight : 40 lb

Cutout Width (in) : 28-1/2

Overall Depth : 21.5 in
