Create a streamlined cooking experience

• Simplify your cooking steps by using Chef Connect to automatically activate vents and surface lights when a range element is turned on, as well as sync your microwave and range clocks

A simple and smart addition to your culinary repertoire

• Fresh vegetables and rice are perfectly prepared with a steam cook button that simplifies the entire process

Say goodbye to guesswork

• Enjoy consistently delicious results with sensor cooking controls that automatically adjust the time and power

Delicious results in no time at all

• Enjoy oven-quality results in mere minutes with a fast cook setting that combines convection and microwave cooking technology

A microwave that’s as versatile as you are

• Achieve crisp, golden brown results with a convection cooking setting and a special rack that allows air to circulate around foods for even heat distribution

Brighten up the room

• Illuminate the entire cooking surface with crisp, clear LED cooktop lighting that can also save on energy costs

Sparkling clean with just a wipe

• Focus on the food and forget the mess knowing that the stainless steel interior with steam clean lets you swiftly wipe away spills and splatters

Like a breath of fresh air

• Keep your kitchen ready for guests with a three-speed, 300-CFM venting system that removes smoke, grease, odors and moisture

Cook more at once

• Prepare plenty of food with full-width removable oven rack that allow for multi-level cooking at the same time

Cook your way with just one touch of a button

• Enjoy the convenience of one-touch cooking with My Cycle, a custom cycle that remembers the exact time and temperature settings of your favorite foods

Create a look that matches your personal style

• Select any combination of premium finishes and hardware options to create a stunning look customized to any owner’s taste

ACCESSORIES

Optional Side Filler Panel Kit : JX36BSS

Recirculating Charcoal Filter Kit : JX81D or WB02X35607 (included)

Optional Kits : 15" Bump Out Kit - JX15BUMPBB, CXOTRHKPMBT Brushed Black, CXOTRHKPMBZ Brushed Bronze, CXOTRHKPMCG Brushed Brass, CXOTRHKPMCU Brushed Copper, CXOTRHKPMFB Flat Black, CXOTRHKPMSS Brushed Stainless

APPEARANCE

Case Color : Graphite Gray

Handle Color : Brushed Stainless

Door Color : Stainless Steel

Color Appearance : Stainless Steel

CAPACITY

Vent CFM : 300

Exhaust Capacity : 300 ft3/min

Total Capacity (cubic feet) : 1.7 cu ft

ECONOMICAL / QUIET

Venting Type : Externally Vented

FEATURES

Display Type : LED

Cooking Modes : Convection Bake, Fast Cook, Microwave

Electronic Digital Display with Clock : Yes (LED)

Microwave Sensor Cooking Controls : Beverage, Cook (5 Foods), Defrost: Weight/Time, Popcorn, Reheat, Steam Cook

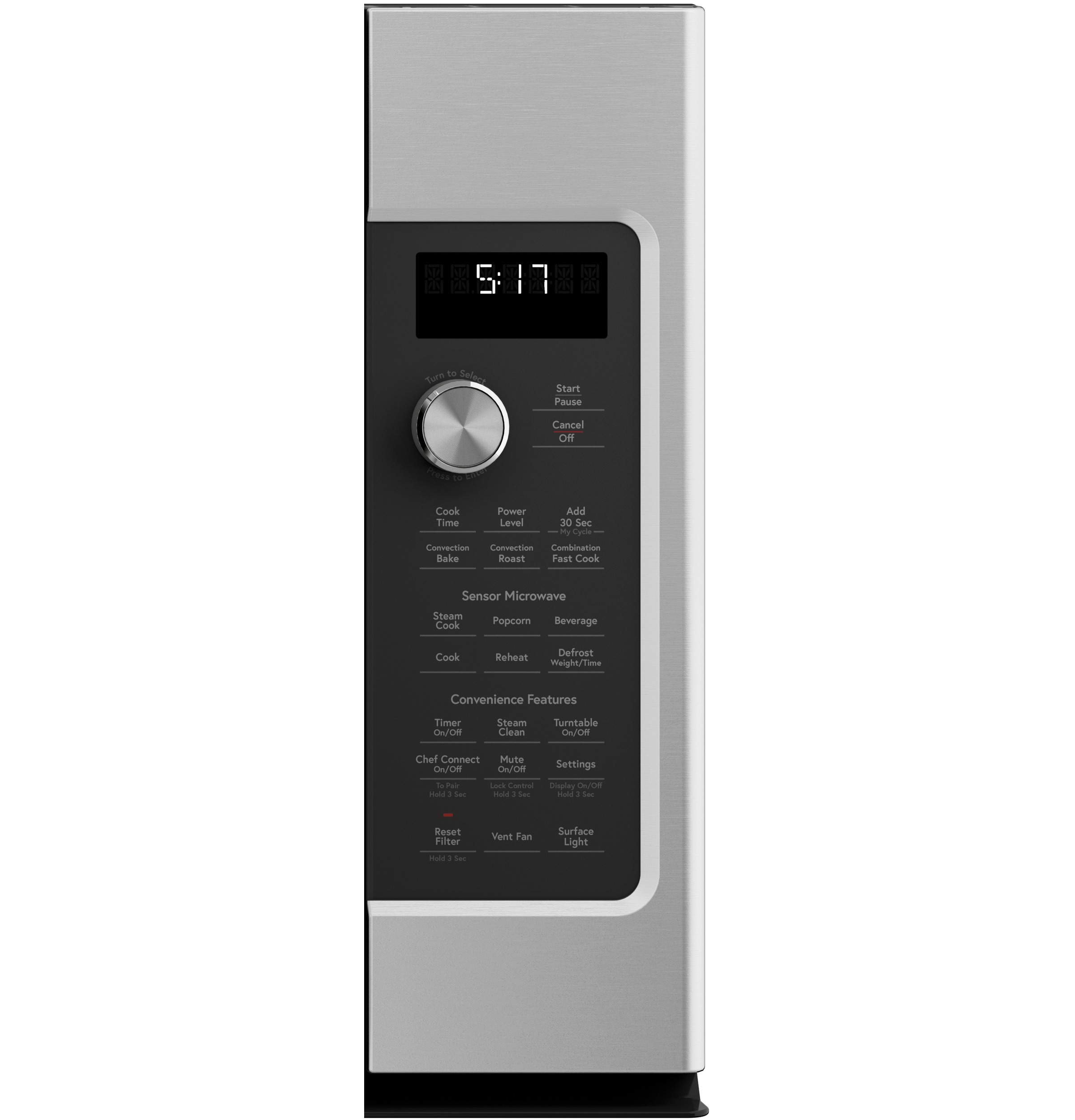

Control Features : Add 30 Seconds, Cancel/Off, Chef Connect On/Off, Cook Time, Mute On/Off, My Cycle, Power Level, Settings, Start/Pause, Steam Clean, Surface Light, Timer On/Off, Turntable On/Off, Vent Fan

Rack Type : 1 Round Rack, 1 Square Rack, 2 Fixed Positions

Display Screen Size (Diagonal Length) : 3.13

Product Type : Over-the-range Microwave

Convection Cooking Controls : Bake, Fast Cook, Roast

Style : Over-The-Range

Turntable On / Off : Yes

Microwave Watts (IEC-705) : 950 W

Power Levels : 10

Control Type : Dial, Glass Touch

Display On/Off : Yes

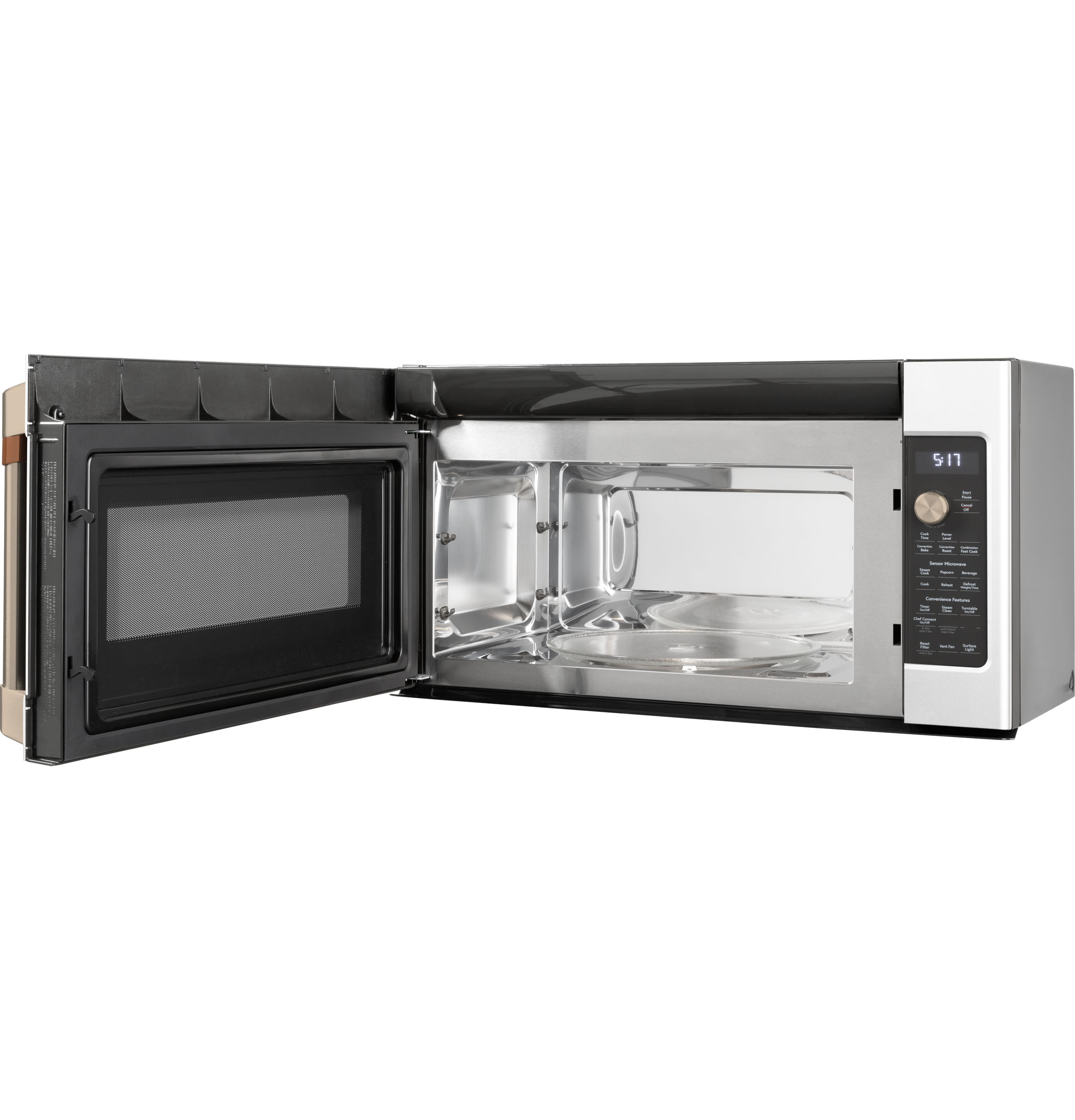

Microwave Oven Interior : Stainless Steel

Cooktop Lighting : High/Low/Off, LED

Exhaust Fan : 3-Speed, 300-CFM

Turntable : Glass

Cooking Technology : Microwave/Convection

Turntable Size : 13.6 in

Interior Oven Light : Halogen

FILTER

App Filter - Convection : Yes

App Filter - Venting Type : External

App Filter - Cooking Modes : Microwave Warm/Proof

App Filter - Control Type : Electronic touchpad

App Filter - Wattage : 1000 to 1099

App Filter - Cooking Technology : Microwave with Convection

App Filter - Cabinet Width : Cooking 30 in. (Standard)

App Filter - Product Type : Microwave Over-the-Range

App Filter - Capacity : Microwave Medium (1.5 - 1.8 cu. ft.)

App Filter - Voltage : 120V

POWER / RATINGS

Input Volts/Hertz : 120/60

Electrical Input - 120V Watts : 1700

WARRANTY

Labor Warranty : Limited 1-year entire appliance

Parts Warranty : Limited 1-year entire appliance, Limited 5-year magnetron tube

Warranty Notes : See written warranty for full details

WEIGHTS & DIMENSIONS

Approximate Shipping Weight : 95 lb

Cabinet Width : 30 in

Net Weight : 85 lb

Overall Width : 29.875 in

Cavity (W x H x D) : 21-5/8 x 9-3/4 x 14-1/8

Overall Depth : 17.9375 in

Overall Height : 16.3125 in

• Installation Template Top Cabinet

• Use and Care Manual

• Quick Specs

• Installation Template Rear Wall

• Installation Instructions
