Full-sized beer dispenser

• Large 4.9 cu.ft. interior accepts half, quarter, and mini kegs

Tap Kit

• Includes a 5 lb. CO2 tank and regulator, draft arm, Sankey American tap, and connection hardware

Automatic defrost

• Reduced user maintenance with auto defrost operation

Ideal beer temperature

• Operates between 36º and 45ºF to keep a variety of beers stored at just the right serving temperature

Reversible stainless steel door

• User-reversible door swing for added flexibility

Adjustable thermostat

• Dial thermostat for easy and intuitive temperature management

Adjustable shelves

• Includes two wire shelves with six positions for easier storage when using this unit to store other items

Color-matched beer tower

• Draft tower comes in a jet black finish with stainless steel trim for an attractive, modern look

Casters included (ships unassembled)

• To make the beer dispenser portable, install this set of 2 1/2" high locking casters

Top guard rail (ships unassembled)

• Attractive chrome guard rail helps to reduce spills and neaten service

Drip tray

• Removable drip tray catches spills to help contain the mess

Fully finished black cabinet

• Allows the beer dispenser to be used freestanding

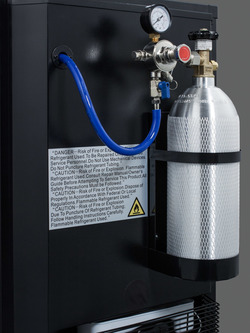

Brackets for rear-mounted tank

• CO2 tank can be mounted outside the beer dispenser in the rear of the cabinet, freeing up added space inside for additional storage

100% CFC free

• Environmentally friendly design without ozone-damaging chemicals

Beer Dispenser

Door Swing : RHD

Reversible : Yes

Tap Kit : Yes

Height with Tap : 48.75" (124 cm)

Number of Taps : 1

Adjustable Shelves : Yes

Shelf Type : Wire

Shelf Qty : 2

Thermostat Type : Dial

Refrigerant : R600a

Refrigerant Amount : 0.67 oz.

High Side PSI : 150.0

Low Side PSI : 60.0

Inter Height : 28.5" (72 cm)

Interior Width : 16.63" (42 cm)

Interior Depth : 19.5" (50 cm)

Compressor Step Height : 7.75" (20 cm)

Compressor Step Width : 16.63" (42 cm)

Compressor Step Depth : 4.5" (11 cm)

Wheel Qty : 4

Temperature Range : 36º to 45º F

Exterior

LHD Door reversal to left hand swing : Latch Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.

Overview

Height of Cabinet : 33.0" (84 cm)

Width : 20.0" (51 cm)

Depth : 30.88" (78 cm)

Depth with door at 90° : 43.0" (109 cm)

Capacity : 4.9 cu.ft. (139 L)

Defrost Type : Automatic

Door : Stainless Steel

Cabinet : Black

US Electrical Safety : UL

Canadian Electrical Safety : ULC

Energy Usage/Year : 270.0kWh/year

Amps : 1.1

Voltage/Frequency : 115 V AC/60 Hz

Weight : 70.0 lbs. (32 kg)

Shipping Weight : 75.0 lbs. (34 kg)

Parts & Labor Warranty : 1 Year

Compressor Warranty : 5 Years

• Use and Care Manual

• Spec Sheet
