Standard clean oven

• Smooth surface and rounded corners make clean-up quick and easy

4.8 cu. ft. oven capacity

• Enough room to cook an entire meal at once

All purpose burners

• Delivers a wide range of heat output for most cooking needs

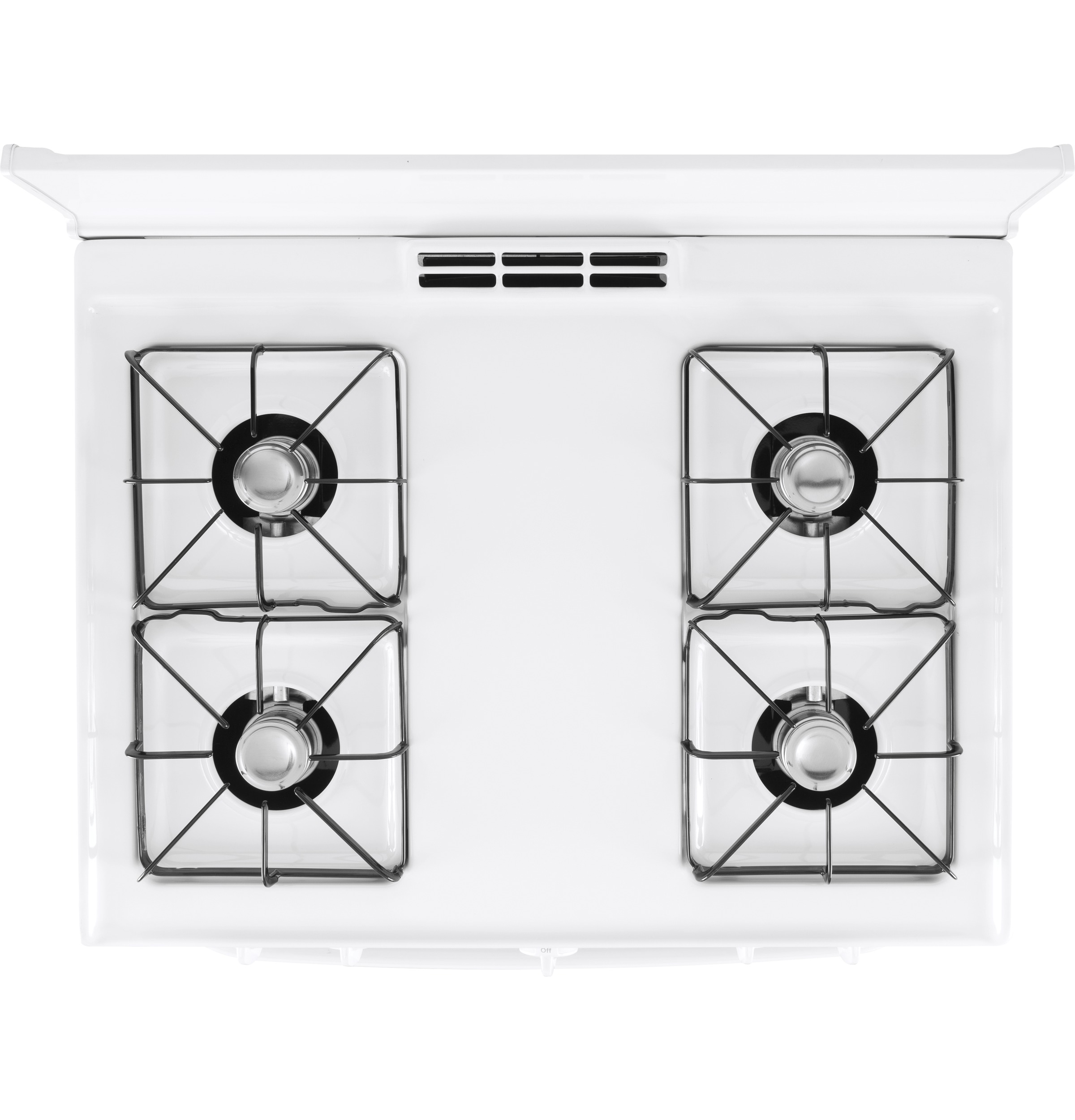

Porcelain upswept cooktop

• Raised edges contain spills, while the surface is easy to wipe clean

Lift-up cooktop

• Access messes under the cooktop for easy cleanability

Easy clean subtop

• Porcelain enameled subtop collects spills and messes for easy cleaning

Standard grates

• Hold cookware securely over burners

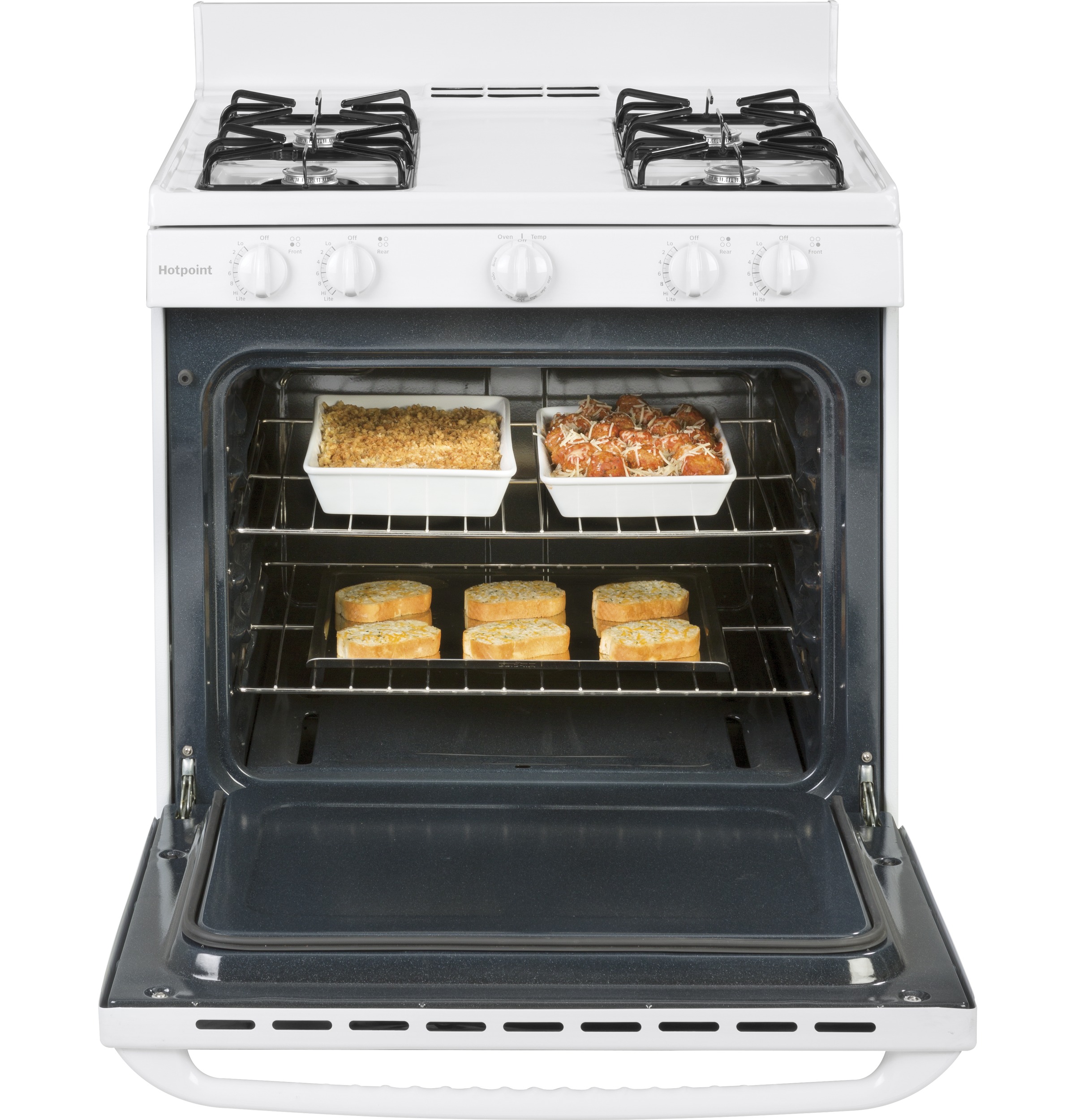

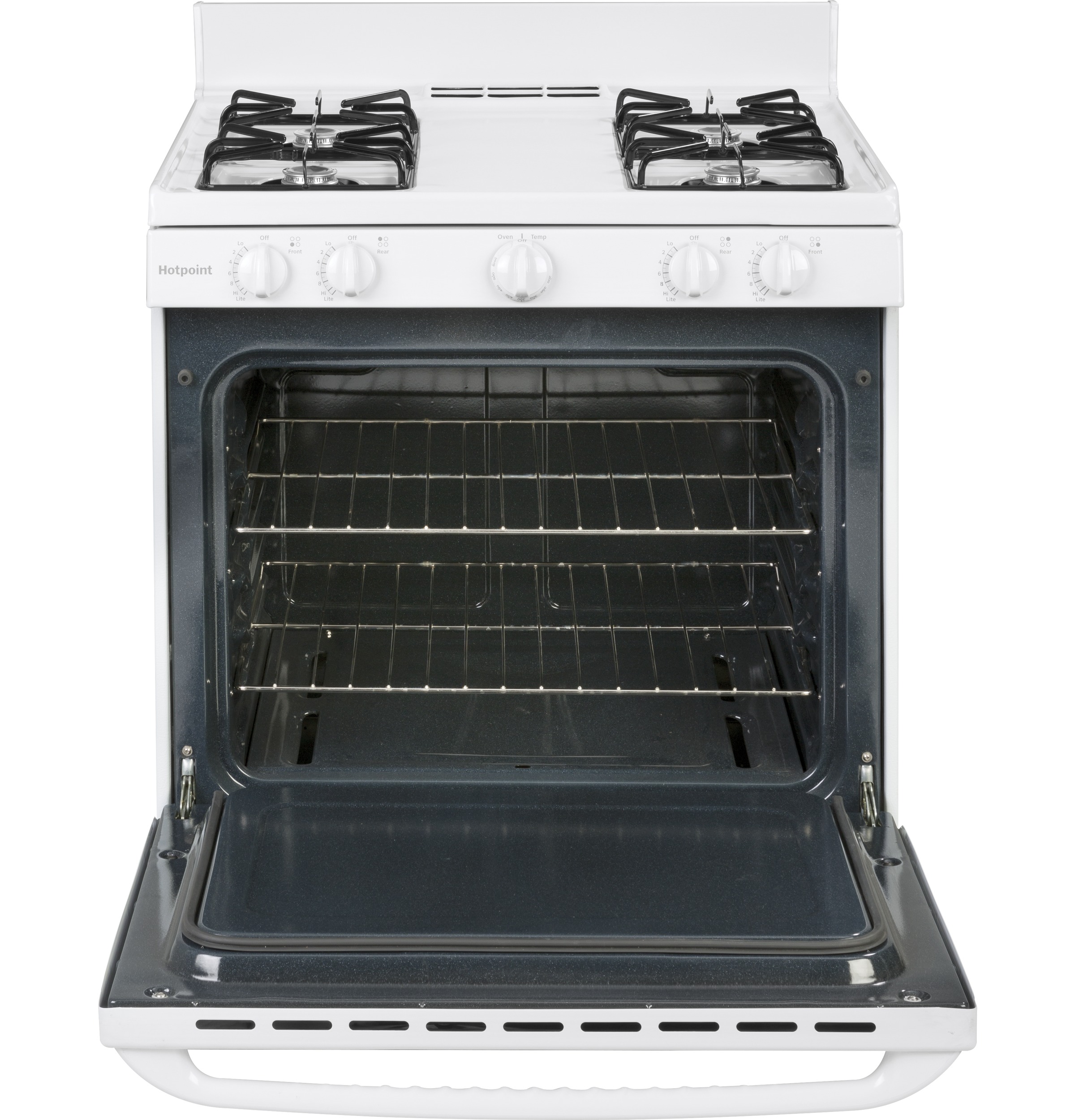

Two oven racks

• Feature a durable construction to help accommodate any size or type of cookware

One-piece durable handle

• Strong and long-lasting

Broiler drawer

• Achieve perfectly browned results

Visor handle

• Features a classic design and easy cleanability

ACCESSORIES

LP Conversion Kit : Included

APPEARANCE

Cooktop Burner Grate Color : Black Gloss

Frameless Oven Door(s) : White Porcelain-Enameled

Control Knobs : White

Handle Color : White

Color Appearance : White

CAPACITY

Total Capacity (cubic feet) : 4.8 cu ft

FEATURES

Slide - Out Broiler Drawer : Drop Down Door

Configuration : Range with Broiler Drawer

Porcelain-Enameled Subtop : Yes

Ignition System : Electronic

Burner - Right Rear : 9,100 BTU

Fuel Type : Natural Gas

OU Certified : No

Cooktop Burner Type : Standard

Oven Rack Features : 2 Flat Nickel Racks

Burner - Left Rear : 9,100 BTU

Oven Cleaning Type : Standard Clean

Cooktop Type : Standard Grates

Cooktop Burner Grate Material : Steel

Sabbath Mode : Yes

Valves (Degree of Turn) : 140

Burner - Right Front : 9,100 BTU

Cooktop Surface : Porcelain-Enamel

Burner - Left Front : 9,100 BTU

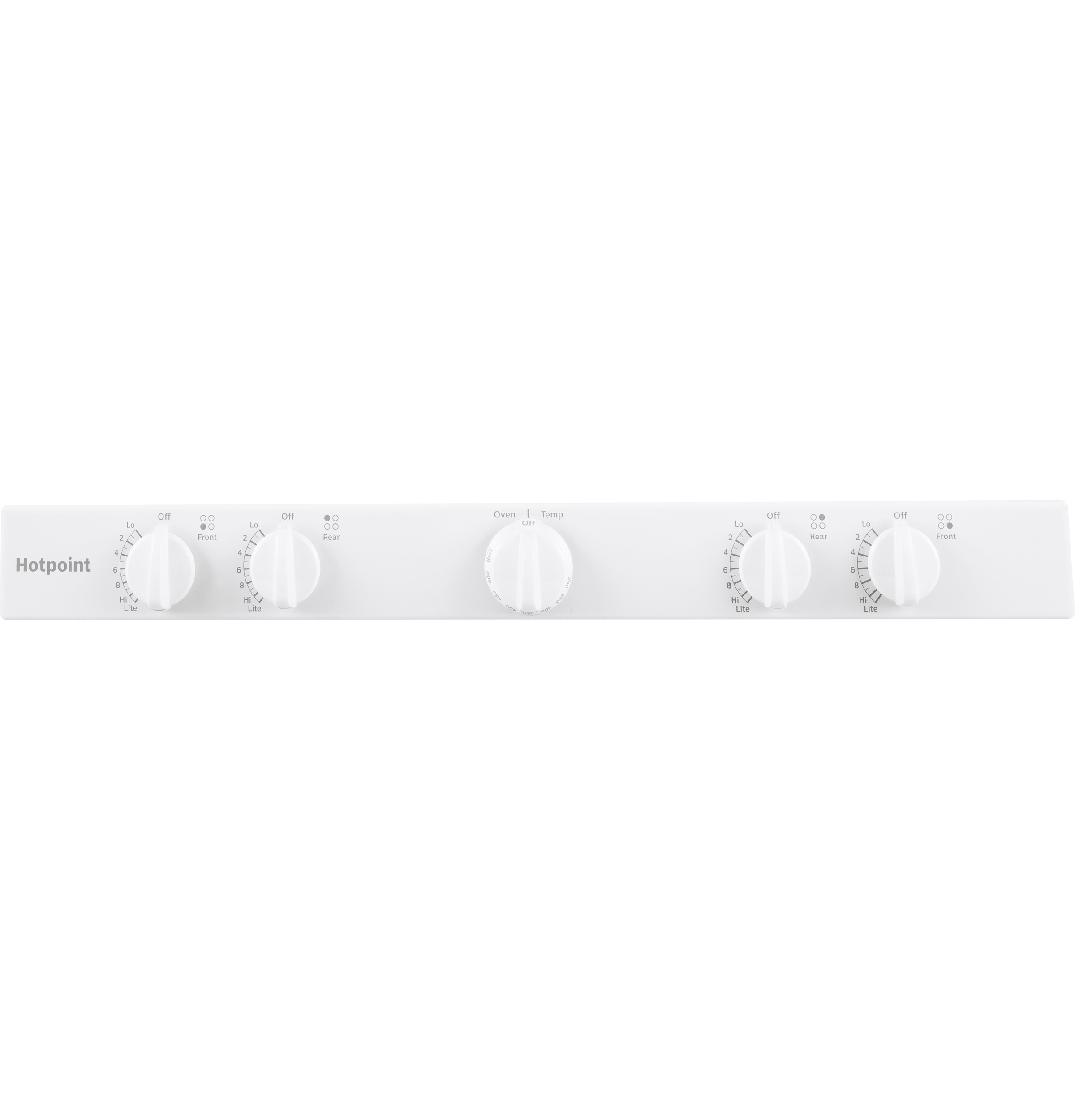

Control Location : Front

Oven Rack Positions (Single or Upper/Lower) : 6

Leveling System : 4 Leveling Legs

One-Piece Drip Pans : Optional Accessory

Cooking Technology : Traditional

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's) : (4) 9.1

Volts/Hertz/Amps : 120V; 60 Hz; 3A

Top Burner BTU Rating - LP (000's BTU's) : (4) 8.0

Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) : 18.0 Bake

Bake/Broiler BTU Rating - LP (000's BTU's) : 16.0 Bake

WARRANTY

Labor Warranty : Limited 1-year entire appliance

Parts Warranty : Limited 1-year entire appliance

Warranty Notes : See written warranty for full details

WEIGHTS & DIMENSIONS

Net Weight : 150 lb

Oven Interior Dimensions (W x H x D) (in.) : 24 x 18-1/2 x 19

Height to Cooking Surface (in.) : 36 1/4 +/- 1/4

Depth with Door Open : 46.75 in

Cabinet Width : 30 in

Approximate Shipping Weight : 170 lb

Overall Width : 30 in

Overall Depth : 28.75 in

Overall Height : 40.125 in

• Installation Instructions

• LP Conversion Kits

• Quick Specs

• Use and Care Manual
