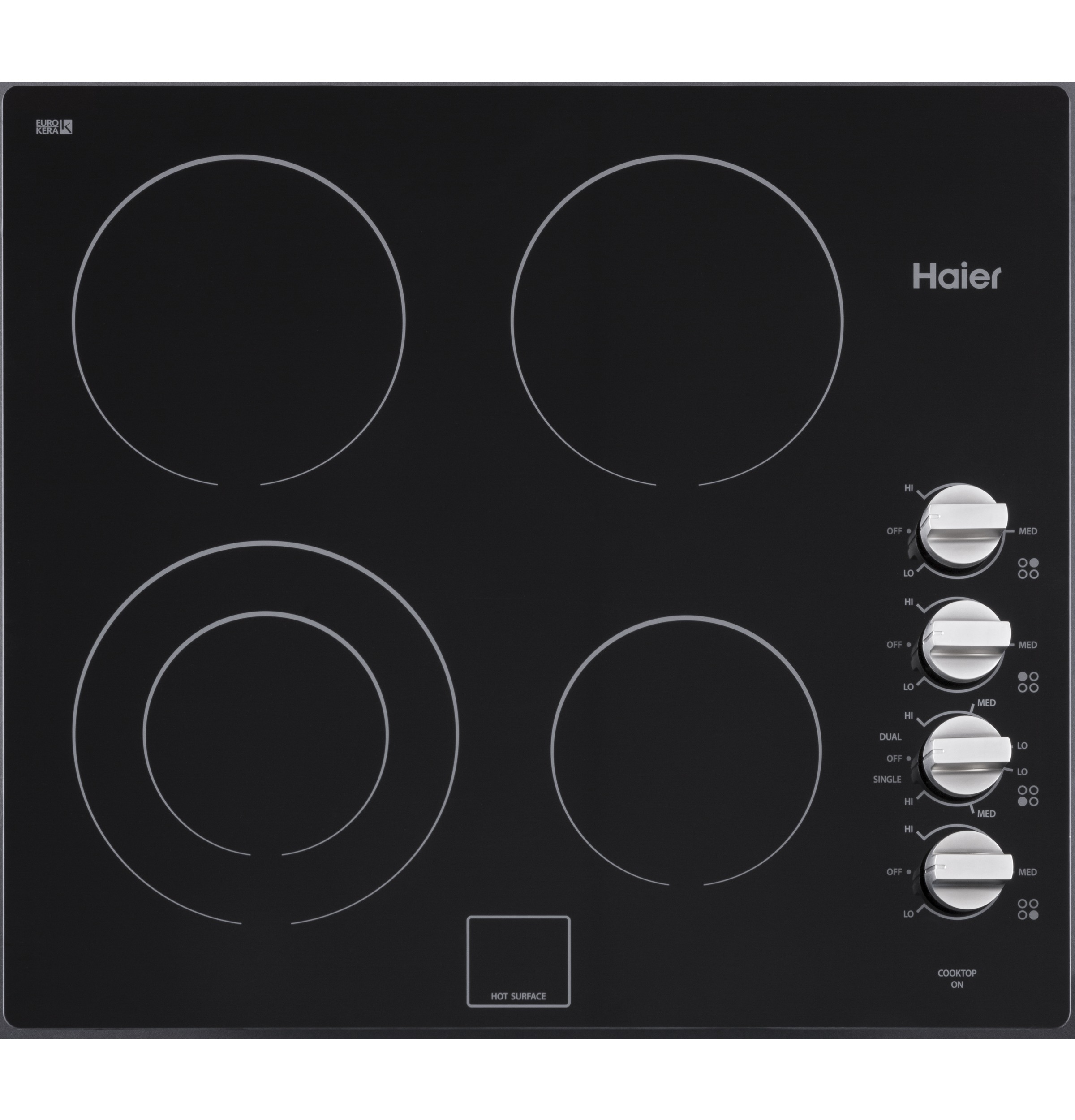

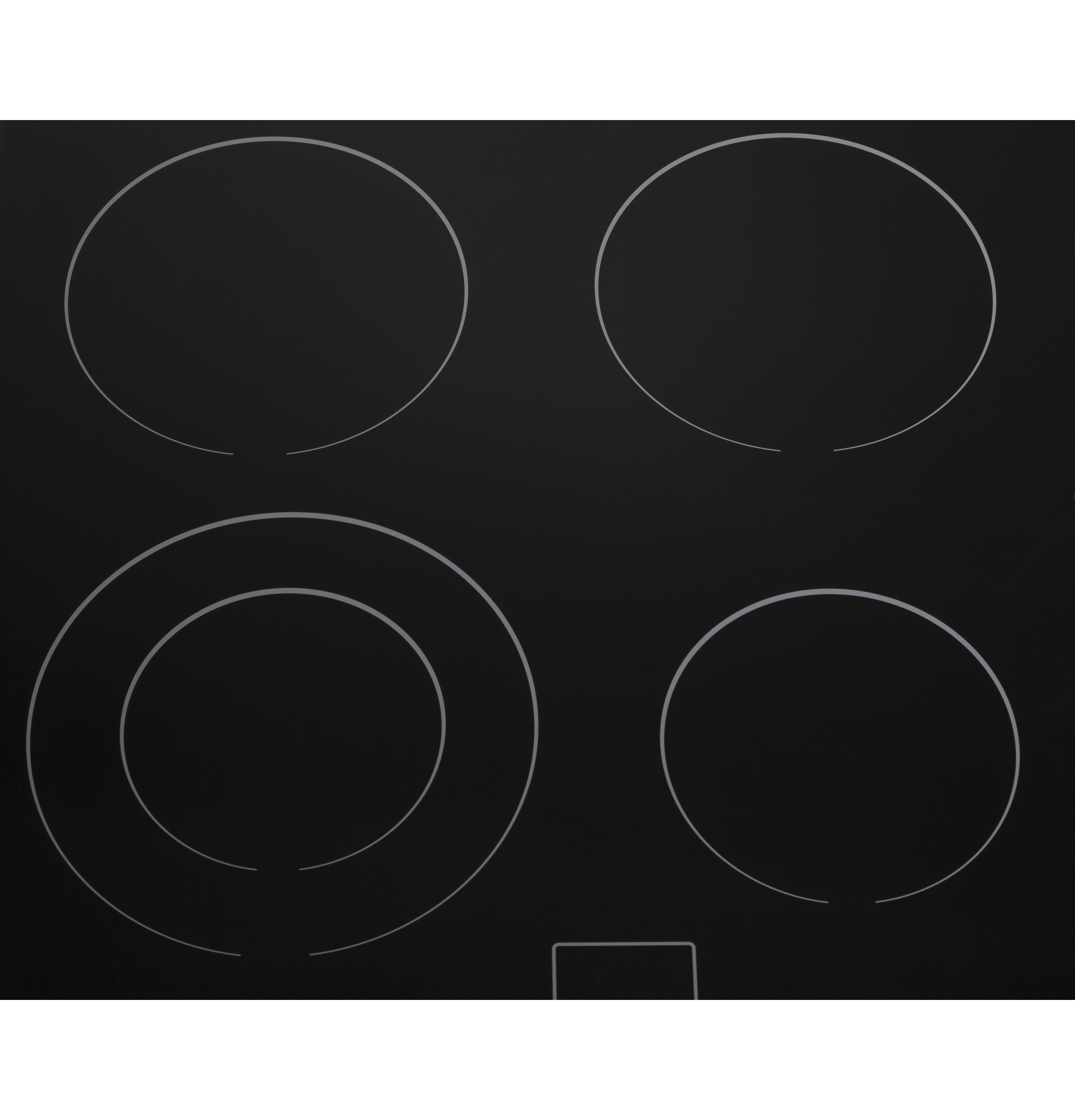

Ceramic glass surface

• Breeze through the kitchen cleanup. Easy-to-clean, ceramic surface makes mealtimes simply effortless

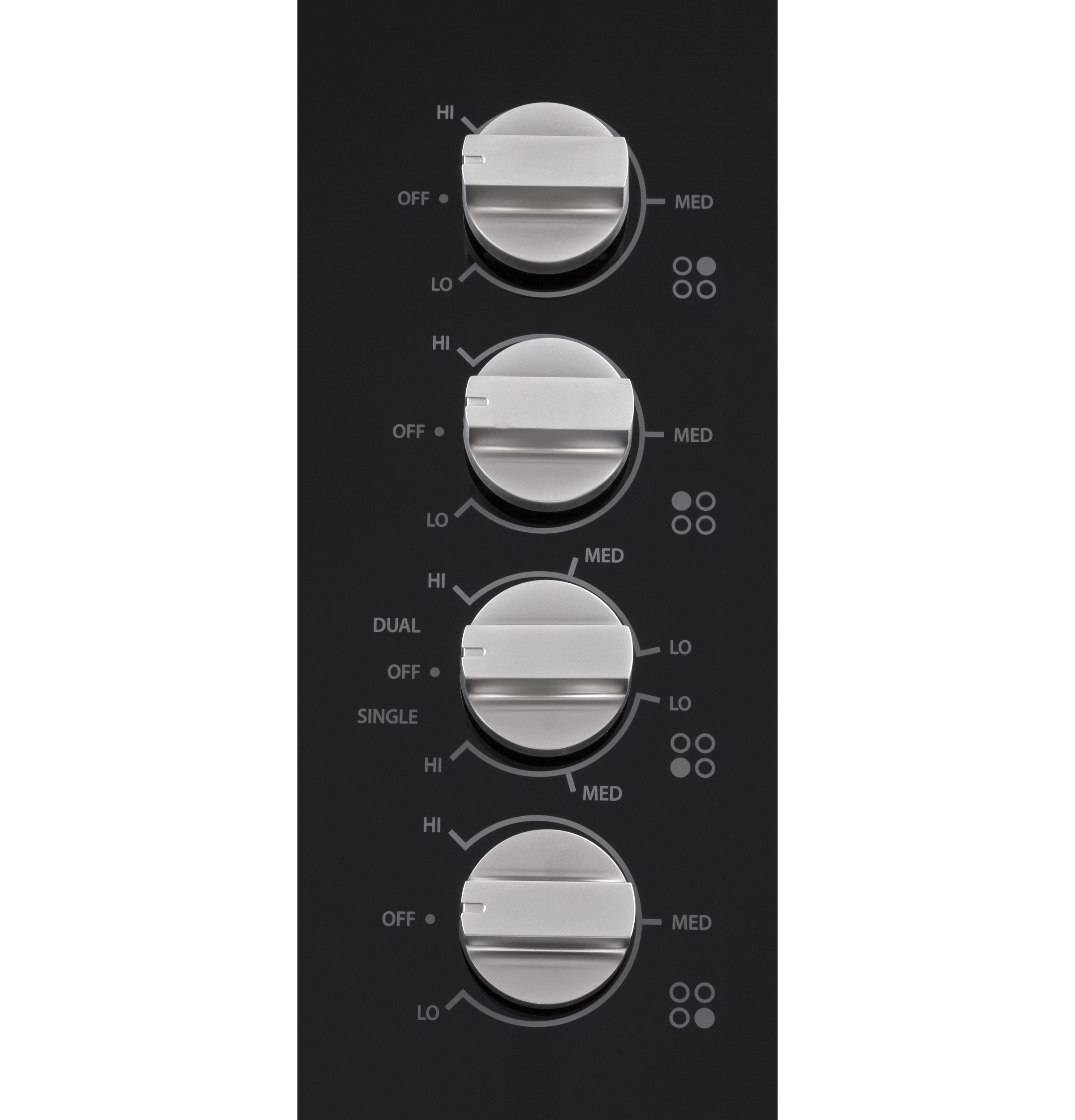

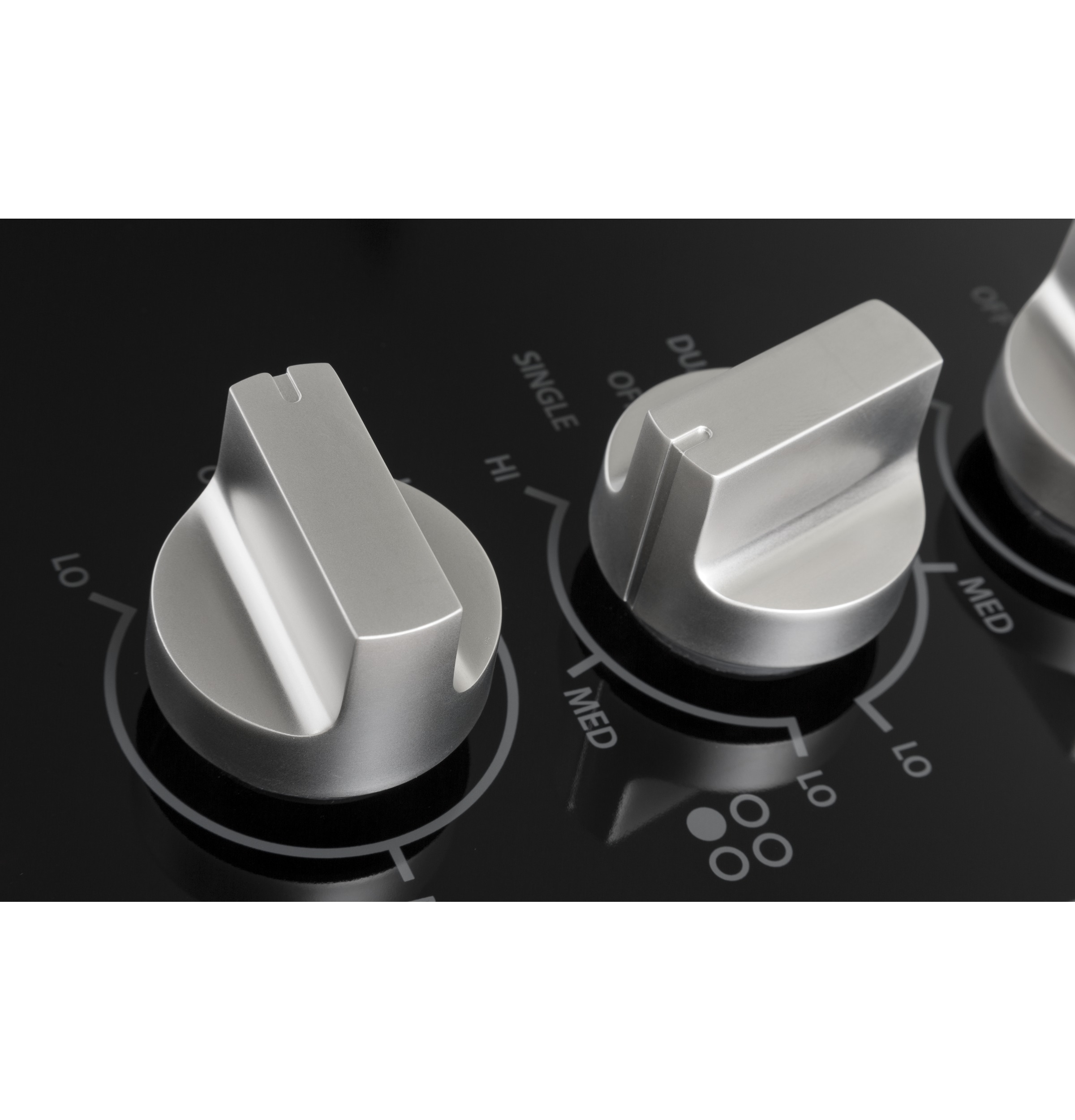

Heavy-duty knobs

• Designed to fit your life and style. Large, easy-to-operate knobs lend a high-end appearance, while their push-to-turn operation provides added safety

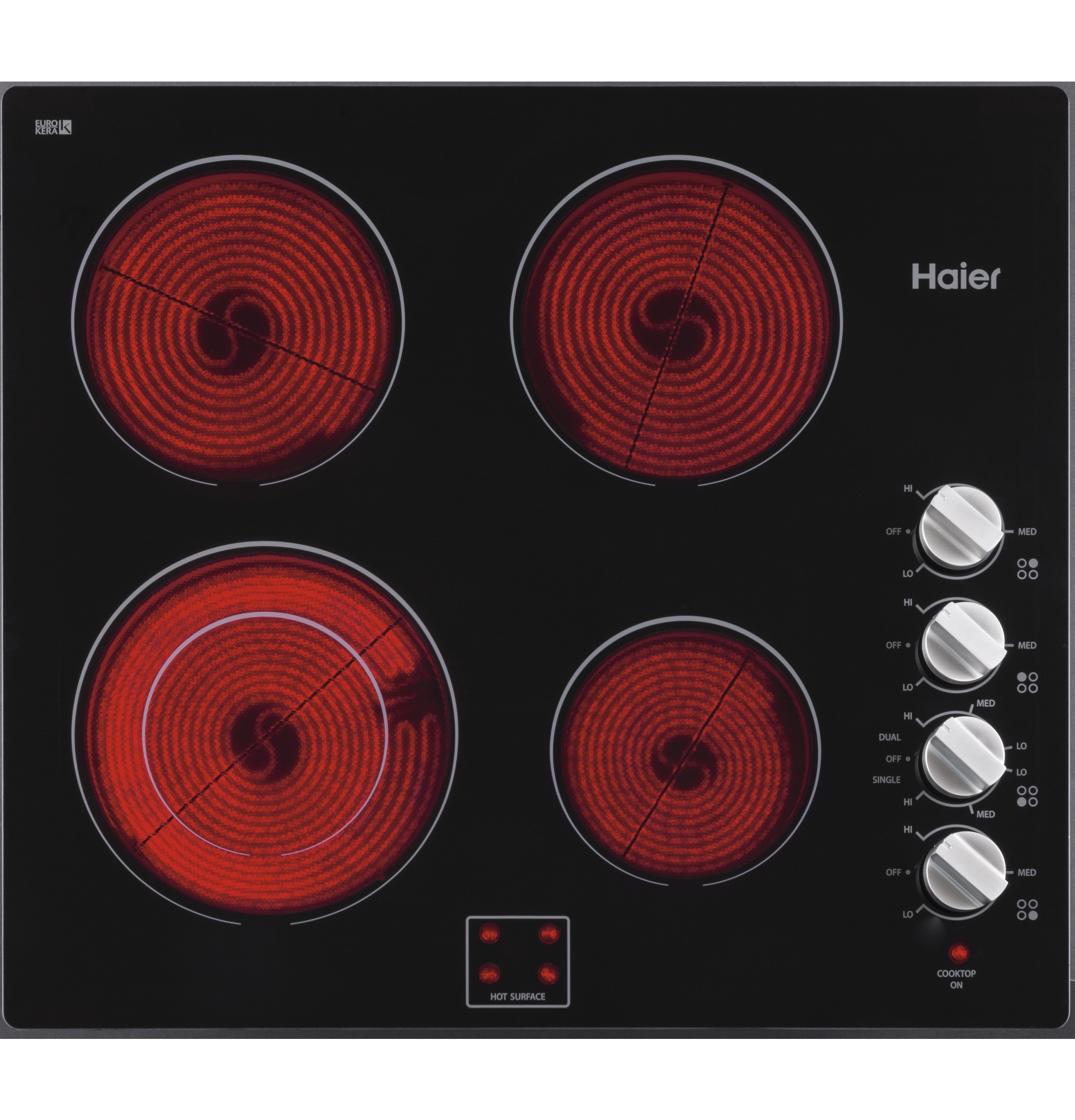

• 4 Radiant Elements

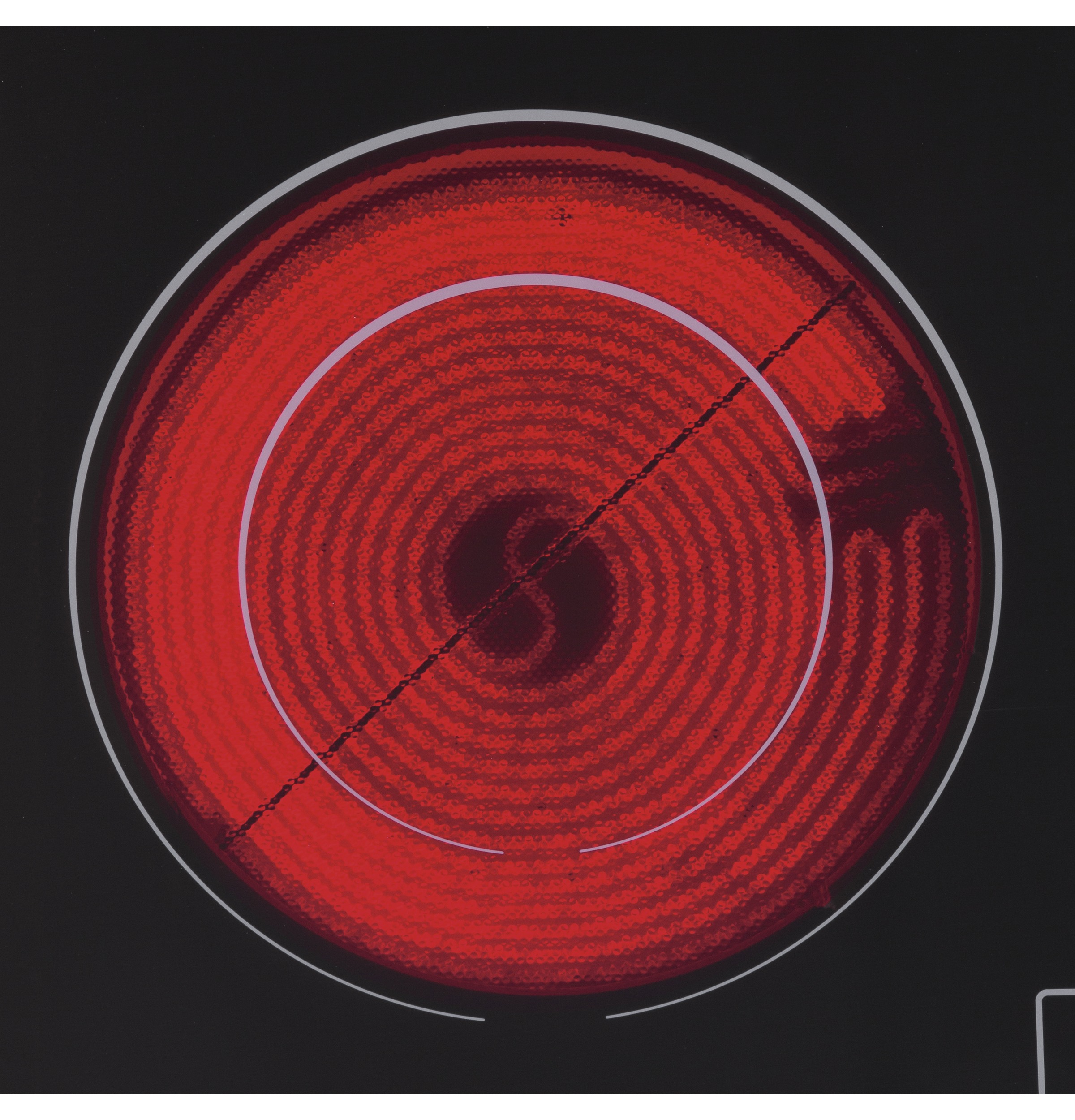

Left-front dual element

• Enables the use of variously sized cookware on one element

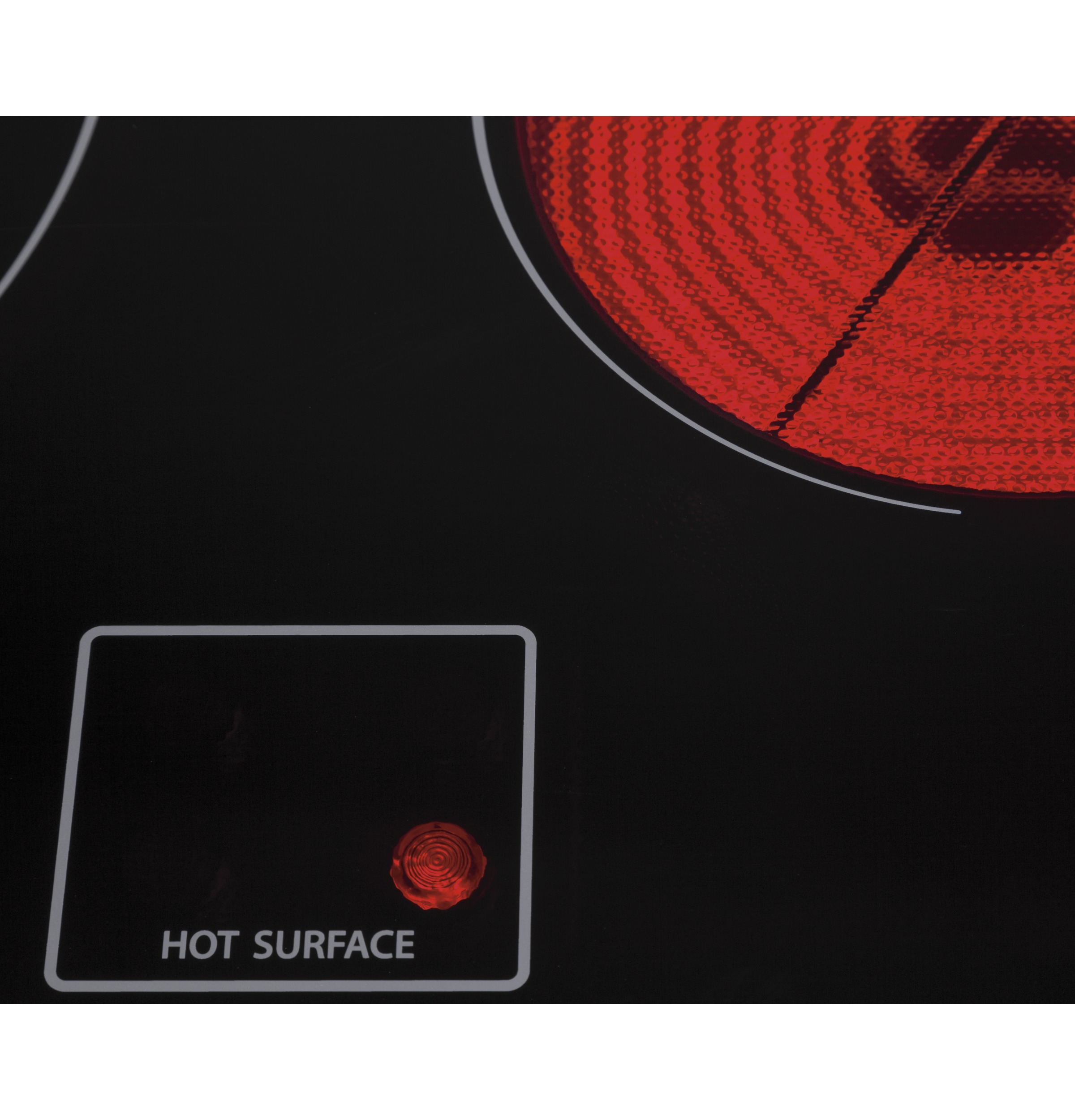

Hot surface indicator

• Too hot to handle. Hot surface indicator illuminates red to show when a cooking area is on or hot.

APPEARANCE

Color Appearance : Black

Control Knobs : Silver

FEATURES

Dishwasher Safe Knobs : Yes

Cooktop Burner Type : Radiant Electric

Fuel Type : Electric

Element - Left Front : 6"/9"- 1400/3000W

Indicator Lights : 1 Hot Surface

Element - Right Front : 6" -1200W

Control Location : Right Side

Cooktop Type : Radiant Smoothtop

Cooktop Surface : Glass Ceramic

Element - Left Rear : 8"- 1800W

Control Type : Knob

Element - Right Rear : 8" - 1800W

Product Type : Cooktop

POWER / RATINGS

Volts/Hertz : 208/240V; 60Hz

KW Rating at 208V : 5.9

Amp Rating at 240V : 32.5

KW Rating at 240V : 7.8

Amp Rating at 208V : 28.2

WARRANTY

Parts Warranty : Limited 2-year entire appliance

Labor Warranty : Limited 2-year entire appliance

WEIGHTS & DIMENSIONS

Overall Height : 3.75 in

Cutout Depth (in) : 20-1/2

Cabinet Width : 24 in

Approximate Shipping Weight : 26 lb

Overall Width : 24 in

Net Weight : 21.6 lb

Cutout Width (in) : 23-1/4

Overall Depth : 21.25 in

• Installation Instructions

• Quick Specs

• Use and Care Manual
