Fit Guarantee

• Replace your old 30” free-standing range with a new 30" slide-in model. GE slide-in ranges are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications.? See offer criteria and details

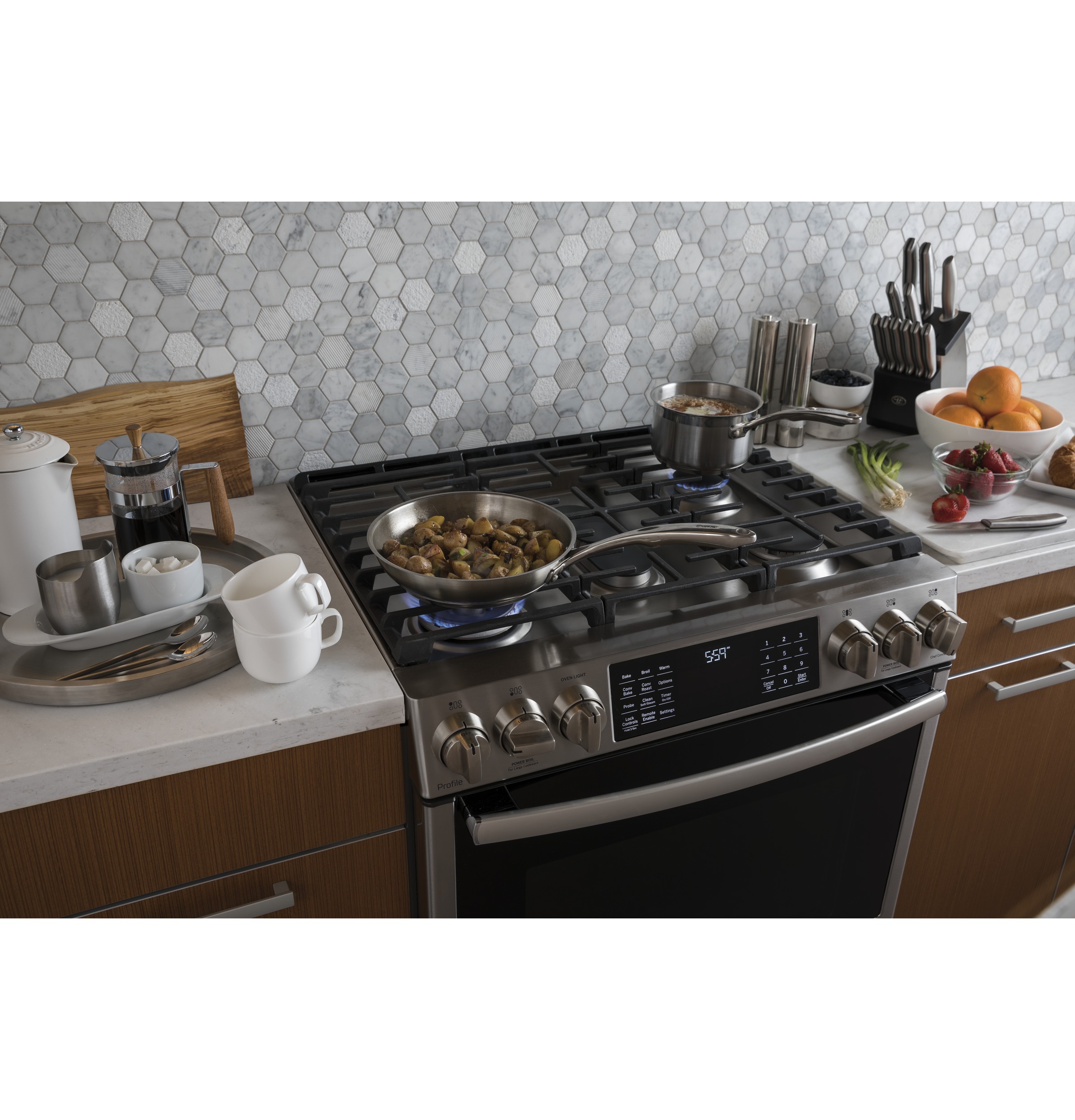

Edge-to-edge cooktop

• A large, continuous cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner

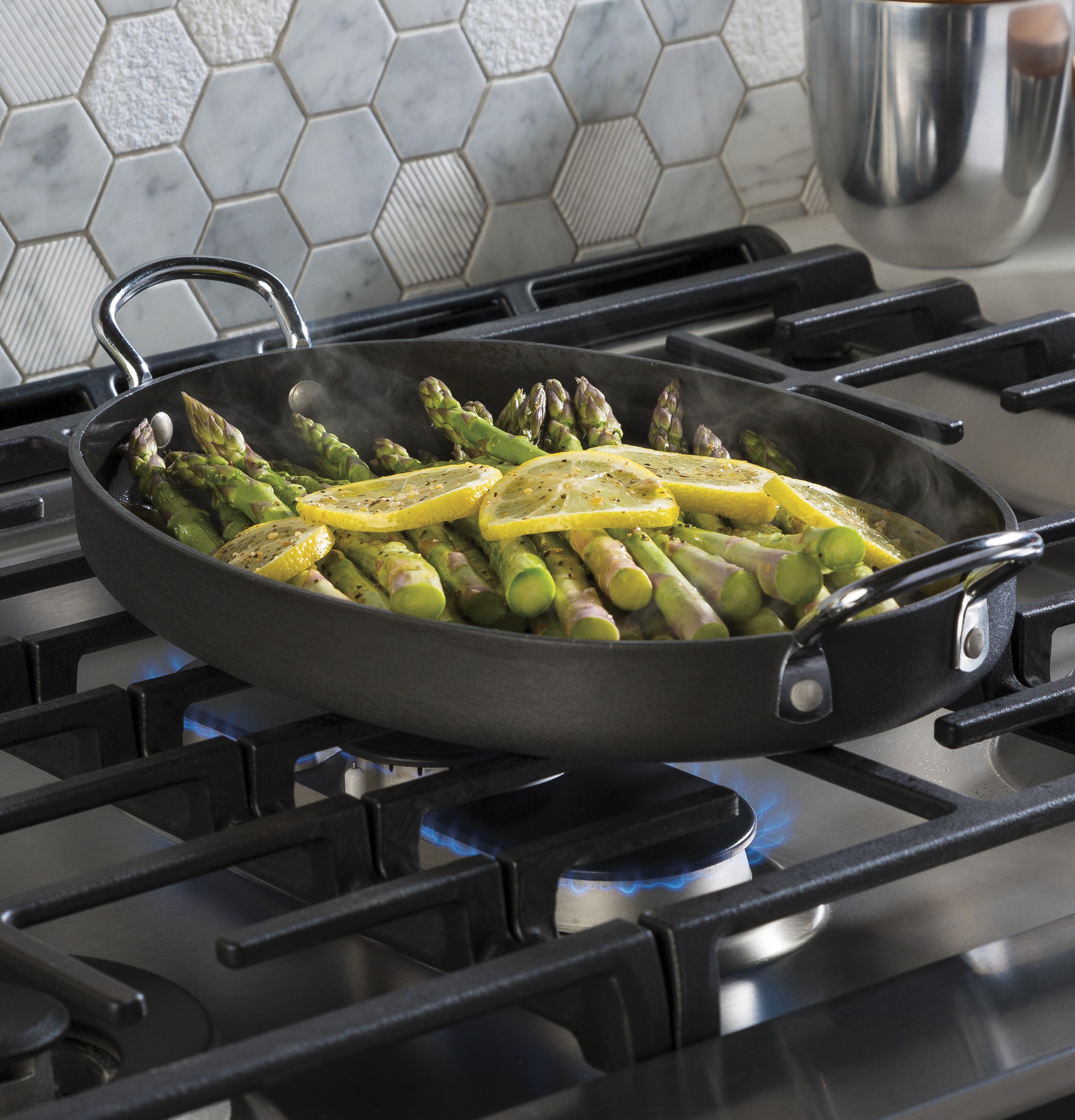

21,000 BTU Tri-ring burner

• Versatile burner creates intense heat perfect for searing, frying and sautéing

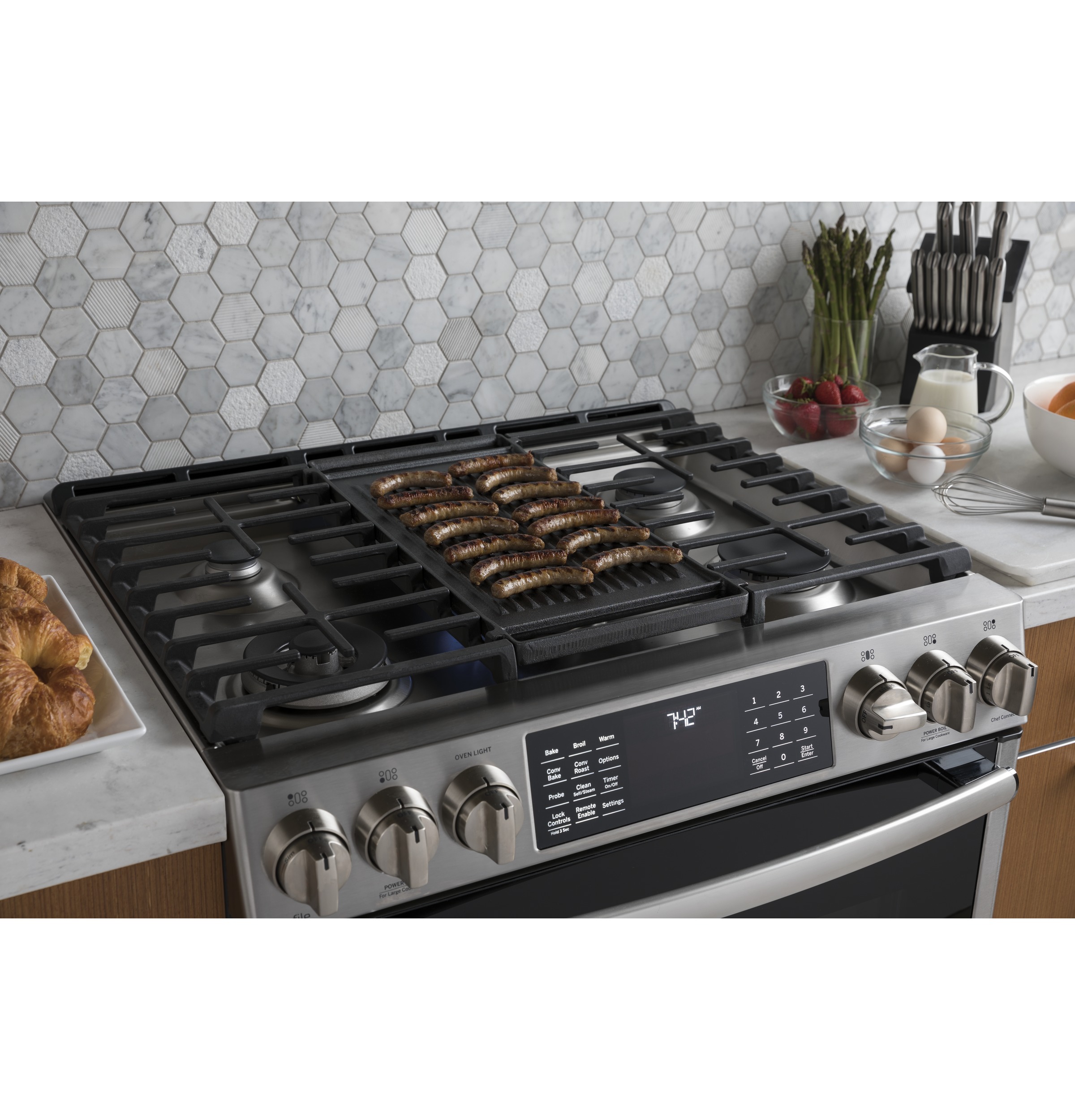

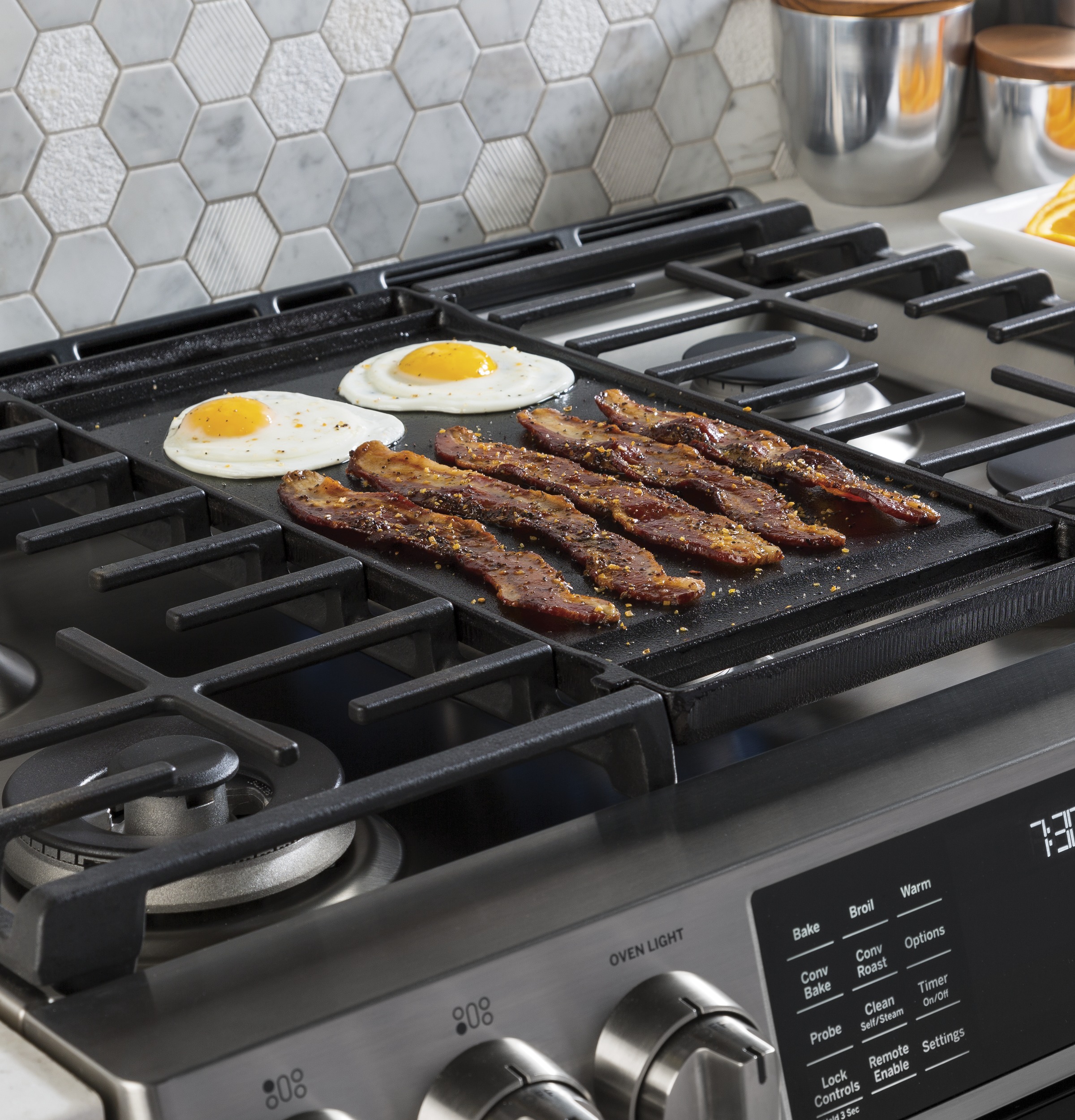

Extra-large integrated reversible cast iron grill/griddle

• Enjoy ultimate cooking versatility. Cook up to six grilled cheeses on the industry’s largest integrated griddle, and then flip it over to grill your favorite foods

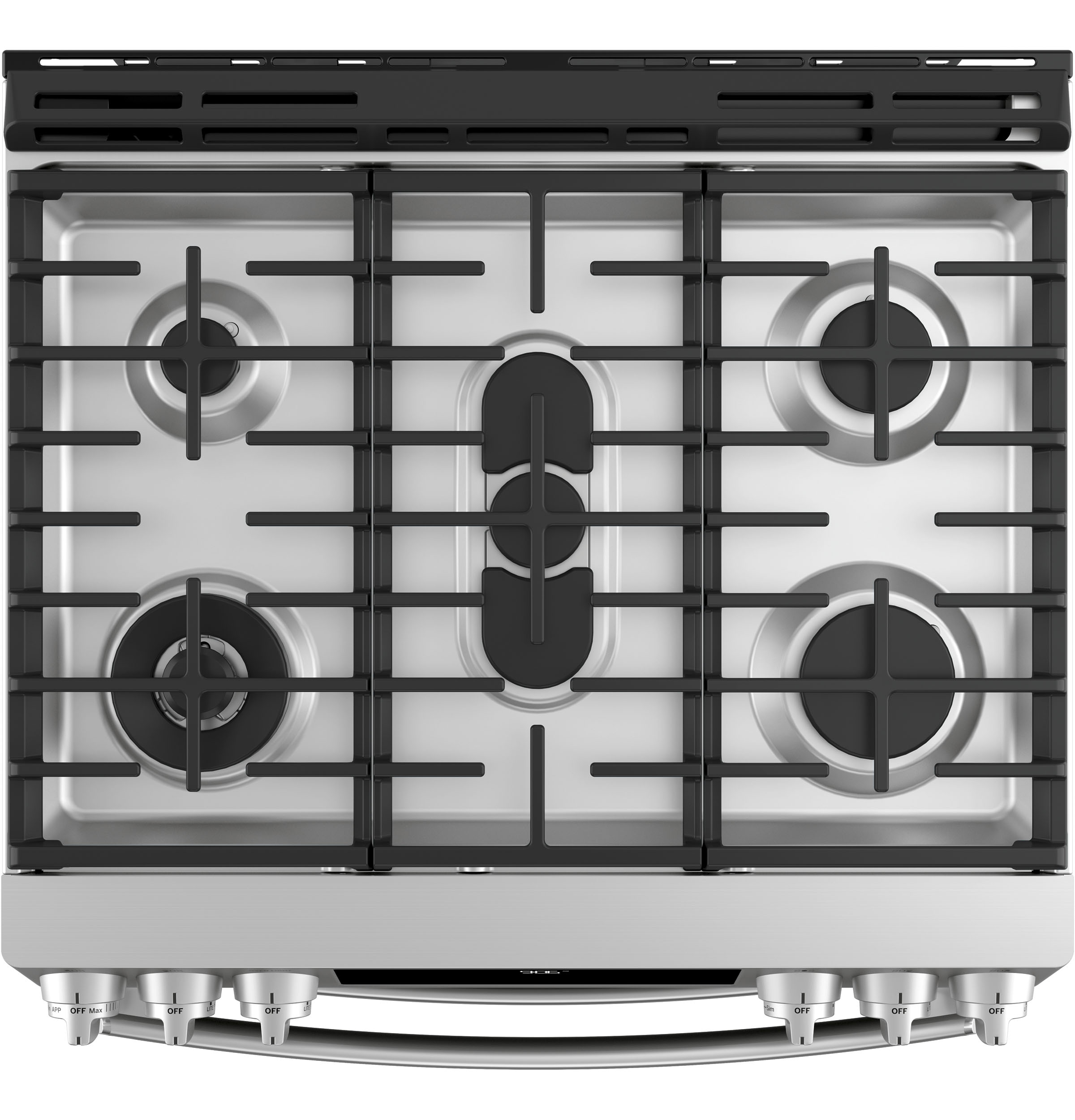

Dual purpose center burner

• Cook your way with a round burner for steaming broccoli and an oval burner for griddling sandwiches

Anywhere control with remote notifications

• Save time by conveniently preheating and monitoring your oven from anywhere using the GE Appliances Kitchen app

Chef Connect

• Three options with a single touch. For instant convenience, choose when to automatically sync clocks and the range elements with the microwave's surface light and vent

True Convection

• Achieve delicious results from a third heating element and fan combination

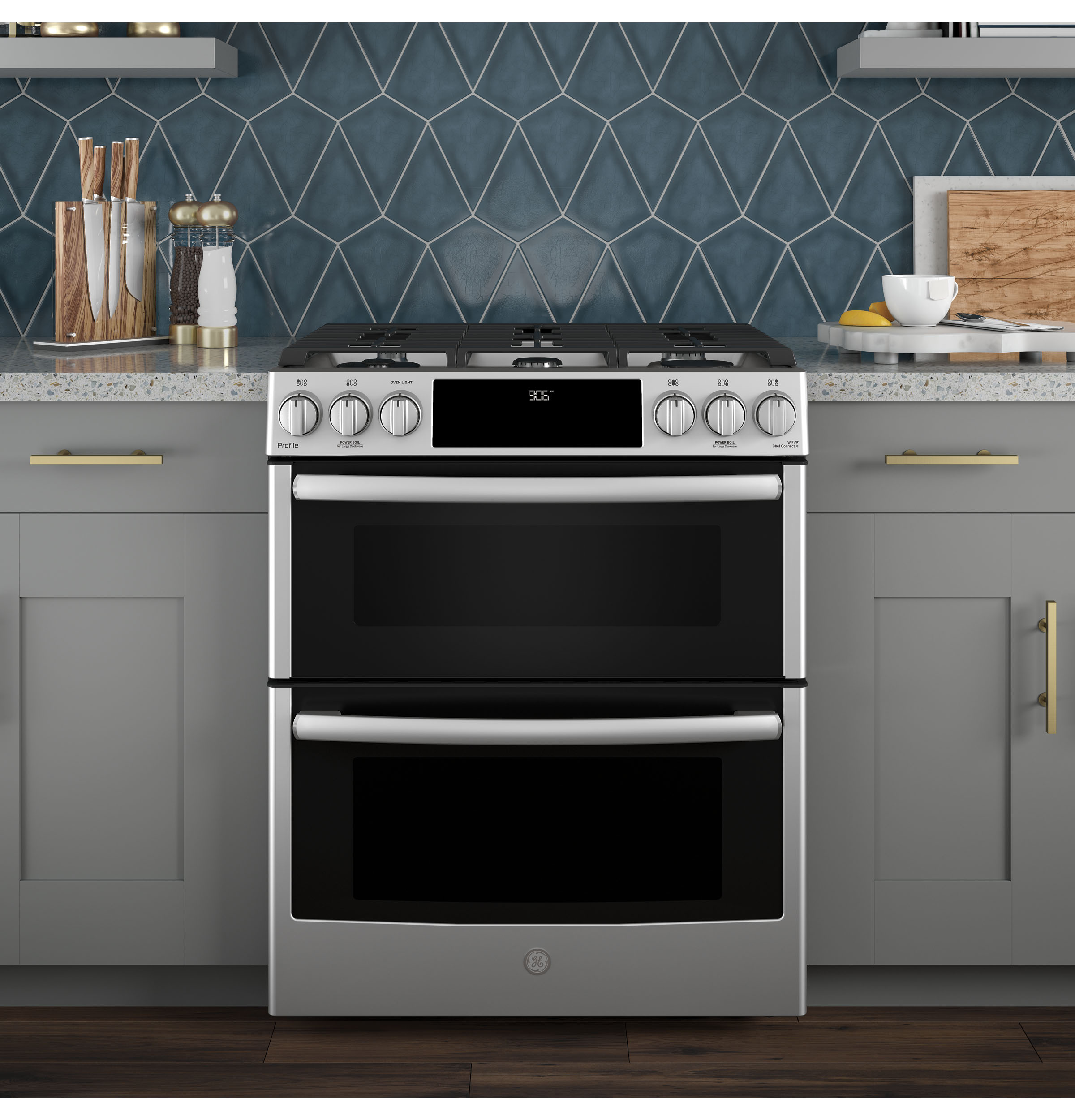

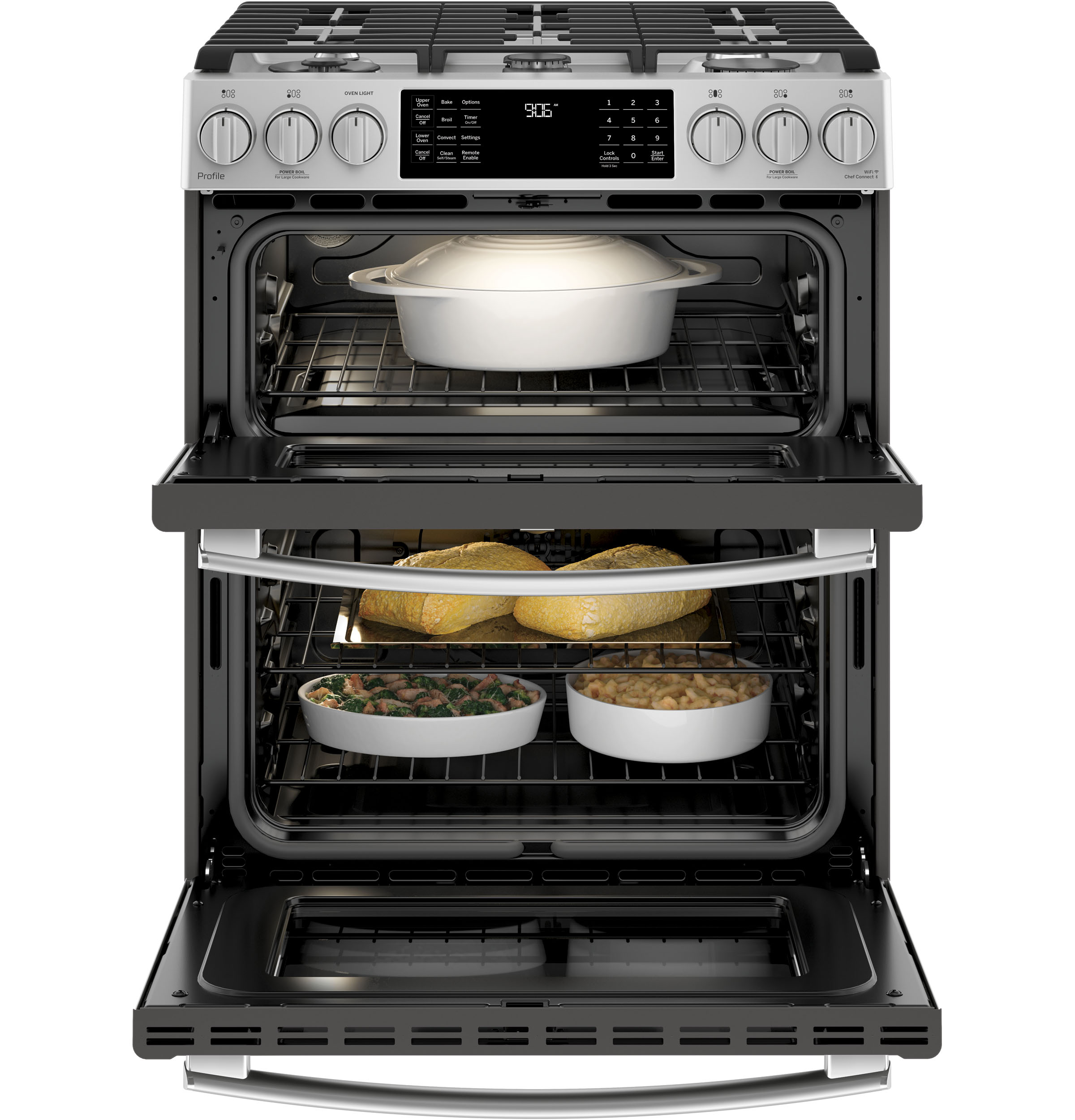

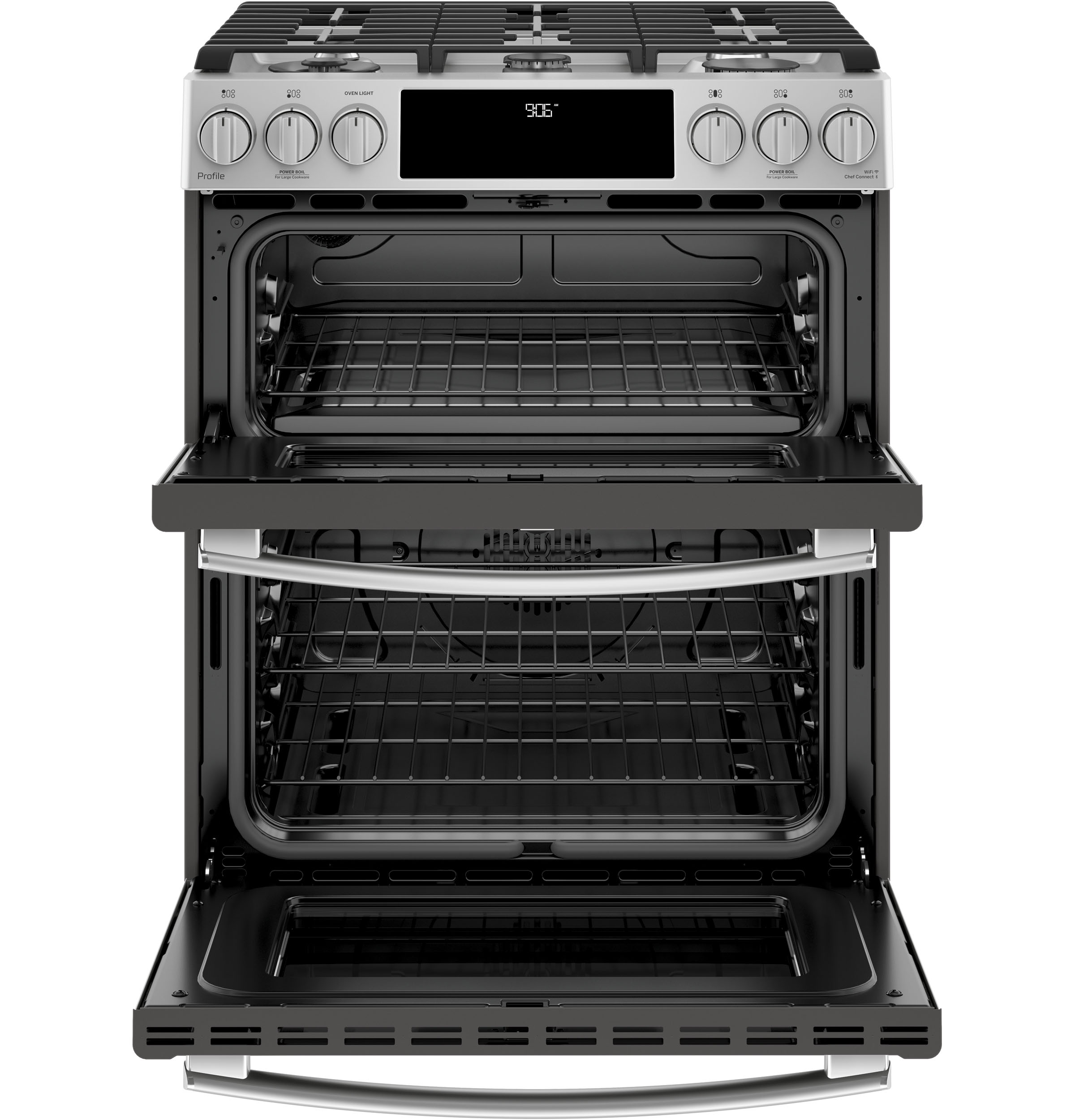

6.7 cu. ft. total double oven capacity

• An upper everyday oven preheats quickly while the larger lower oven is perfect for dinner parties and large meals

Never-scrub oven racks

• Long-lasting racks look great and can be cleaned at the same time as the oven

Precision temperature probe

• Monitor the progress of roasts and meats through the SmartHQ app on your smartphone for accurately cooked results

Self-clean oven with optional Steam Clean

• Let your oven do the cleaning for you with two ways to eliminate baked on messes

ACCESSORIES

Optional Accessories : WB48X21543 Roller Rack

Center Grate : Included

LP Conversion Kit : Included

Trim Kit : JXFILLR1SS, Optional

APPEARANCE

Cooktop Burner Grate Color : Matte Black

Handle : Designer Style, Stainless Steel

Installation : Flush Appearance, Free-standing cut-out

Oven Door Features : Big View Oven Window

Control Knobs : Stainless Steel

Color Appearance : Stainless Steel

CAPACITY

Total Capacity (cubic feet) : 6.7 cu ft

Capacity (Cu. Ft.) : 2.4 Upper / 4.3 Lower

FEATURES

Cooking System : True European Convection

Ignition System : Electronic

Burner - Right Rear : 9,500 BTU

Oven Interior : 1 Incandescent Light, Black

Oven Control Features : Audible Preheat Signal, Auto Oven Shut-Off, Auto Recipe Conversion, Certified Sabbath Mode, Control Lock Capability, Delay Bake Option, Electronic Clock & Kitchen Timer, Hi / Low Broil, In-Oven Broiling, Temperature Probe

Oven Rack Features : 1 Self-Clean Oven Rack (Upper), 2 Self-Clean Oven Racks (Lower)

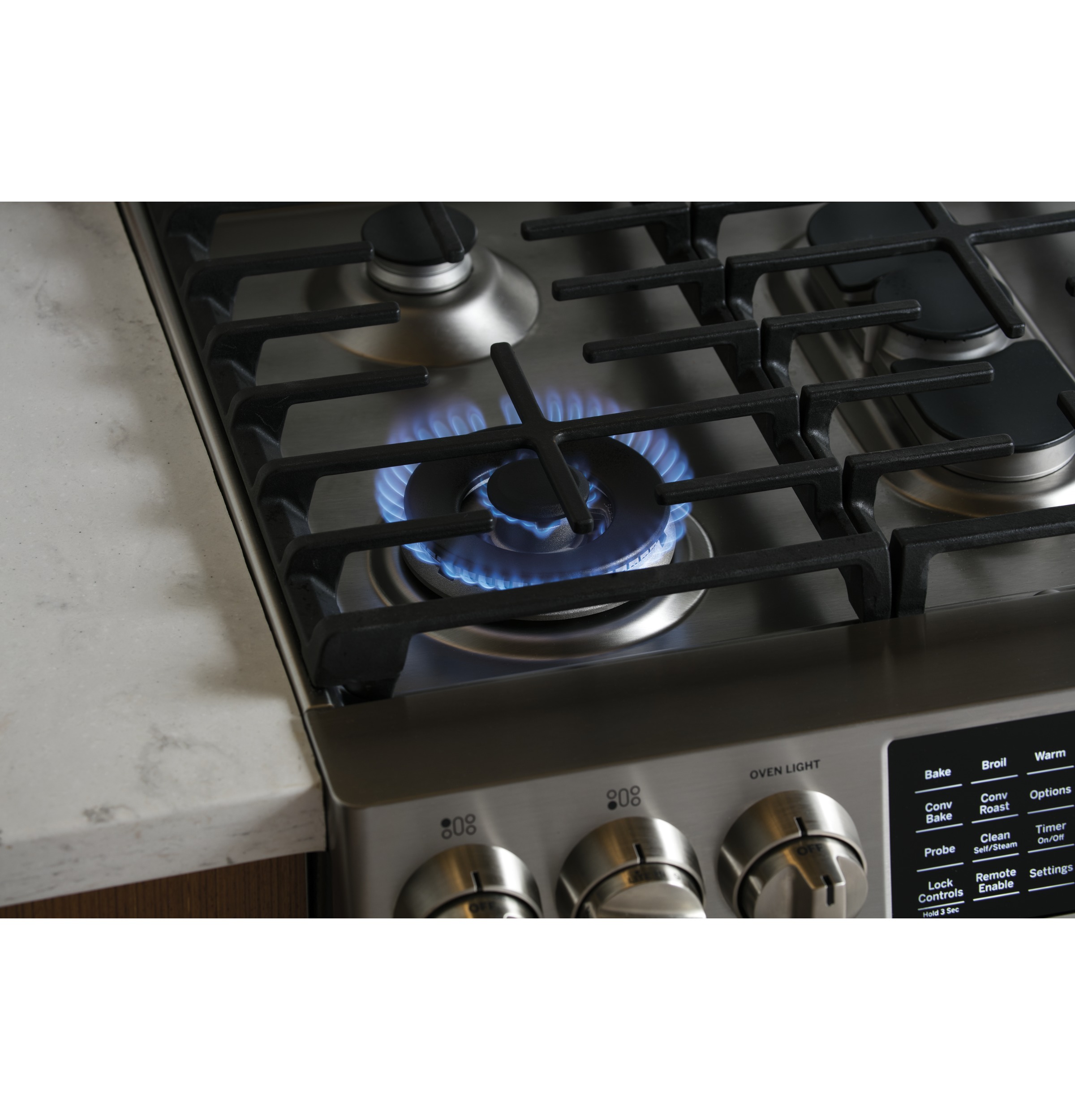

Burner - Left Rear : 5,000 BTU Precise Simmer

Oven Cleaning Type : Self-Clean with Steam Clean Option

Griddle : Reversible Integrated Grill/Griddle (Included)

Connected Capabilities : Amazon Alexa, DiGiorno, Drop, IFTTT, Innit, Sonos, The Google Assistant

Product Type : Slide-In Double Oven

Cooktop Type : Continuous Grates with Griddle

Cooktop Burner Grate Material : Heavy Cast Iron

Fuel Type : Natural Gas

Burner - Center : 9,500 BTU Dual Oval

WiFi Connect : Built-In

Control Location : Front

Cooktop Burner Grate Features : Continuous Grates

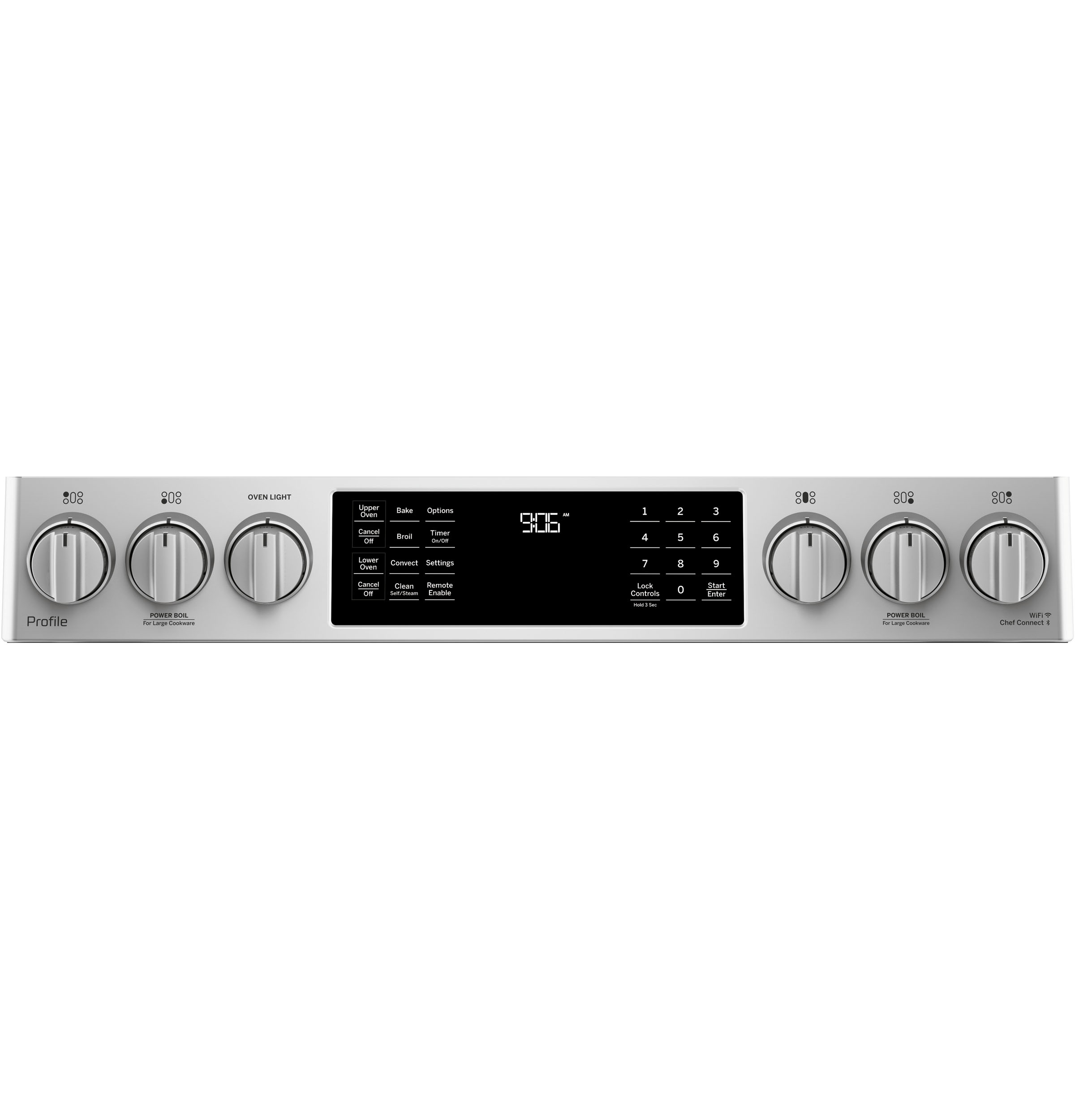

Control Type : Electronic Touch

Burner - Left Front : 21,000 BTU Tri-ring Burner

Cooking Technology : Traditional Upper; Convection Lower

Configuration : Double Oven Range

Oven Cooking Modes : Baked Goods - Both Ovens, Convection Bake, Convection Roast, Frozen Pizza Multi Rack - Lower Oven, Frozen Pizza Single Rack - Lower Oven (No Preheat), Frozen Snacks Multi Rack - Both Ovens, Frozen Snacks Single Rack- Lower Oven (No Preheat), Proof (Lower Oven), Warming (Both Ovens)

Cooktop Burner Type : Sealed

Burner - Right Front : 15,000 BTU

Cooktop Surface : Deep Recessed, Edge-to-Edge, Stainless Steel

Oven Rack Positions (Single or Upper/Lower) : 6

Self-Clean Oven Door Lock : Automatic

FILTER

App Filter - Cabinet Width : Cooking 30 in. (Standard)

App Filter - Control Type : Electronic touchpad

App Filter - Product Type : Ranges Slide-In Double Oven

App Filter - Fuel Type : Gas

App Filter - Cooking Technology : Convection

App Filter - Tri-Ring Burner : Yes

App Filter - Convection : Yes

App Filter - Edge-to-Edge Cooktop : Yes

App Filter - Cleaning Type : Steam and Self-Clean

App Filter - Cooktop Type : Continuous Grates with Griddle

App Filter - WiFi Connect : Built-In

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's) : (1) 21.0 (1) 15.0; (1) 9.5/8.0; (1)5.0

Volts/Hertz/Amps : 120v; 60Hz; 15A

Top Burner BTU Rating - LP (000's BTU's) : (1) 18.0; (1) 15.0; (1) 9.5/8.0; (1) 5.0

Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) : 7.0 / 120V Upper; 14.0 / 16.5 Lower

Bake/Broiler BTU Rating - LP (000's BTU's) : 7.0 / 120V - Upper; 13.5 / 13.5 - Lower

WARRANTY

Parts Warranty : Limited 1-year entire appliance

Labor Warranty : Limited 1-year entire appliance

Warranty Notes : See written warranty for full details

WEIGHTS & DIMENSIONS

Net Weight : 271 lb

Depth Without Handle : 26.875 in

Height to Cooking Surface (in.) : 36 1/4 +/- 1/4

Cabinet Width : 30 in

Approximate Shipping Weight : 291 lb

Overall Width : 30 in

Overall Height : 36.5 in

Height to Top of Rear Vent Trim : 37.625 in

Overall Depth : 29.5 in

Depth with Door Open : 43.875 in

Oven Interior Dimensions (W x H x D) (in.) : 24 x 9-1/2 x 19-1/8 - Upper; 24 x 15 x 20-5/8 - Lower
