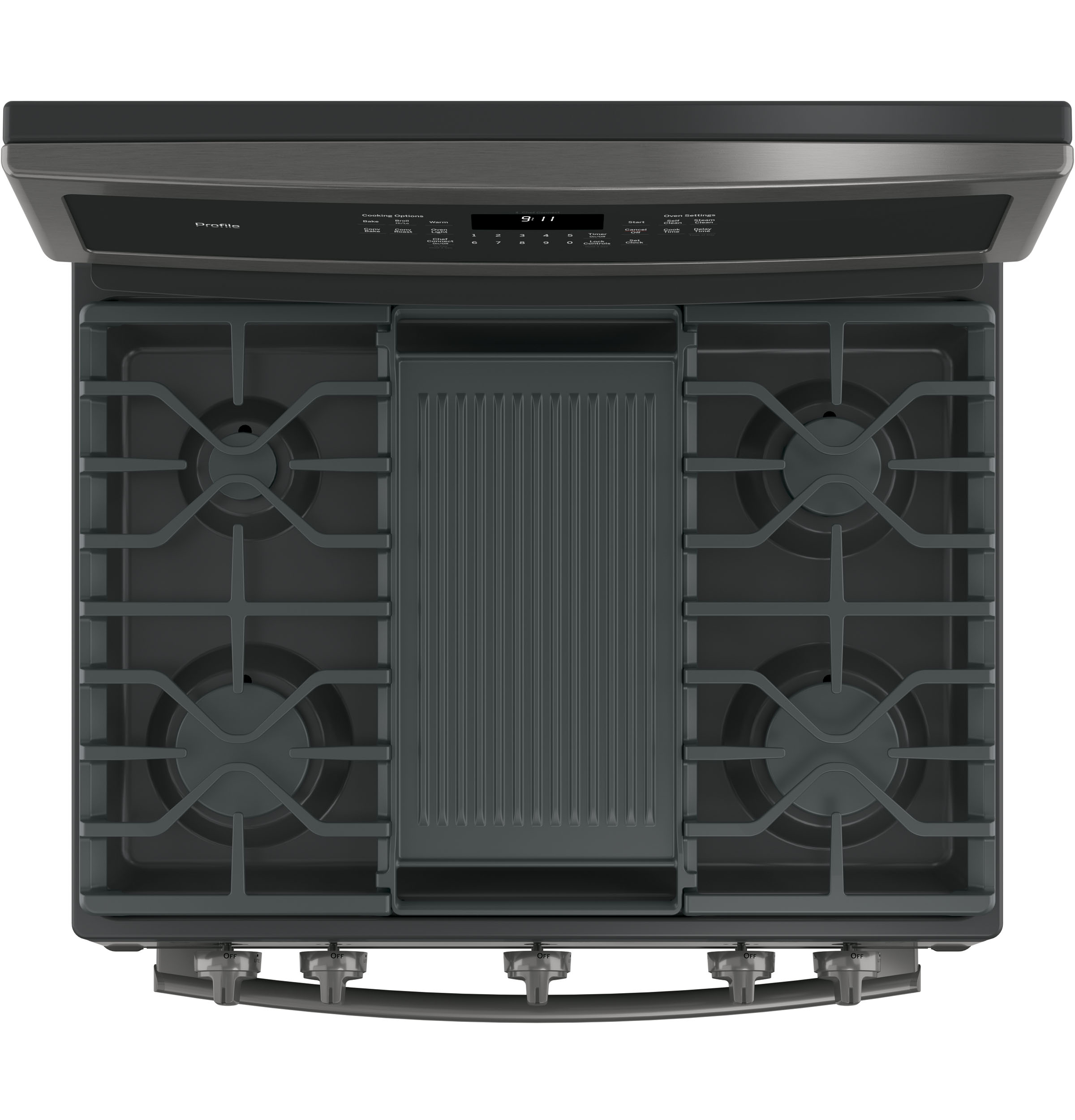

Edge-to-edge cooktop

• A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner

Extra-large, integrated reversible cast iron grill/griddle

• Enjoy ultimate cooking versatility. Cook up to six grilled cheeses on the industry's largest integrated griddle, and then flip it over to grill your favorite foods

Two extra-large 18K Power Boil burners

• Get twice the high-heat cooking power with two up-front extra-large burners

18,000 BTU Power Boil burner

• Boil water fast with intense heat from this 18,000 BTU burner

Gas convection oven

• Circulates heat for high-quality results

Chef Connect

• Three options with a single touch. For instant convenience, choose when to automatically sync clocks and the range burners with the microwave's surface light and vent.

3 oven racks

• Enjoy extra oven space with three adjustable racks

Center oval burner

• Large oval fifth burner provides ideal coverage for cooking with the reversible grill/griddle

Self-clean with Steam Clean option

• Clean your oven the way you want

Heavy duty, dishwasher safe grates

• Easily and safely clean grates in the dishwasher or place in the bottom of the self-clean oven

Black gloss oven interior

• Enjoy a clean and sleek appearance

5.6 cu. ft. oven capacity

• Enough room to cook an entire meal at once

ACCESSORIES

Optional Accessories : WB48X21543 Roller Rack

Center Grate : Optional

Griddle Accessory : Reversible Integrated Grill/Griddle (Included)

LP Conversion Kit : Included

APPEARANCE

Cooktop Burner Grate Color : Matte Black

Oven Door Features : Big View Oven Window

Handle Design : Designer Style

Handle Color : Black Stainless

Control Knobs : Black Stainless

Color Appearance : Fingerprint Resistant Black Stainless

CAPACITY

Total Capacity (cubic feet) : 5.6 cu ft

FEATURES

Ignition System : Electronic

Burner - Right Rear : 9,500 BTU

Oven Control Features : Audible Preheat Signal, Auto Self Clean, Certified Sabbath Mode, Chef Connect

Oven Rack Features : 3 Oven Racks

Burner - Left Rear : 5,000 BTU Precise Simmer

Oven Cleaning Type : Self-Clean with Steam Clean Option

Griddle : Reversible Integrated Grill/Griddle (Included)

Product Type : Free-Standing Single Oven

Cooktop Type : Continuous Grates with Griddle

Cooktop Burner Grate Material : Heavy Cast Iron

Fuel Type : Natural Gas

Burner - Center : 10,000 BTU Oval

Interior Oven Light : 1 Auto Incandescent

Control Type : Electronic Touch

Burner - Left Front : 18,000 BTU Power Boil

Drawer Type : Storage

Cooking Technology : Convection

Configuration : Range with Storage Drawer

Oven Cooking Modes : Convection Bake, Convection Roast, Warming

Cooktop Burner Type : Sealed

Burner - Right Front : 18,000 BTU Power Boil

Cooktop Surface : Edge-to-Edge, Gray, One-Piece Upswept

FILTER

App Filter - Cabinet Width : Cooking 30 in. (Standard)

App Filter - Control Type : Electronic touchpad

App Filter - Product Type : Ranges Free-Standing Single Oven

App Filter - Fuel Type : Gas

App Filter - Cooking Technology : Convection

App Filter - Convection : Yes

App Filter - Edge-to-Edge Cooktop : Yes

App Filter - Drawer Type : Storage

App Filter - Cleaning Type : Steam and Self-Clean

App Filter - Cooktop Type : Continuous Grates with Griddle

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's) : (2) 18.0; (1) 10.0; (1) 9.5; (1) 5.0

Volts/Hertz/Amps : 120v; 60Hz; 15A

Top Burner BTU Rating - LP (000's BTU's) : (1) 18.0; (1) 5.0; (1) 18.0; (1) 9.5; (1) 8.0

Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) : 16.0 Bake / 13.5 Broiler

Bake/Broiler BTU Rating - LP (000's BTU's) : 16.0 Bake / 12.0 Broiler

WARRANTY

Parts Warranty : Limited 1-year entire appliance

Labor Warranty : Limited 1-year entire appliance

Warranty Notes : See written warranty for full details

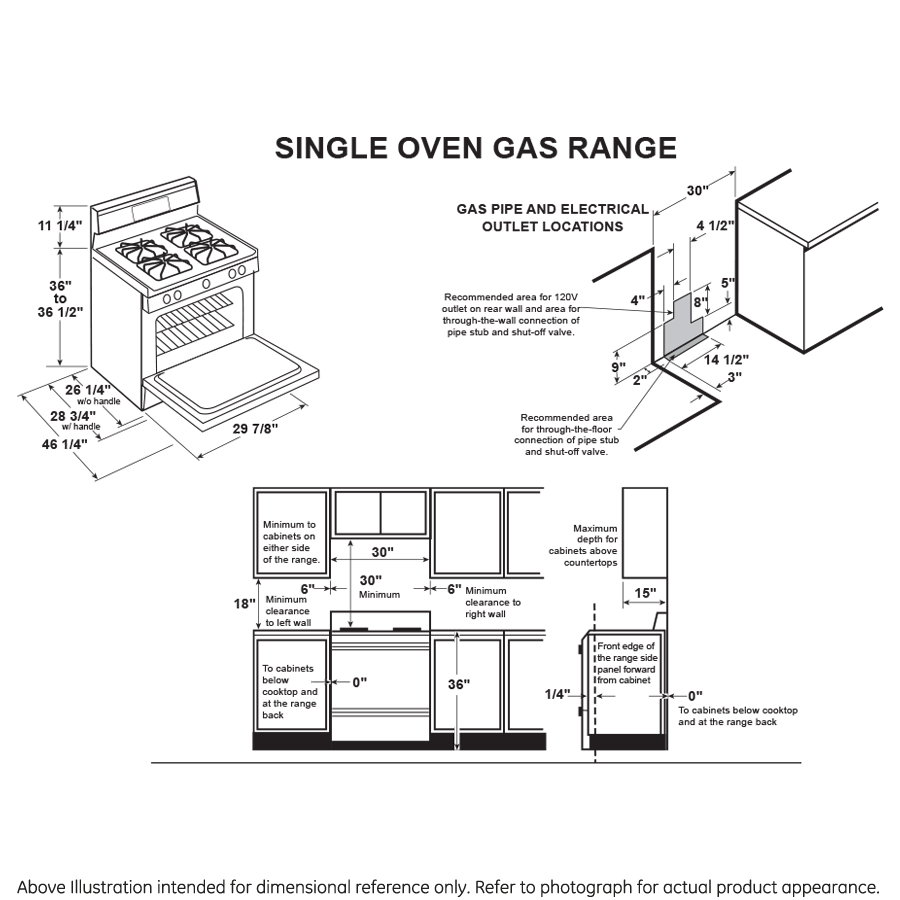

WEIGHTS & DIMENSIONS

Net Weight : 205 lb

Depth Without Handle : 26.25 in

Height to Cooking Surface (in.) : 36 - 36 1/2

Cabinet Width : 30 in

Approximate Shipping Weight : 225 lb

Overall Width : 30 in

Overall Height : 47.25 in

Overall Depth : 28.75 in

Depth with Door Open : 46.25 in

Oven Interior Dimensions (W x H x D) (in.) : 24 x 19-1/2 x 20-5/8

• Quick Specs

• Installation Instructions

• Use and Care Manual

• LP Conversion Kit

• Installation Instructions

• LP Conversion Kits

• Quick Specs

• Use and Care Manual
