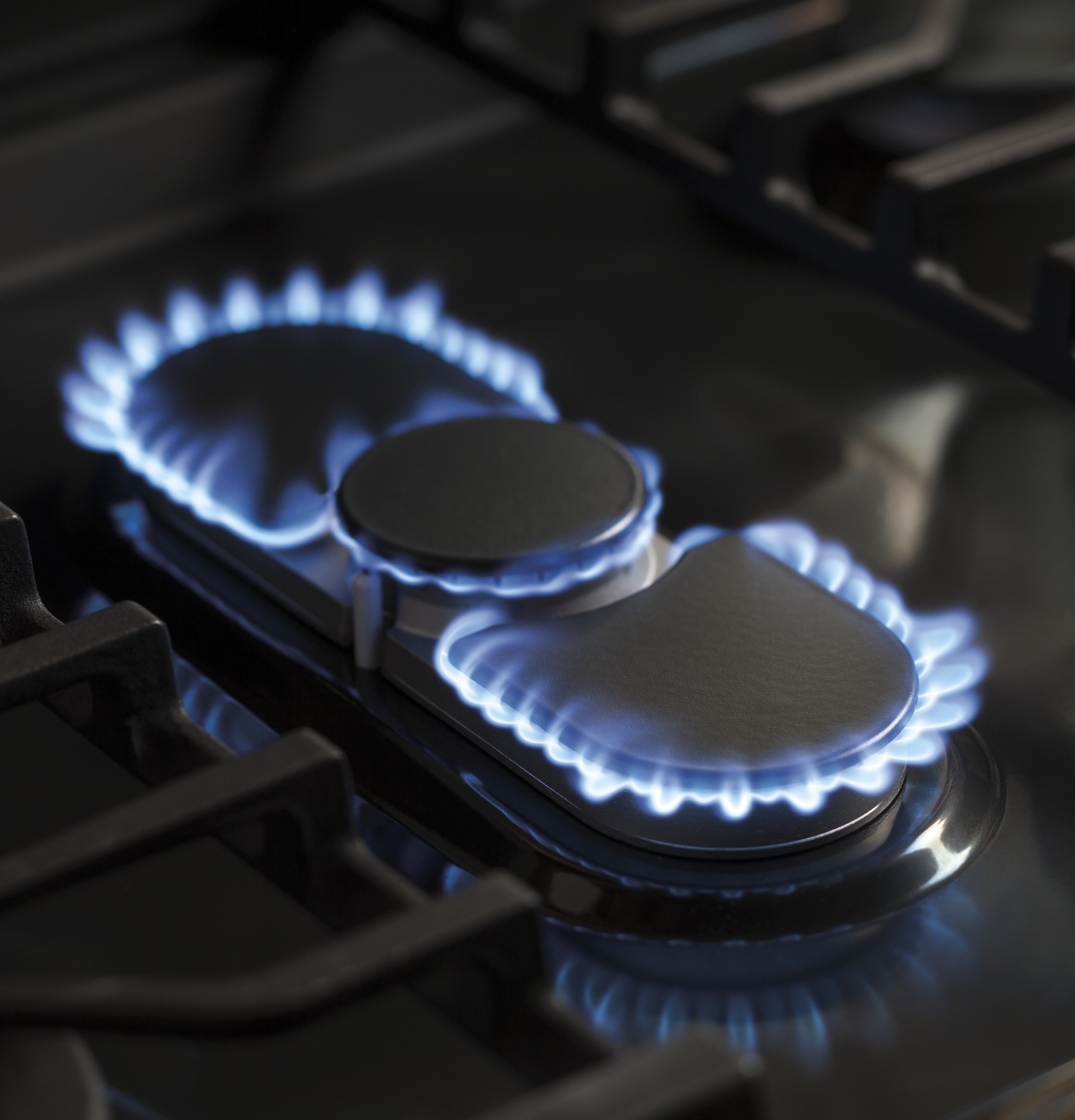

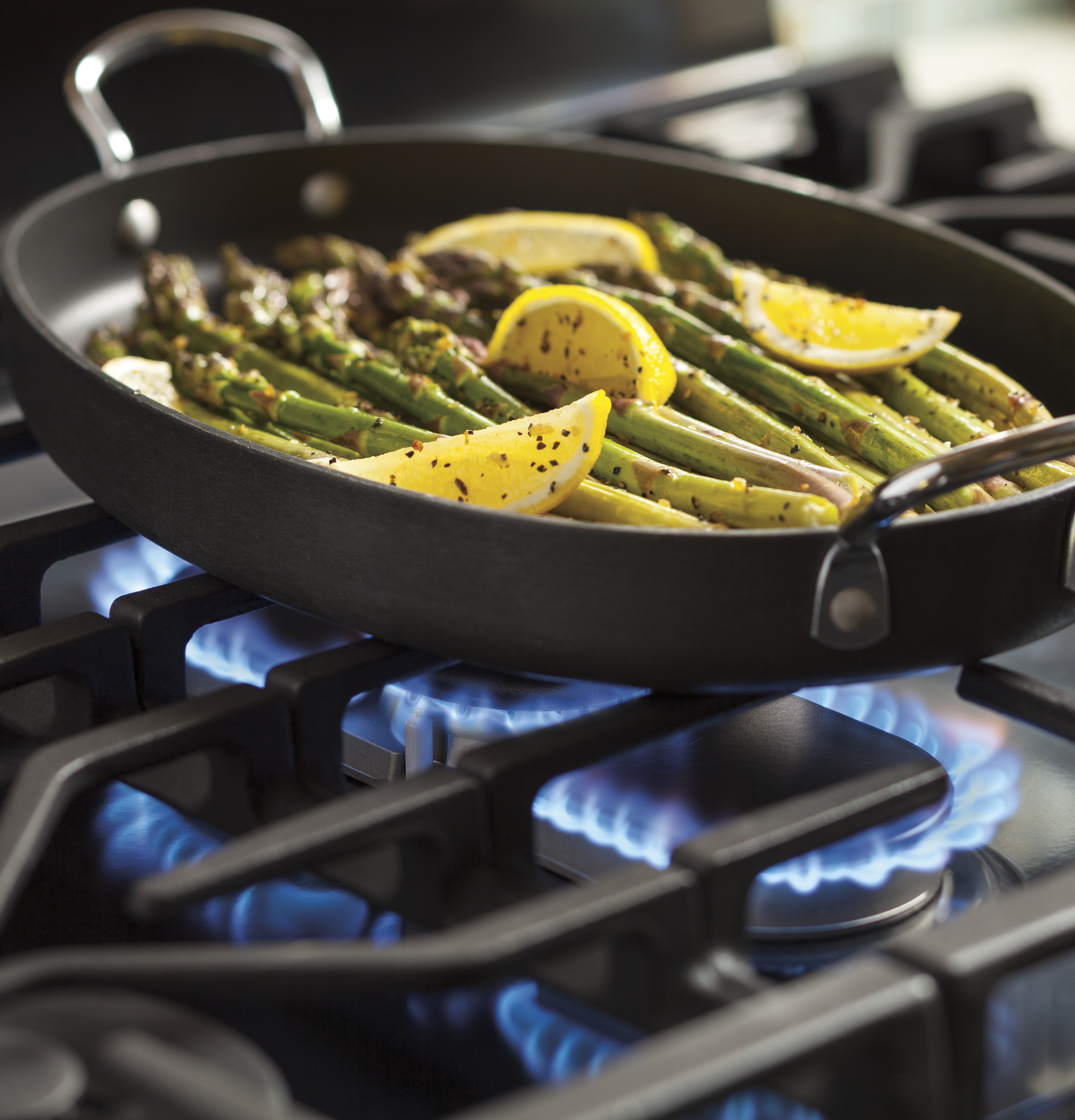

• Cook with anything from grills and griddles to oversized pots with the industry’s first combination oval/round burner

• Wirelessly control oven functions from your smartphone

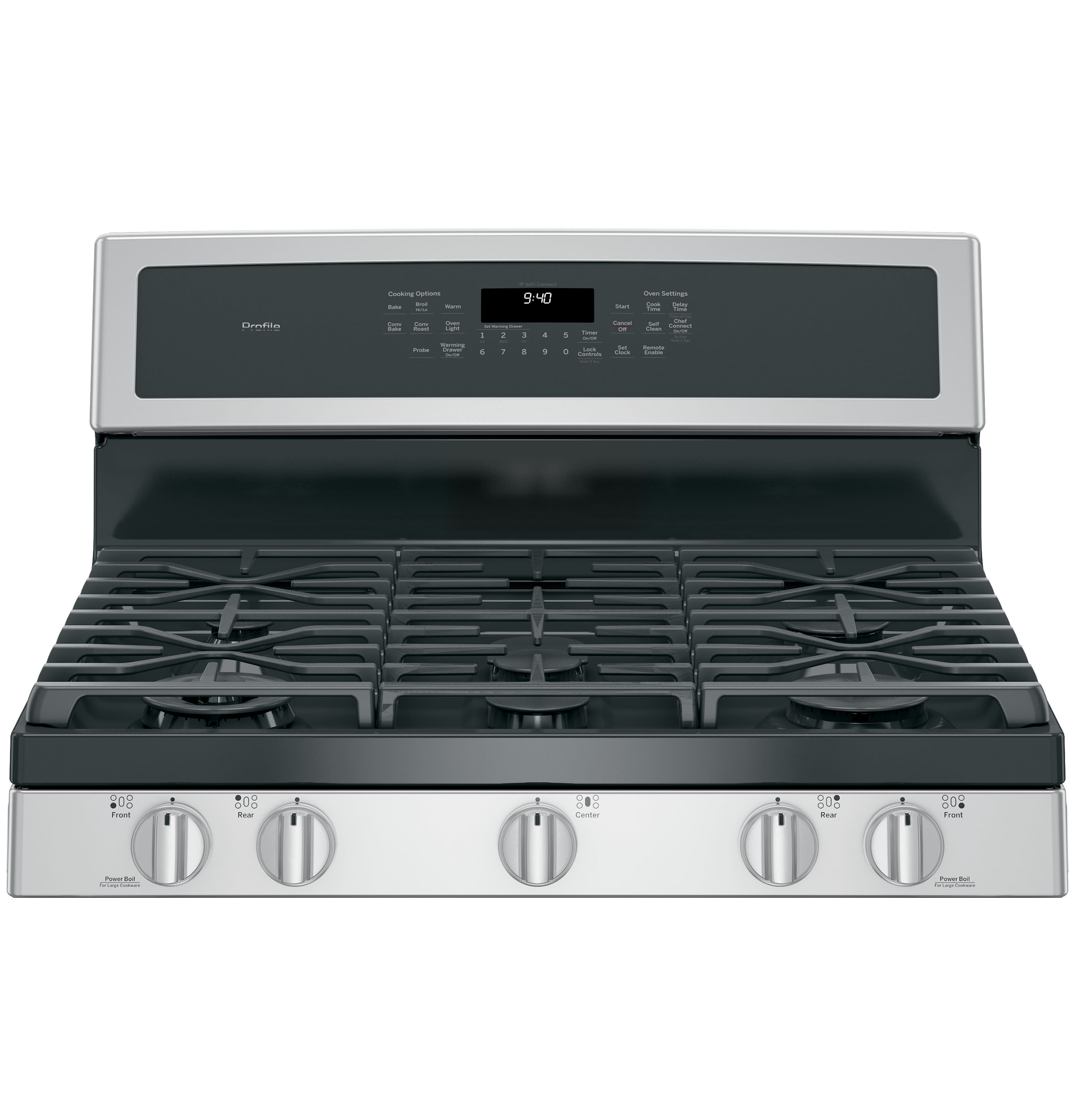

• A large, seamless surface makes it easy to wipe away messes

• Enjoy perfectly even results without turning the pan

• Offers the flexibility of three different burners

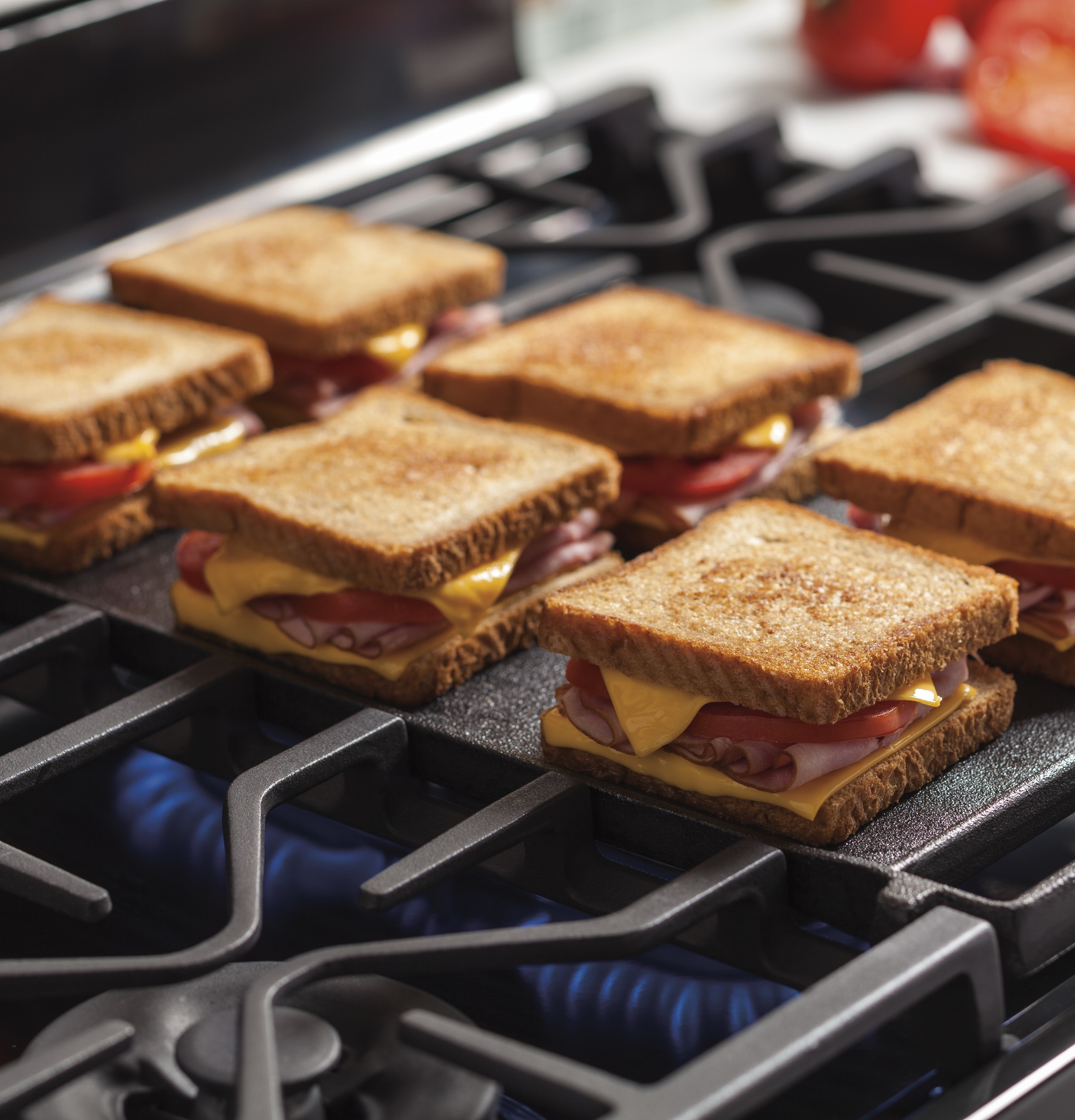

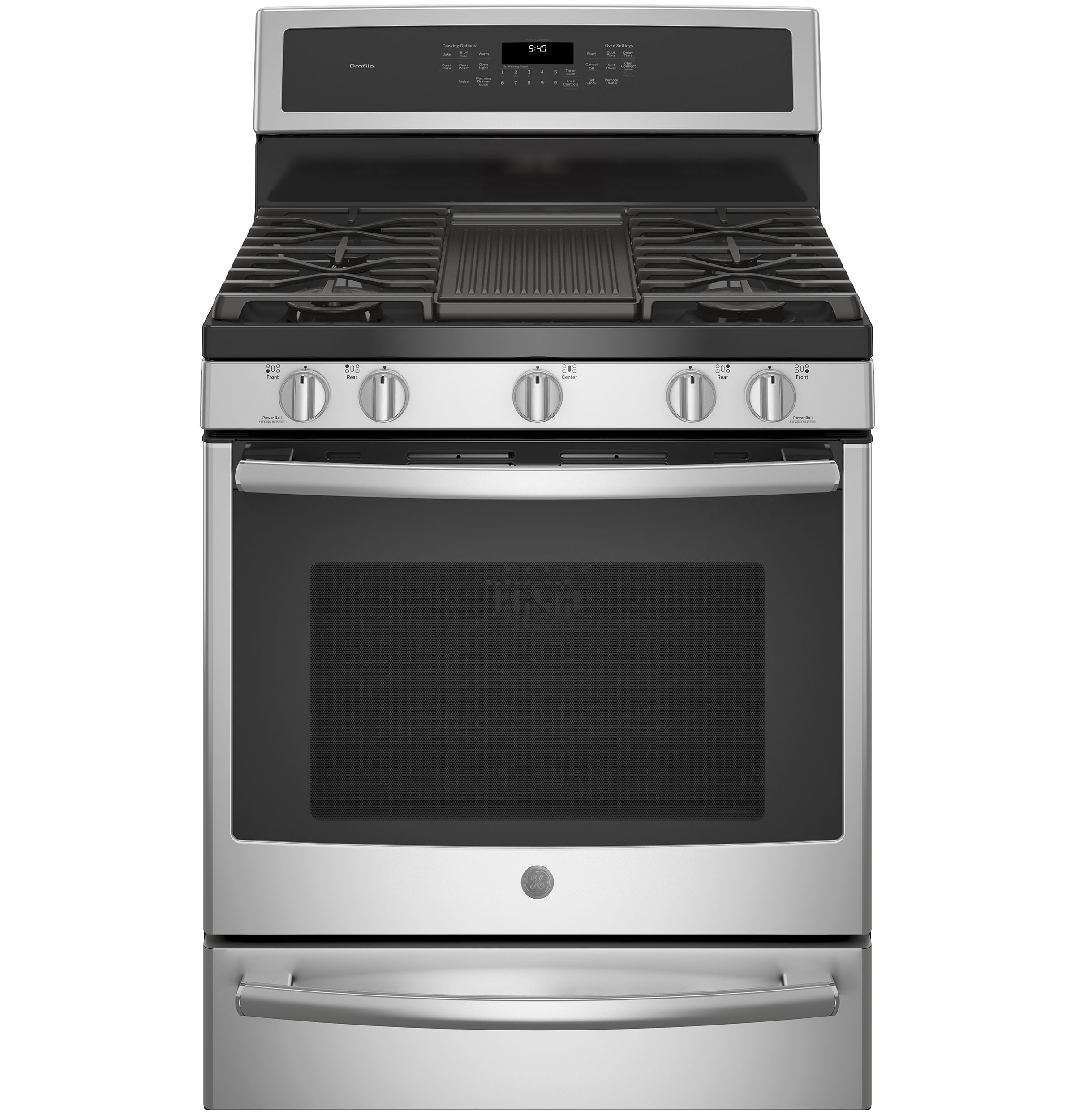

• Enjoy ultimate cooking versatility. Cook up to six grilled cheeses on the industry's largest integrated griddle, and then flip it over to grill your favorite foods

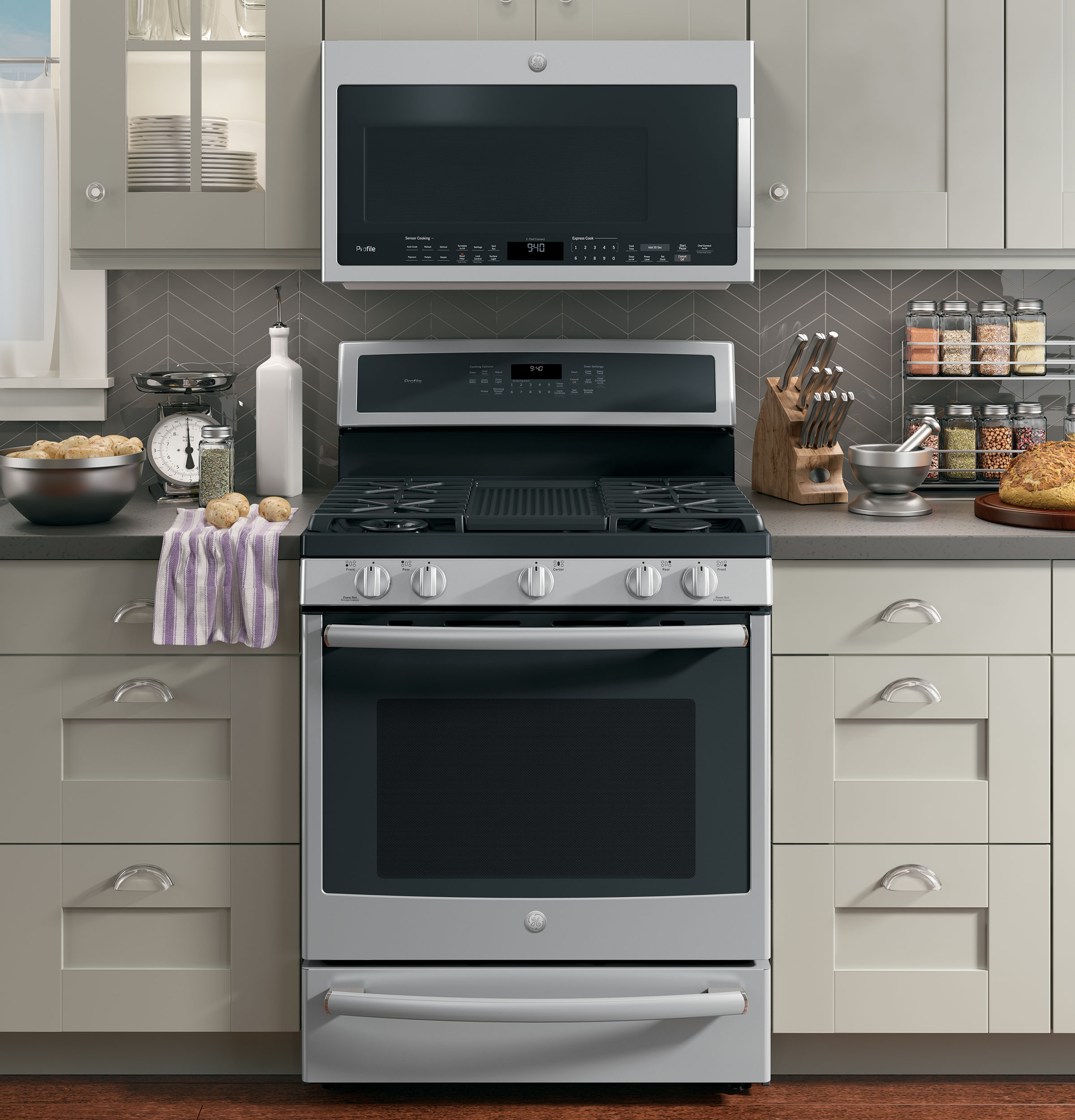

• Three options with a single touch. For instant convenience, choose when to automatically sync clocks and the range burners with the microwave's surface light and vent.

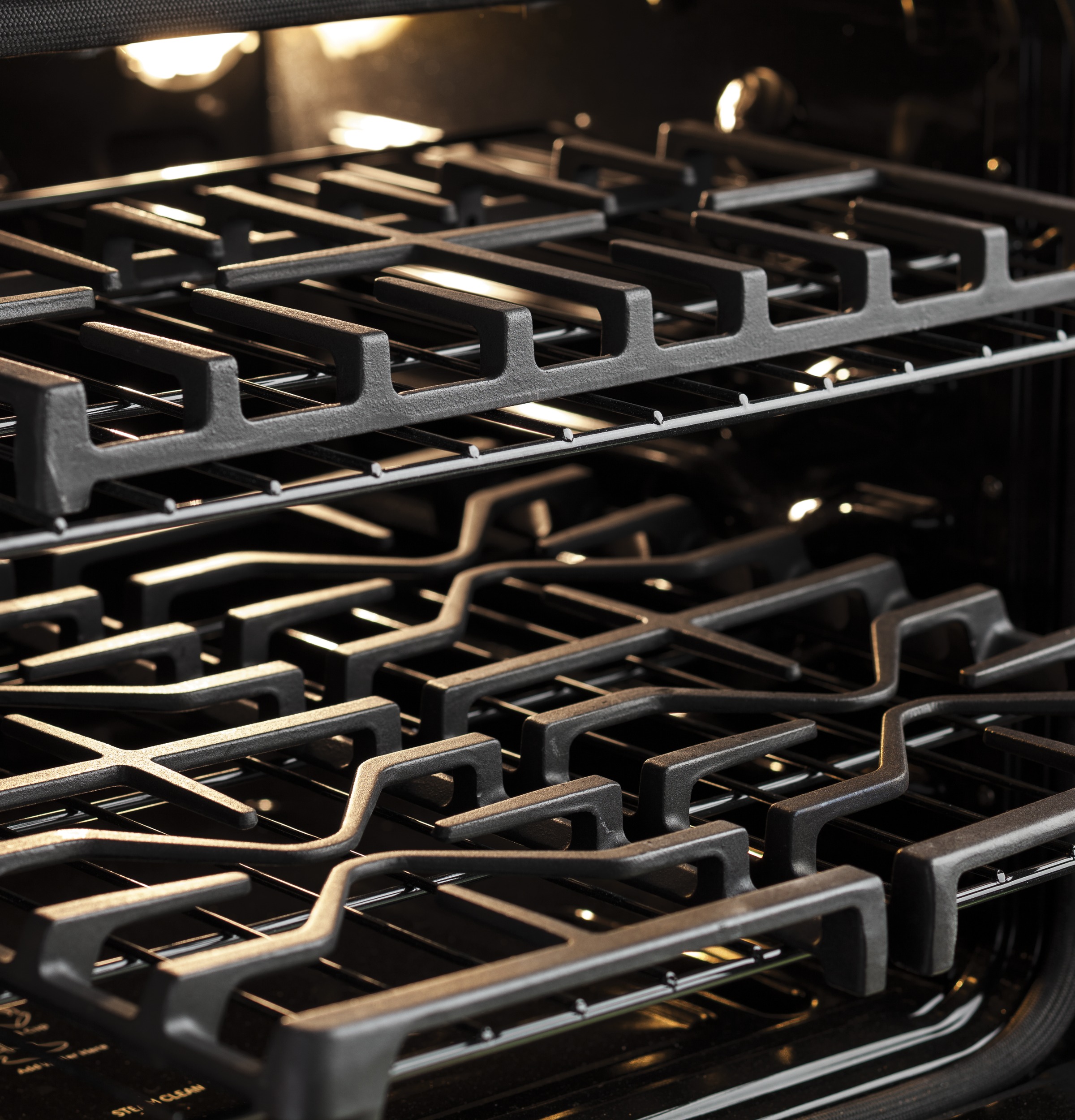

• Easily access items with a rack that glides smoothly

• Cleans the oven cavity without the need for scrubbing

• Easily clean grates by placing them in the oven during the self-clean cycle

• Delicate foods don’t burn with low, even heat

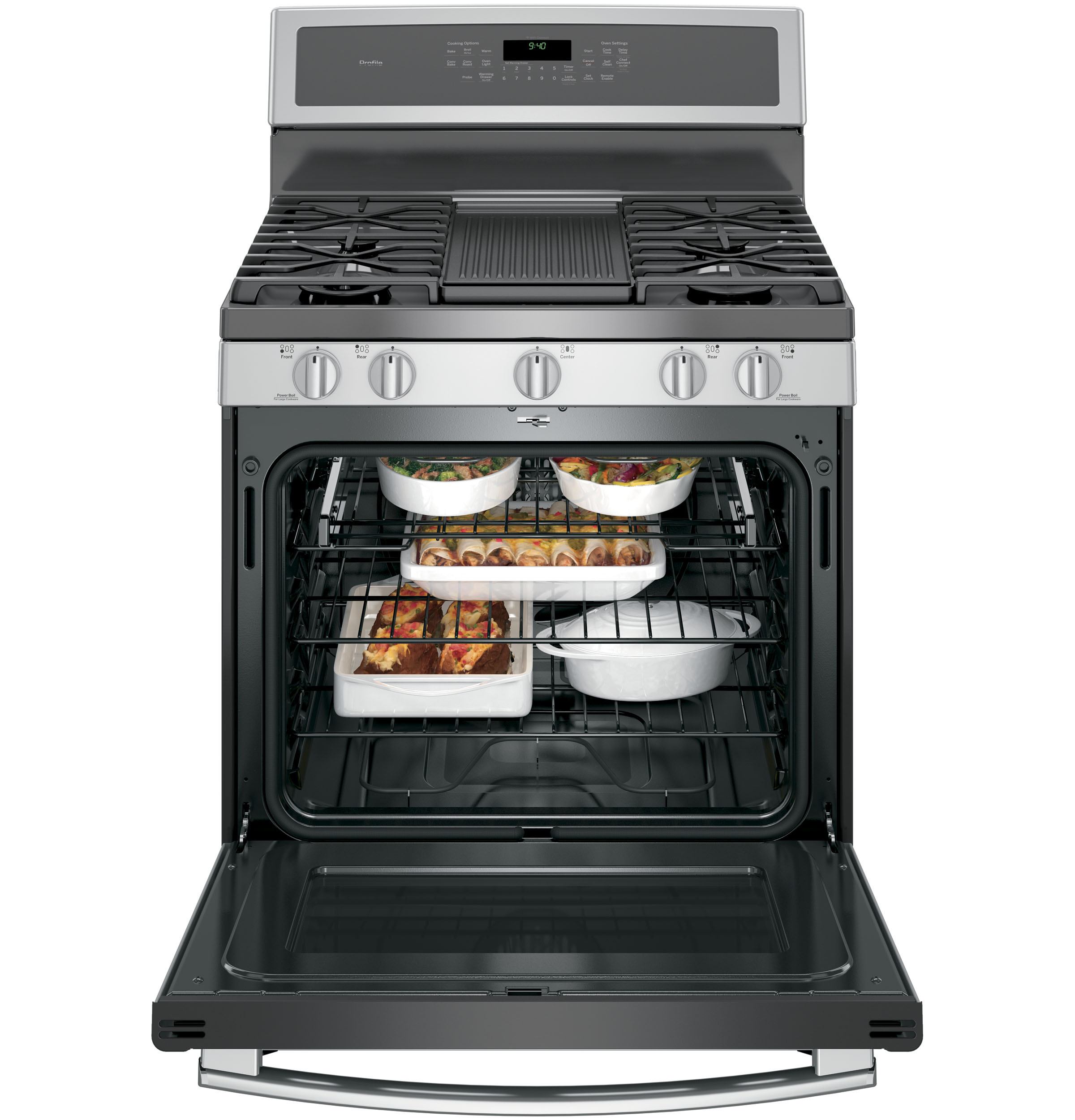

• Enough room to cook an entire meal at once

• Enjoy a clean and sleek appearance

• Ensure meats are thoroughly and accurately cooked

• Utilizes both gas and electric elements

ACCESSORIES

Optional Accessories : WB48X20990 Roller Rack

Center Grate : Included

Griddle Accessory : Reversible Integrated Grill/Griddle (Included)

LP Conversion Kit : Included

APPEARANCE

Cooktop Burner Grate Color : Matte Black

Handle : Designer Style, Stainless Steel

Oven Door Features : Big View Oven Window

Control Knobs : Stainless Steel Appearance, Weighted

Color Appearance : Stainless Steel

CAPACITY

Total Capacity (cubic feet) : 5.6 cu ft

FEATURES

Ignition System : Electronic

Burner - Right Rear : 9,500 BTU

Oven Control Features : Audible Preheat Signal, Auto Recipe Conversion, Auto Self Clean, Certified Sabbath Mode, Chef Connect, Control Lock Capability, Temperature Probe

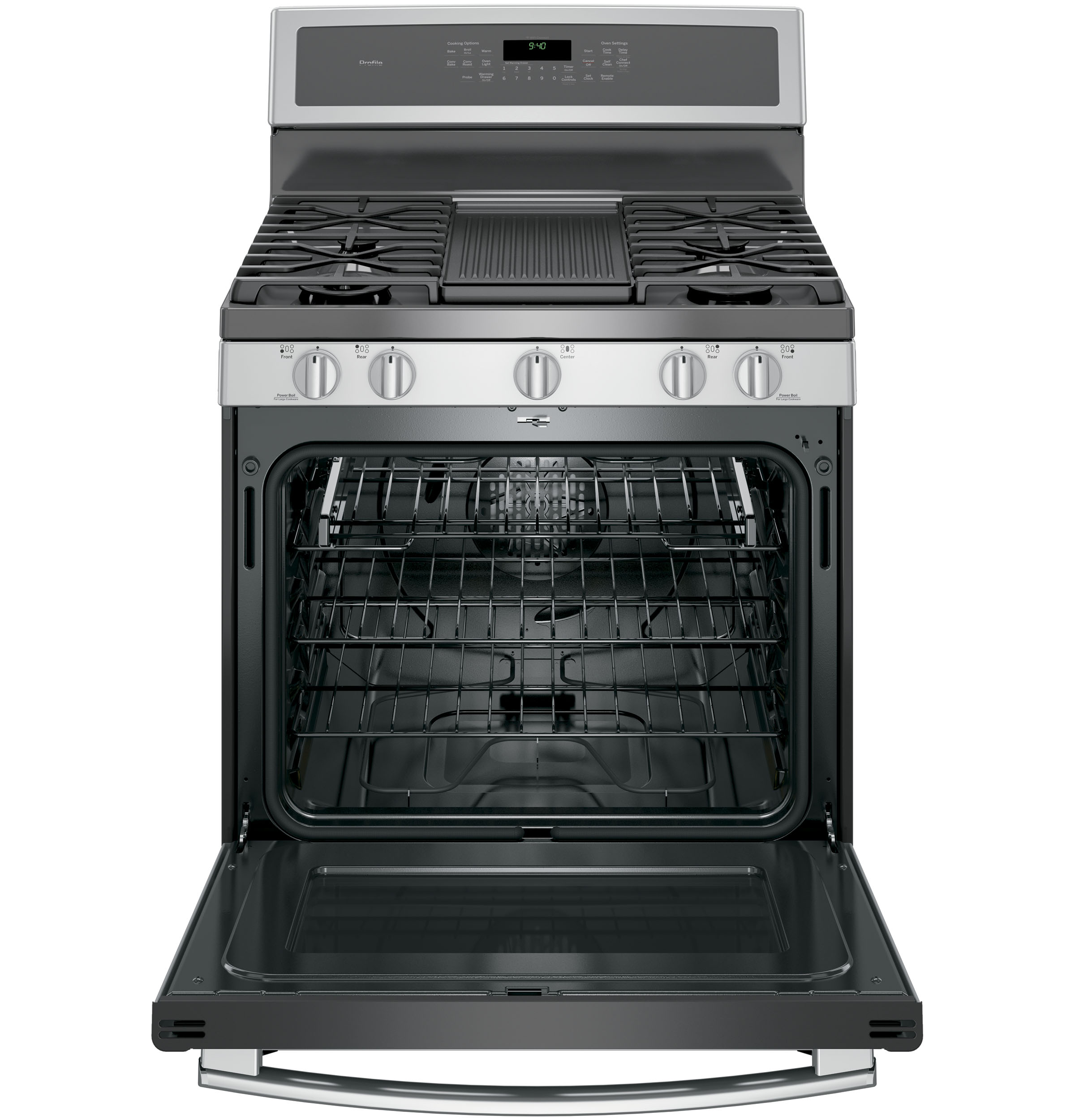

Oven Rack Features : 1 Self-Clean Roller Rack, 2 Flat Self-Clean Racks

Burner - Left Rear : 5,000 BTU Precise Simmer

Oven Cleaning Type : Self-Clean

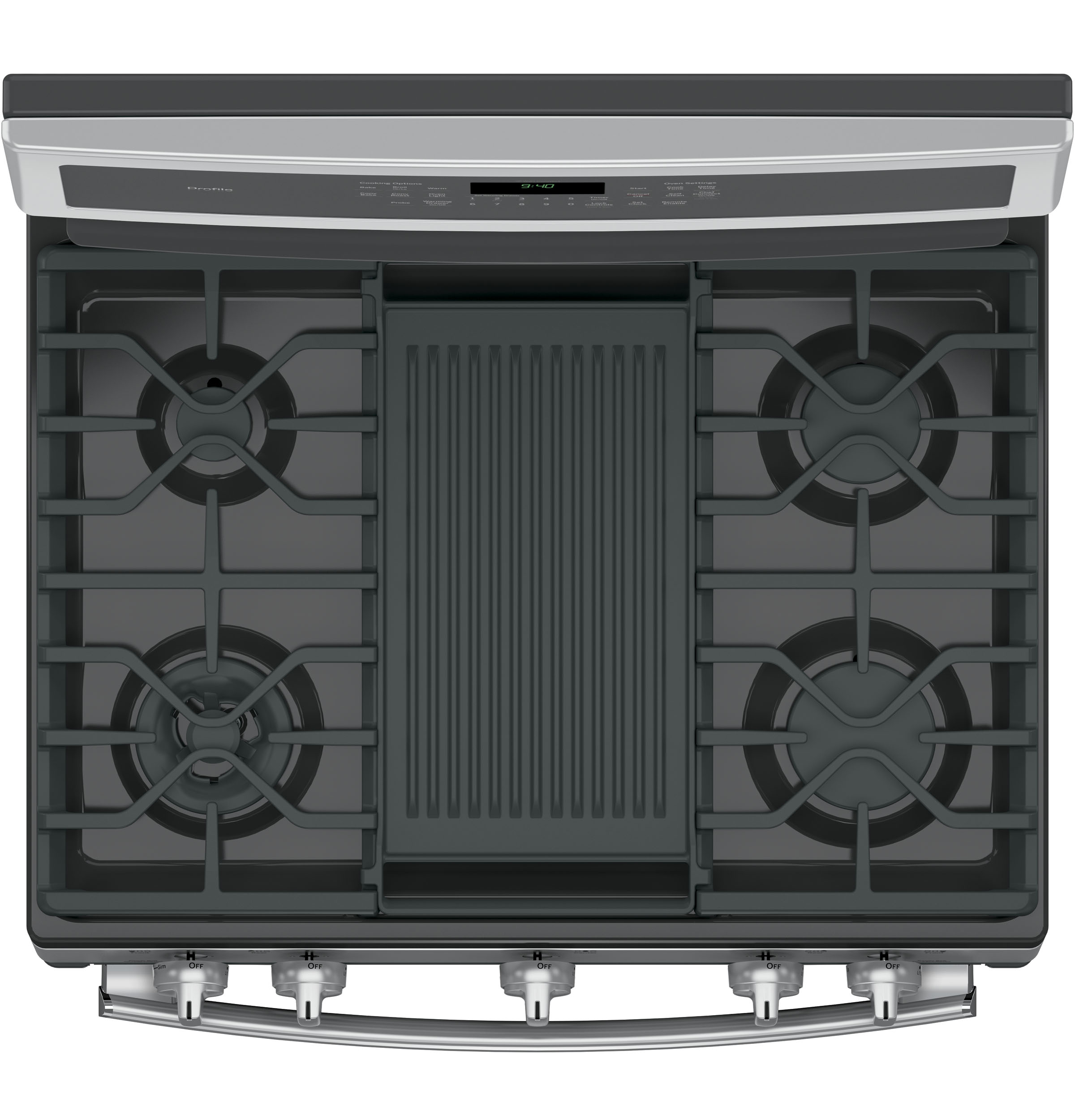

Griddle : Reversible Integrated Grill/Griddle (Included)

Connected Capabilities : Amazon Alexa, DiGiorno, Drop, IFTTT, Innit, Sonos, The Google Assistant

Product Type : Free-Standing Single Oven

Cooktop Type : Continuous Grates with Griddle

Cooktop Burner Grate Material : Heavy Cast Iron

Fuel Type : Natural Gas

Burner - Center : 10,000 BTU Dual Oval

Interior Oven Light : 1 Auto Incandescent

WiFi Connect : Built-In

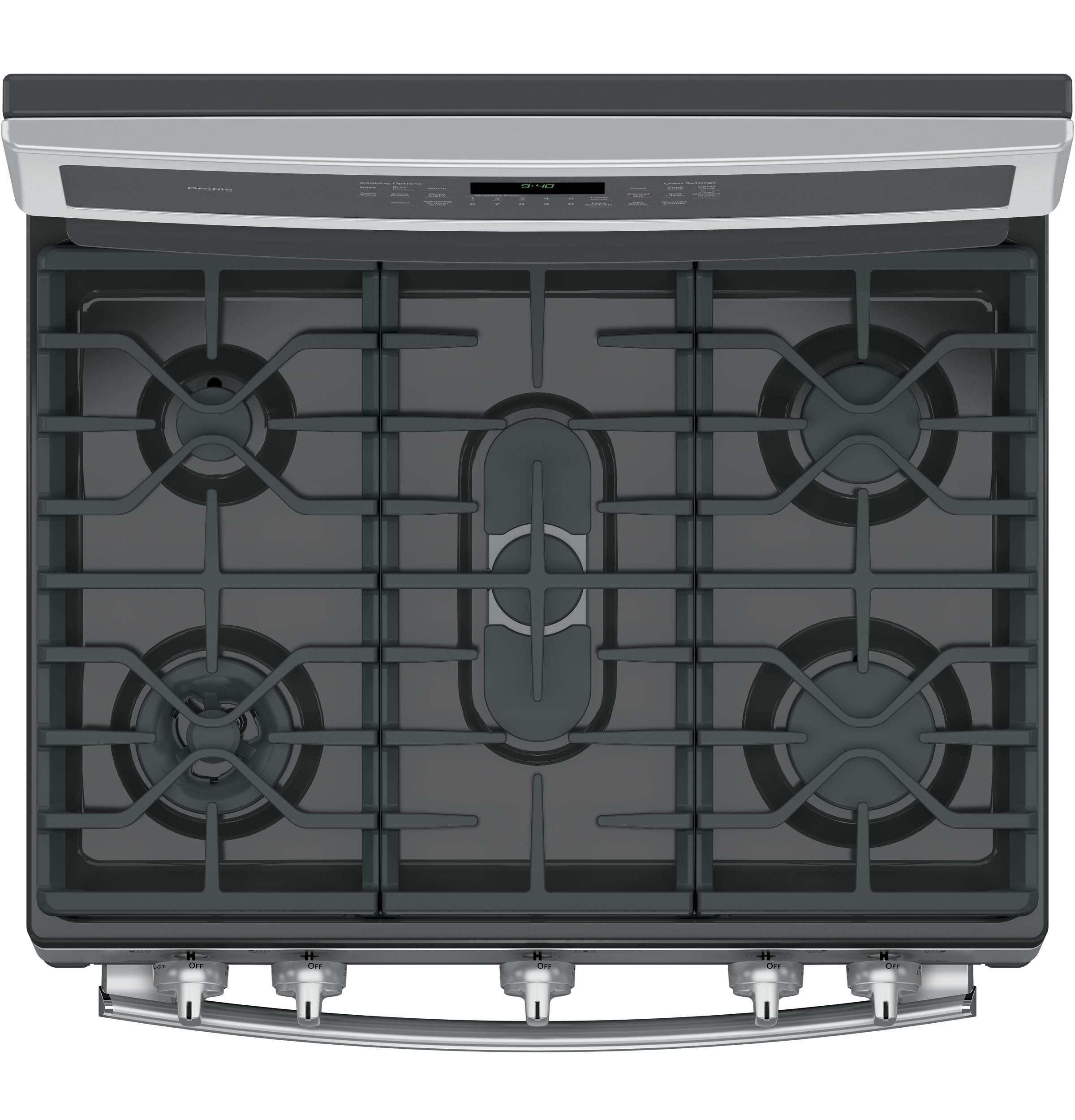

Cooktop Burner Grate Features : Continuous Grates

Control Type : Electronic Touch

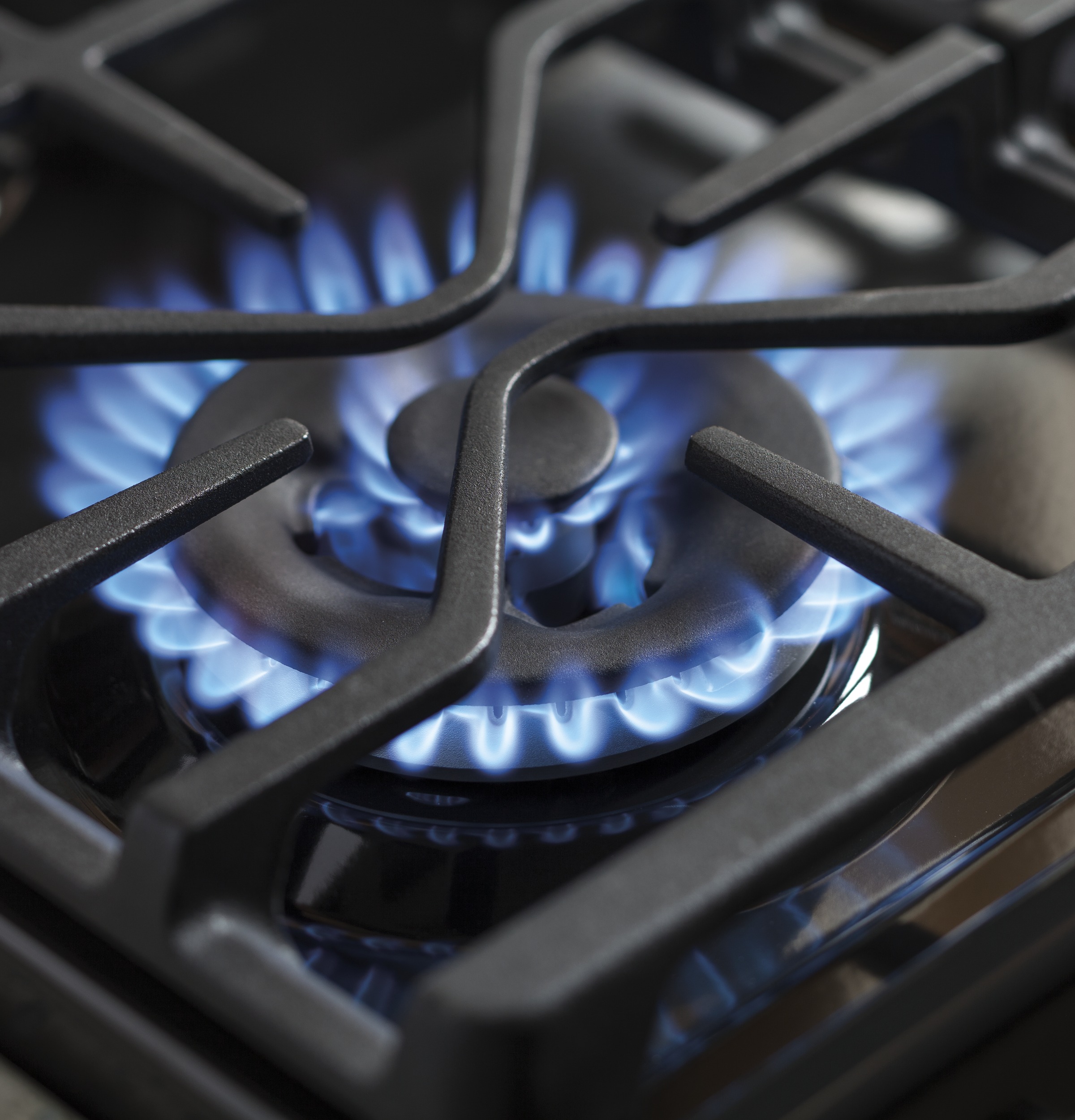

Burner - Left Front : 20,000 BTU Tri-ring Burner

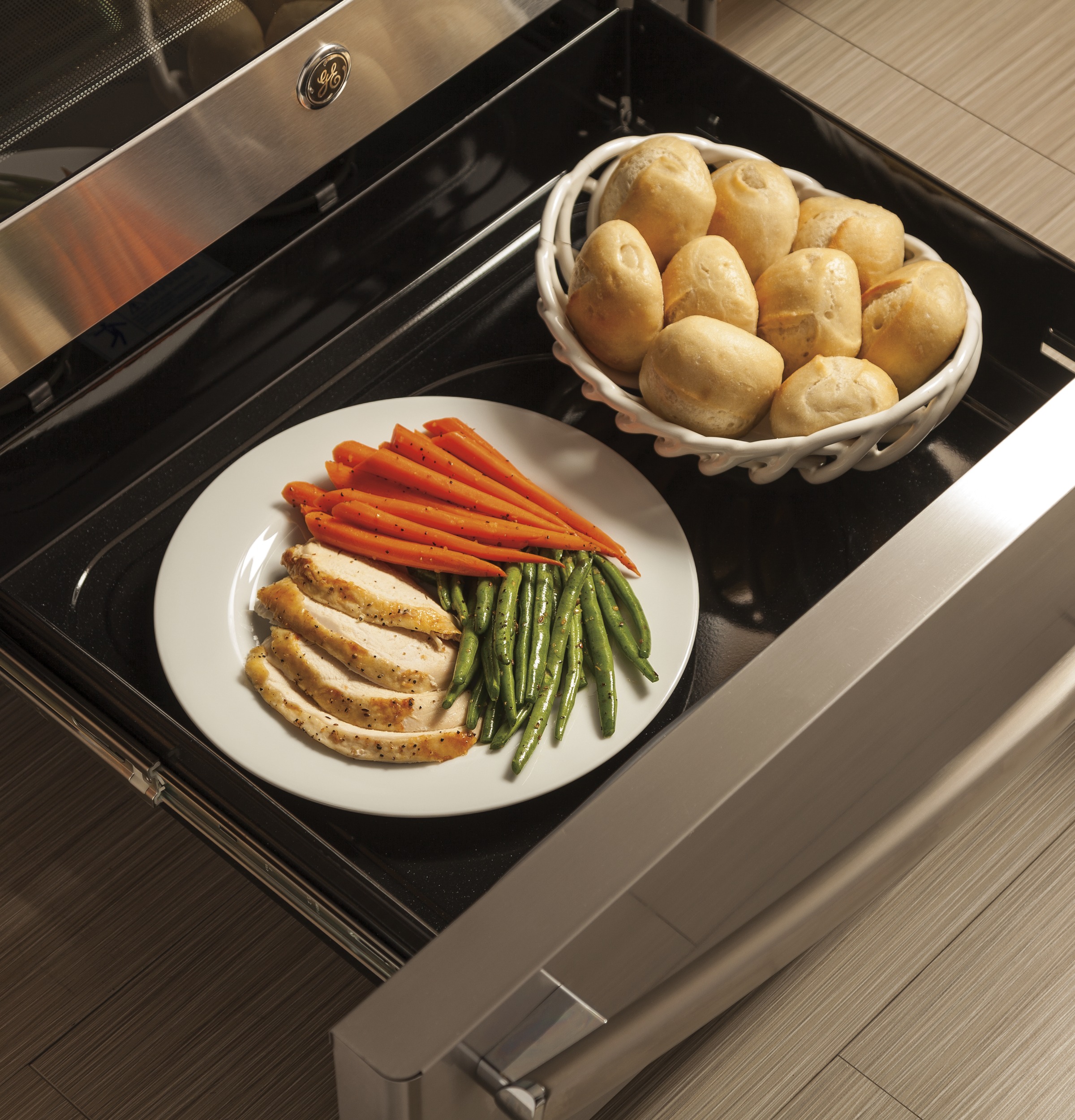

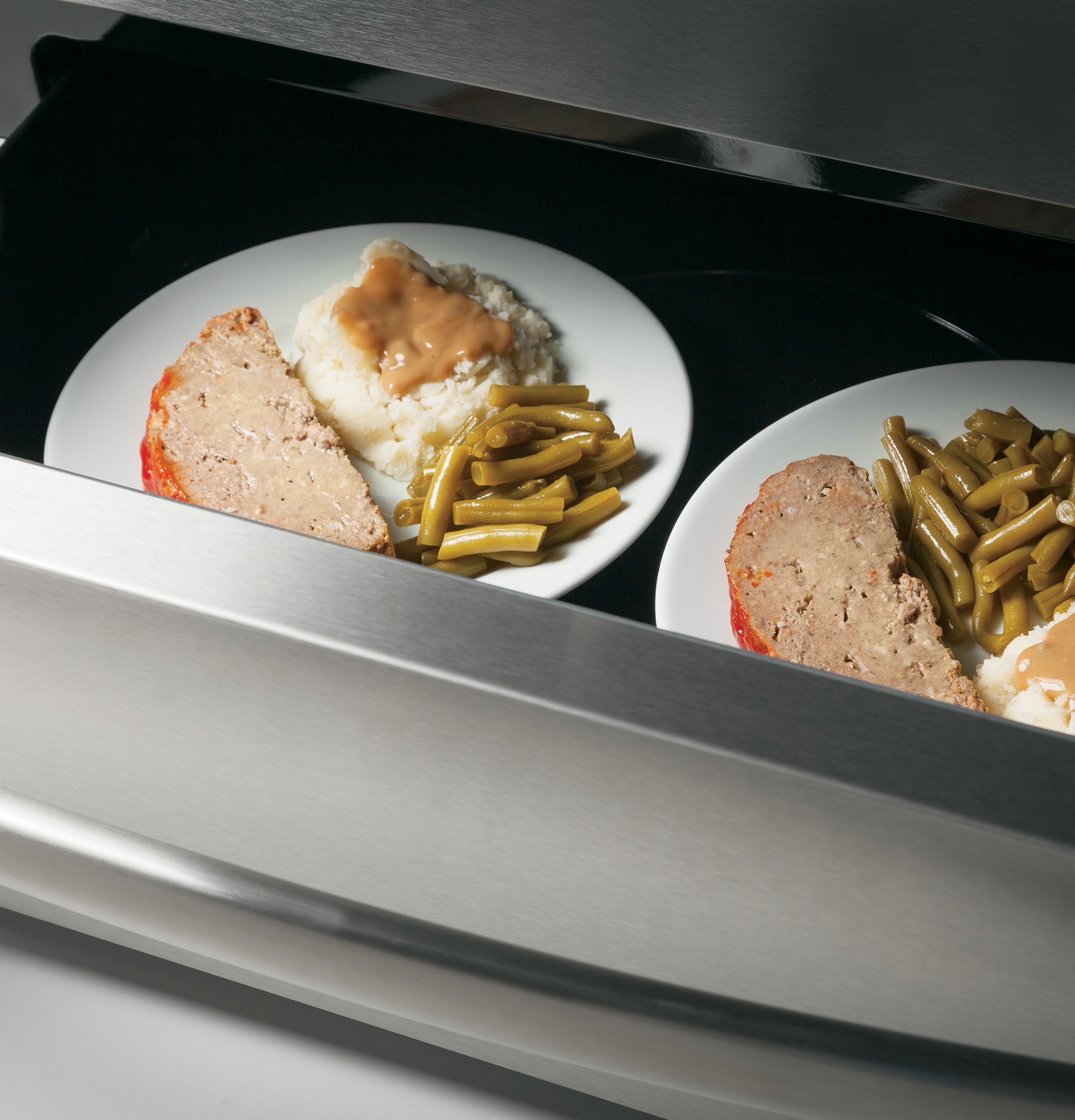

Drawer Type : Warming Drawer

Cooking Technology : Convection

Oven Cooking Modes : Convection Bake, Convection Roast, Warming

Cooktop Burner Type : Sealed

Burner - Right Front : 18,000 BTU Power Boil

Cooktop Surface : Edge-to-Edge, Gray, One-Piece Upswept, Porcelain-Enamel

FILTER

App Filter - Cabinet Width : Cooking 30 in. (Standard)

App Filter - Control Type : Electronic touchpad

App Filter - Product Type : Ranges Free-Standing Single Oven

App Filter - Fuel Type : Dual Fuel

App Filter - Cooking Technology : Convection

App Filter - Dual Purpose Burner : Yes

App Filter - Tri-Ring Burner : Yes

App Filter - Convection : Yes

App Filter - Edge-to-Edge Cooktop : Yes

App Filter - Drawer Type : Warming Drawer

App Filter - Cleaning Type : Self-Clean

App Filter - Cooktop Type : Continuous Grates with Griddle

App Filter - WiFi Connect : Built-In

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's) : (1) 10.0; (1) 9.5; (1) 18.0; (1) 5.0; (1) 20.0

Volts/Hertz/Amps : 240V; 60Hz; 30A

Top Burner BTU Rating - LP (000's BTU's) : (1) 15.0; (1) 5.0; (1) 18.0; (1) 9.5; (1) 10.0

Broiler Wattage : 3410W

Bake Wattage : 2585W

Power Connection : Power Cord - Not Included

WARRANTY

Parts Warranty : Limited 1-year entire appliance

Labor Warranty : Limited 1-year entire appliance

Warranty Notes : See written warranty for full details

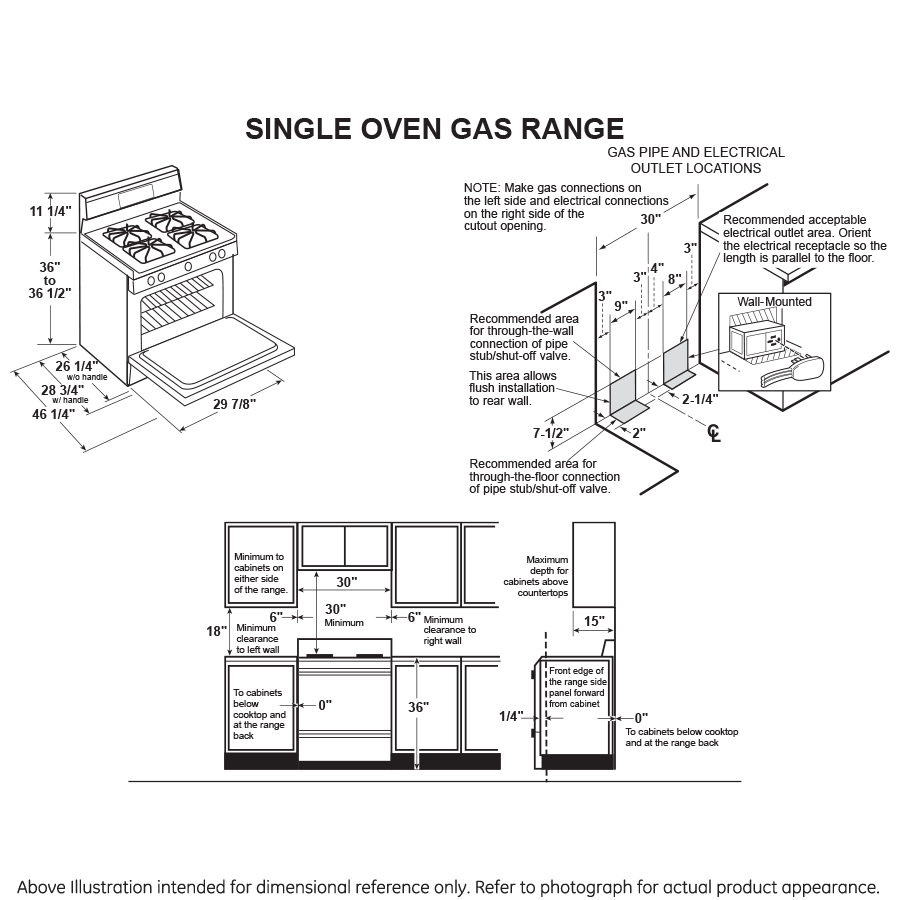

WEIGHTS & DIMENSIONS

Net Weight : 225 lb

Depth Without Handle : 26.25 in

Height to Cooking Surface (in.) : 36 - 36 1/2

Depth with Door Open 90° : 47.625 in

Cabinet Width : 30 in

Approximate Shipping Weight : 245 lb

Overall Width : 30 in

Overall Height : 47.25 in

Overall Depth : 28.75 in

Oven Interior Dimensions (W x H x D) (in.) : 24 x 19-1/2 x 20-5/8
