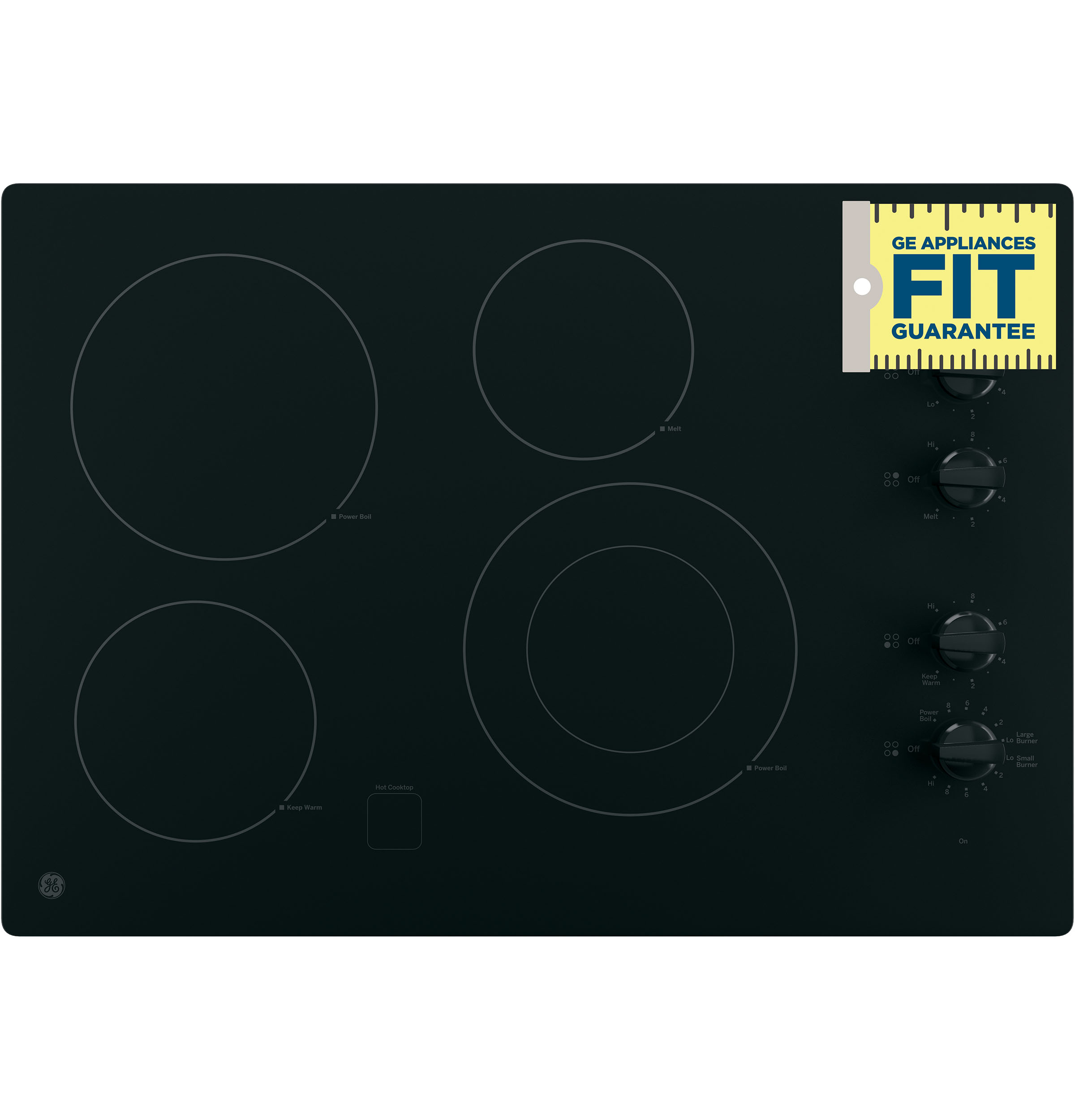

Fit Guarantee

• Replacing a similar cooktop from GE Appliances or another brand? GE cooktops are guaranteed for an exact fit or GE Appliances will pay up to $100 toward modifications. See offer criteria and details

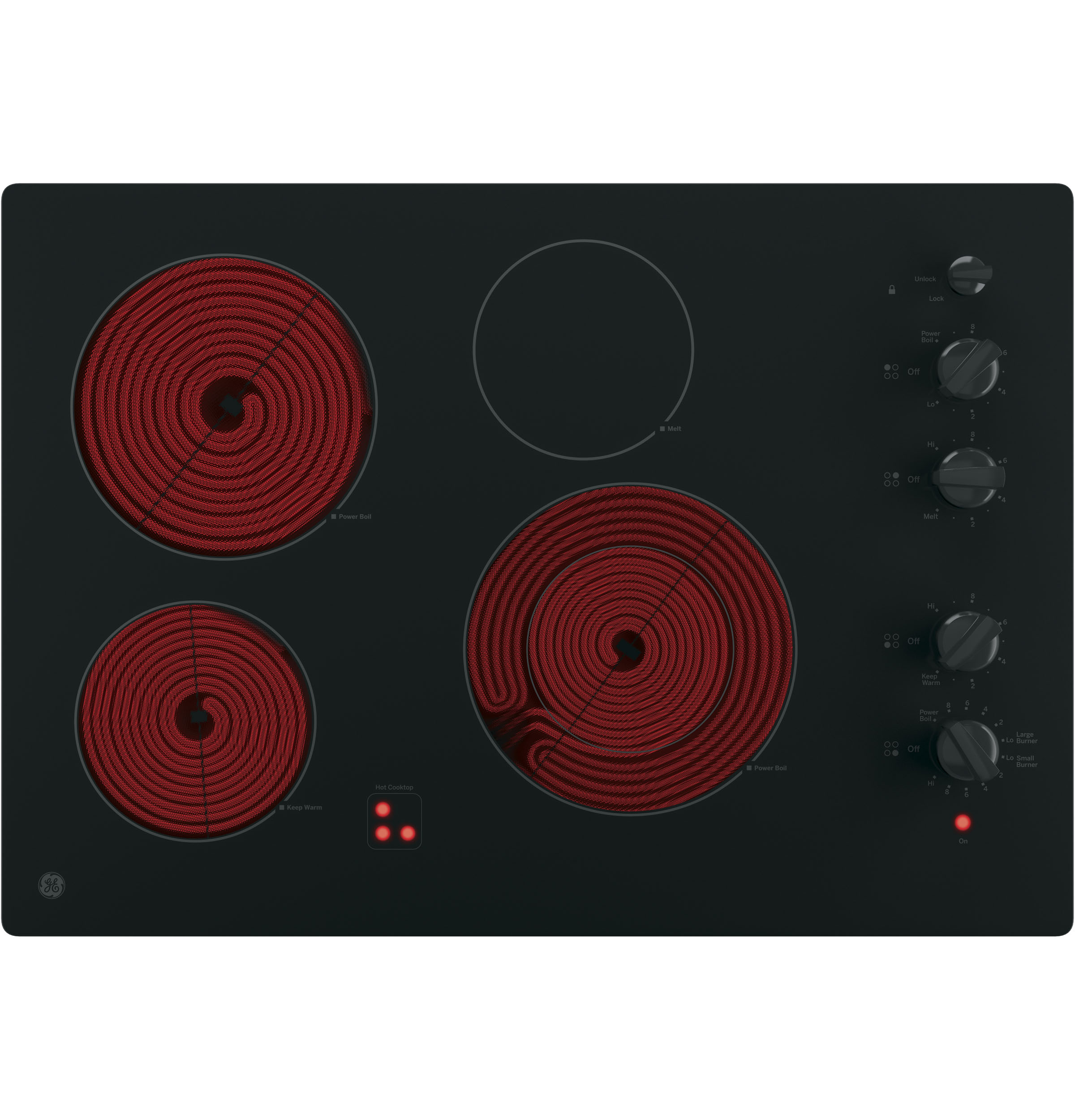

Four radiant cooking elements

• Cook foods quickly and evenly on this sleek, glass surface

Power Boil Dual-Ring Element

• Use different pan sizes on this powerful 3,100-watt flexible element that produces concentrated heat for rapid boiling

8" Power Boil element

• Get rapid heat from this powerful 2,500-watt element

Keep Warm Setting

• A fully functional 6" element has the power to boil water and can keep food warm thanks to GE's lowest heat setting

Melt Setting

• Gently melt delicate foods without scorching thanks to a convenient melt setting

Control lock capability

• Protects against unintended activation

Hot surface indicator lights

• Know when elements are too hot to touch with a quick glance

Cooktop "On" indicator light

• A light lets you know when an element is active

APPEARANCE

Color Appearance : Black

Frameless : Yes

Control Knobs : Gloss Black

FEATURES

Dishwasher Safe Knobs : Yes

Filler trim kit : JXTR32B

Cooktop Burner Type : 4 Ribbon, Smoothtop

Melt Setting : Yes

Fuel Type : Electric

Element - Left Front : 7" 1500W

Indicator Lights : 4 Hot Surface, Red, Surface Element "ON"

Element - Right Front : 9"/6" 3100W Power Boil

Control Location : Right Side

Cooktop Type : Radiant Smoothtop

Cooktop Surface : Black Ceramic Glass

Cooktop Control Features : Control Lock Capability, Keep-Warm Setting, Melt Setting

Element - Left Rear : 8" 2500W Power Boil

Control Type : Knob (Infinite switch)

Element - Right Rear : 6" 1200W

FILTER

App Filter - Cabinet Width : Cooking 30 in. (Standard)

App Filter - Cooktop Type : Radiant Smoothtop

App Filter - Fuel Type : Electric

App Filter - Control Type : Rotary knobs

POWER / RATINGS

Recommended Circuit Breaker (Amps) at 240V : 40

Max. Connected Load (kW) at 240V : 8.3

Max. Current Draw (Amps) at 240V : 34.6

Max. Connected Load (kW) at 208V : 6.2

Recommended Circuit Breaker (Amps) at 208V : 30

Max. Current Draw (Amps) at 208V : 30.0

WARRANTY

Parts Warranty : Limited 1-year entire appliance

Warranty Notes : See written warranty for full details

Labor Warranty : Limited 1-year entire appliance

WEIGHTS & DIMENSIONS

Cooktop Size : 30 in

Overall Height : 4 in

Cutout Depth (in) : 19-5/8

Cabinet Width : 30 in

Approximate Shipping Weight : 43 lb

Overall Width : 29.75 in

Net Weight : 37 lb

Cutout Width (in) : 28-1/2

Overall Depth : 20.875 in

• Installation Instructions

• Quick Specs

• Use and Care Manual
