Fit Guarantee

• Replace your old 30” free-standing range with a new 30" slide-in model. GE slide-in ranges are guaranteed for an exact fit or GE Appliances will pay up to $300 toward modifications.? See offer criteria and details

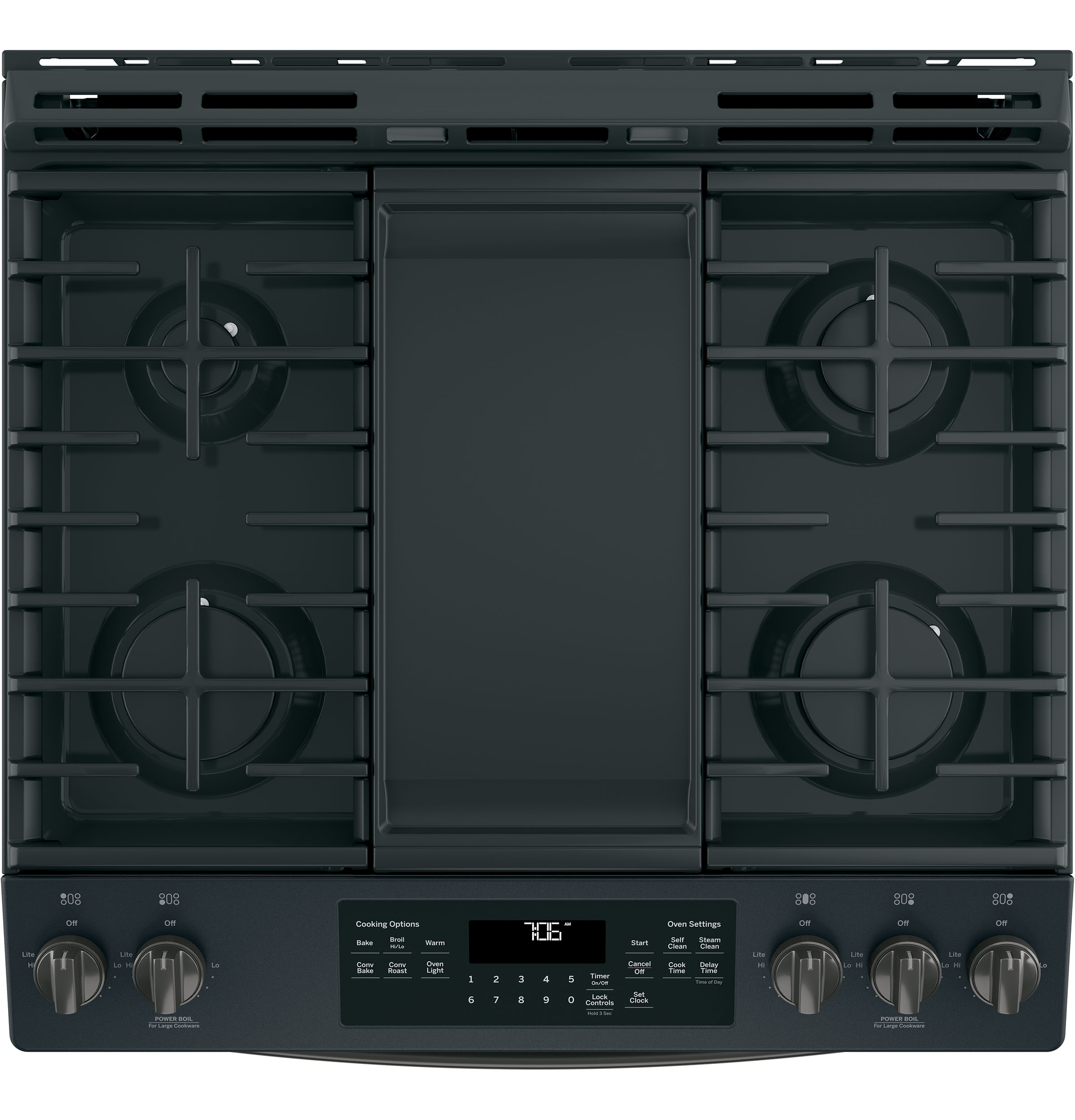

Edge-to-edge cooktop

• A large cooking surface gives you extra room for pots and pans of all sizes and lets cookware move easily from burner to burner

Extra-large integrated griddle

• Cook up to six grilled cheeses at once on the industry’s largest integrated griddle

18,000 BTU Power Boil burner

• Prepare your favorite pasta dishes faster by boiling water in less time

Gas convection

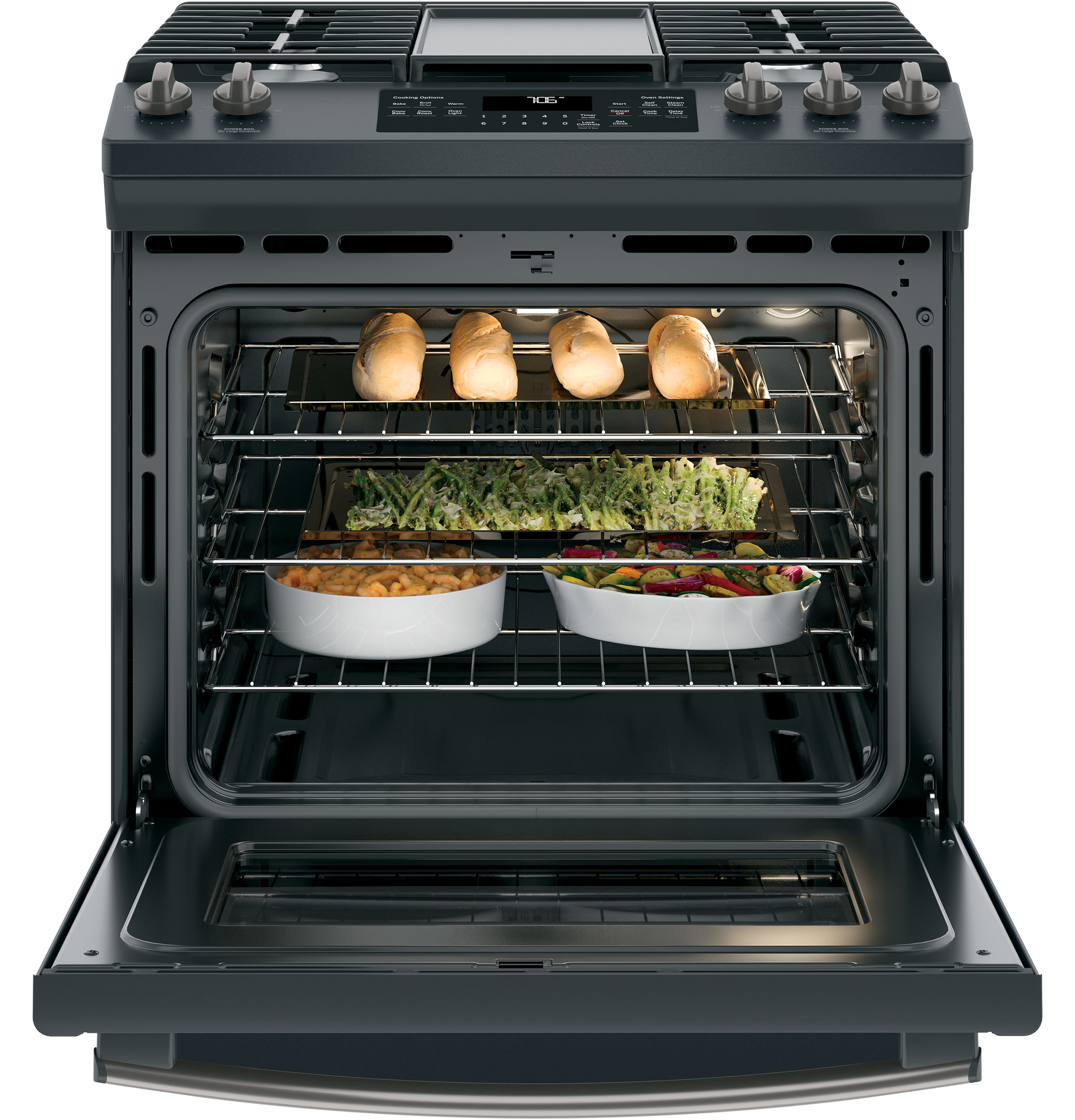

• Evenly bake foods like roasts and cookies with this helpful feature that uses a fan to circulate heated air

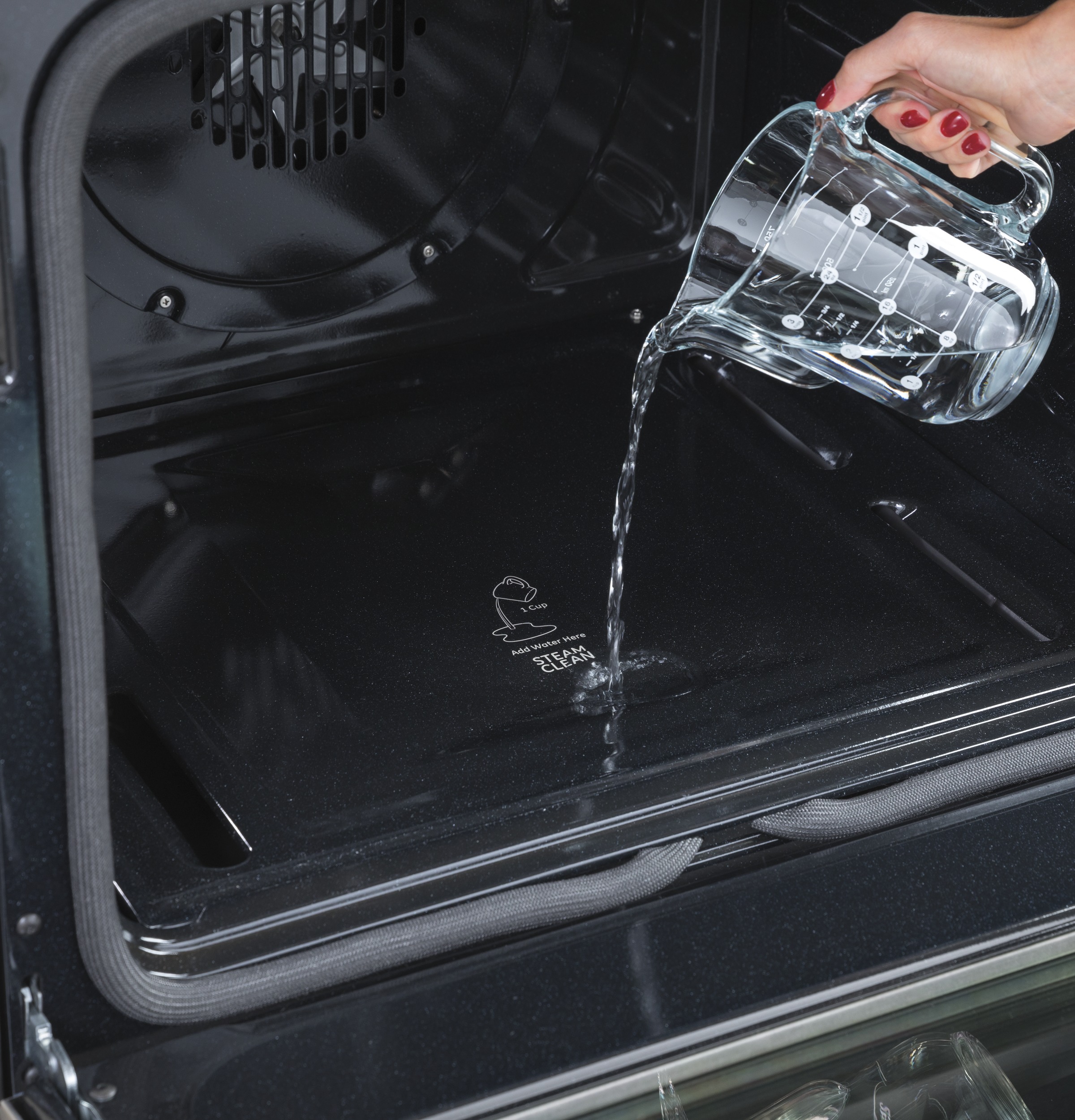

Self-clean with Steam Clean option

• Clean your oven the way you want

10,000 BTU oval burner

• Large oval fifth burner is ideal for griddle or odd-size cookware

Heavy duty, dishwasher safe grates

• Easily and safely clean grates in the dishwasher or place in the bottom of the self-clean oven

Precise Simmer burner

• Delicate foods don’t burn with low, even heat

Smooth-glide storage drawer

• Drawer opens and closes easily for instant access and extra storage

ACCESSORIES

Optional Accessories : WB48X21543 Roller Rack

Griddle Accessory : Integrated Griddle (Included)

LP Conversion Kit : Included

Trim Kit : JXFILLR1DD, Optional

APPEARANCE

Cooktop Burner Grate Color : Matte Black

Handle : Designer Style

Installation : Flush Appearance, Free-standing cut-out

Oven Door Features : Big View Oven Window

Handle Color : Black Stainless

Control Knobs : Black Stainless

Color Appearance : Fingerprint Resistant Black Slate

CAPACITY

Total Capacity (cubic feet) : 5.6 cu ft

FEATURES

Ignition System : Electronic

Burner - Right Rear : 9,500 BTU

Oven Interior : 1 Auto Incandescent Light, Black

Oven Control Features : Audible Preheat Signal, Auto Recipe Conversion, Auto Self Clean, Certified Sabbath Mode, Control Lock Capability, Dual Broil, Electronic Clock & Kitchen Timer, In-Oven Broiling

Oven Rack Features : 3 Oven Racks

Burner - Left Rear : 5,000 BTU Precise Simmer

Oven Cleaning Type : Self-Clean with Steam Clean Option

Griddle : Integrated (Included)

Product Type : Slide-In Single Oven

Cooktop Type : Continuous Grates

Cooktop Burner Grate Material : Heavy Cast Iron

Fuel Type : Natural Gas

Burner - Center : 10,000 BTU Oval

Control Location : Front

Cooktop Burner Grate Features : Continuous Grates

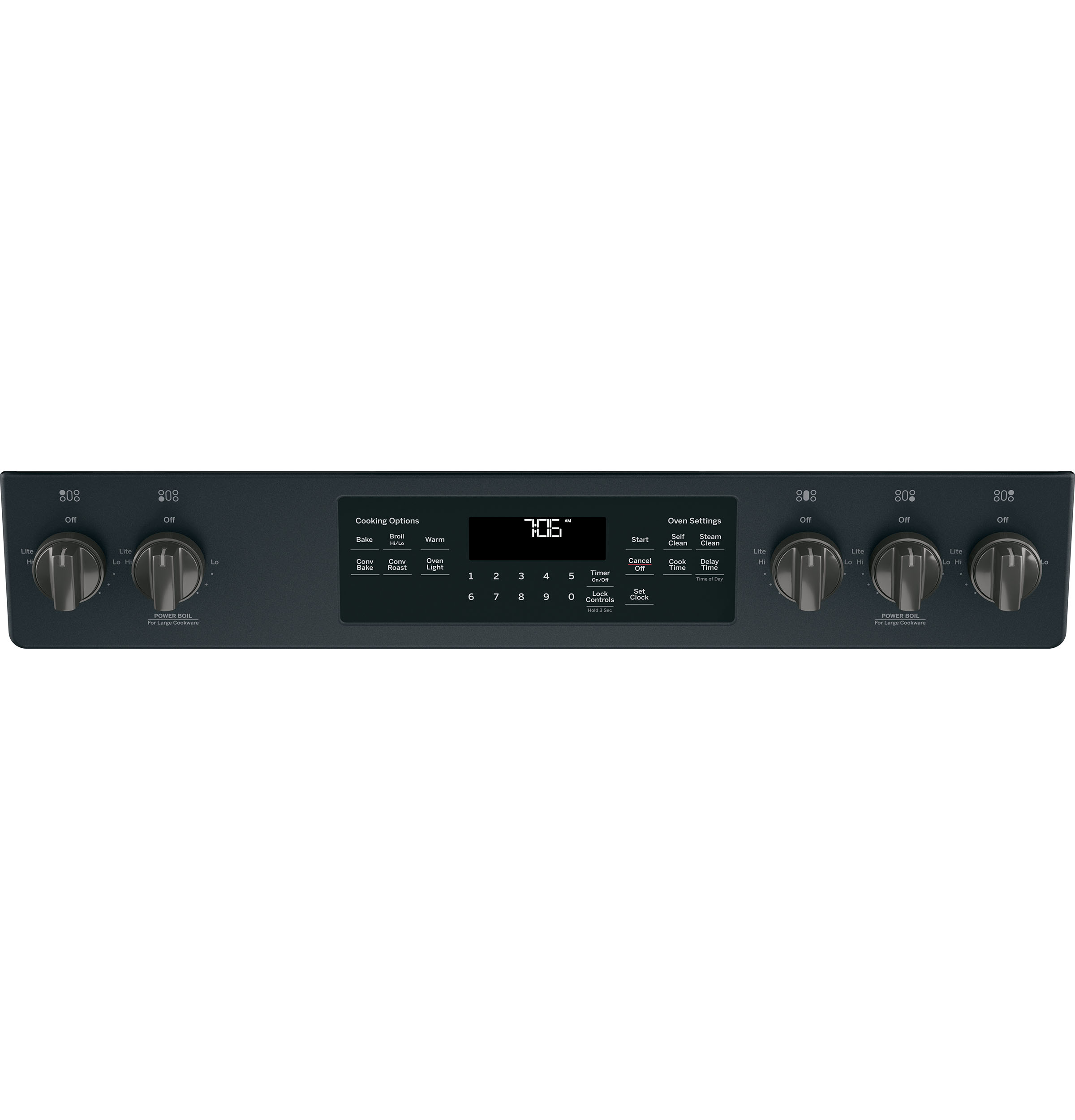

Control Type : Electronic Touch

Burner - Left Front : 18,000 BTU

Drawer Type : Storage

Cooking Technology : Convection

Configuration : Range with Smooth Glide Storage Drawer

Oven Cooking Modes : Convection Bake, Convection Roast

Cooktop Burner Type : Sealed

Burner - Right Front : 15,000 BTU Power Boil

Cooktop Surface : Deep Recessed, Edge-to-Edge

Self-Clean Oven Door Lock : Automatic

FILTER

App Filter - Cabinet Width : Cooking 30 in. (Standard)

App Filter - Control Type : Electronic touchpad

App Filter - Product Type : Ranges Slide-In Single Oven

App Filter - Fuel Type : Gas

App Filter - Cooking Technology : Convection

App Filter - Convection : Yes

App Filter - Edge-to-Edge Cooktop : Yes

App Filter - Drawer Type : Storage

App Filter - Cleaning Type : Steam and Self-Clean

App Filter - Cooktop Type : Continuous Grates

POWER / RATINGS

Top Burner BTU Rating - Nat. Gas (000's BTU's) : (1) 18.0; (1) 15.0; (1) 9.5; (1) 5.0; (1) 10.0

Volts/Hertz/Amps : 120v; 60Hz; 15A

Top Burner BTU Rating - LP (000's BTU's) : (1) 18.0; (1) 15.0; (1) 8.0; (1) 9.5; (1) 5.0

Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) : 16.0 Bake / 16.5 Broiler

Bake/Broiler BTU Rating - LP (000's BTU's) : 16.0 Bake / 14.5 Broiler

WARRANTY

Parts Warranty : Limited 1-year entire appliance

Labor Warranty : Limited 1-year entire appliance

Warranty Notes : See written warranty for full details

WEIGHTS & DIMENSIONS

Net Weight : 224 lb

Depth Without Handle : 26.75 in

Height to Cooking Surface (in.) : 36 1/4 +/- 1/4

Cabinet Width : 30 in

Approximate Shipping Weight : 244 lb

Overall Width : 30 in

Cabinet Opening : 30 in

Overall Height : 36.25 in

Height to Top of Rear Vent Trim : 37.375 in

Overall Depth : 29.25 in

Depth with Door Open : 47.5 in

Oven Interior Dimensions (W x H x D) (in.) : 24 x 19-1/2 x 20-5/8
