12"/9" dual element

• A dual burner cooktop lets you choose between 12-inch and 9-inch electric elements for a more convenient cooking experience

Fifth element warming zone

• A convenient low-heat warming zone provides even temperature control for foods on the cooktop

True Convection with Precise Air

• Enjoy perfectly even results without turning the pan

Self-clean oven

• Cleans the oven cavity without the need for scrubbing

Black gloss oven interior

• Enjoy a clean and sleek appearance

Dual-element Bake

• Upper and lower elements produce even heat and great results

6.6 cu. ft. total oven capacity

• Large capacity is ideal for big meals

ACCESSORIES

Optional Accessories : WB48X20862 Roller Rack

Cooktop Cleaning : Cream, Included, Sponge

APPEARANCE

Textured Steel Side Panels : Yes

Oven Door Features : Big View Oven Window, Full-Wrapped Metal Frame

Handle Design : Designer Style

Handle Color : Stainless Steel

Control Knobs : Stainless Steel Appearance

Color Appearance : Fingerprint Resistant Slate

CAPACITY

Total Capacity (cubic feet) : 6.6 cu ft

Capacity (Cu. Ft.) : 2.2 Upper / 4.4 Lower

FEATURES

Element - Center : 6" 80W Warming Zone

Oven Control Features : Audible Preheat Signal, Auto Oven Shut-Off with Override, Auto Self Clean, Certified Sabbath Mode, Control Lock Capability, C° or F° Programmable, Delay Bake Option (Time Cook), Delay Clean Option, Electronic Clock & Kitchen Timer, Hi / Low Broil, Oven "ON" Light, Self-Clean Cool Down Time Display

Oven Rack Features : 3 Heavy-Duty Oven Racks

Element - Left Front : 9"/6" 3100W Power Boil

Oven Cleaning Type : Self-Clean (Both Ovens)

Product Type : Free-Standing Double Oven

Heating Element "ON" Indicator Light : 1

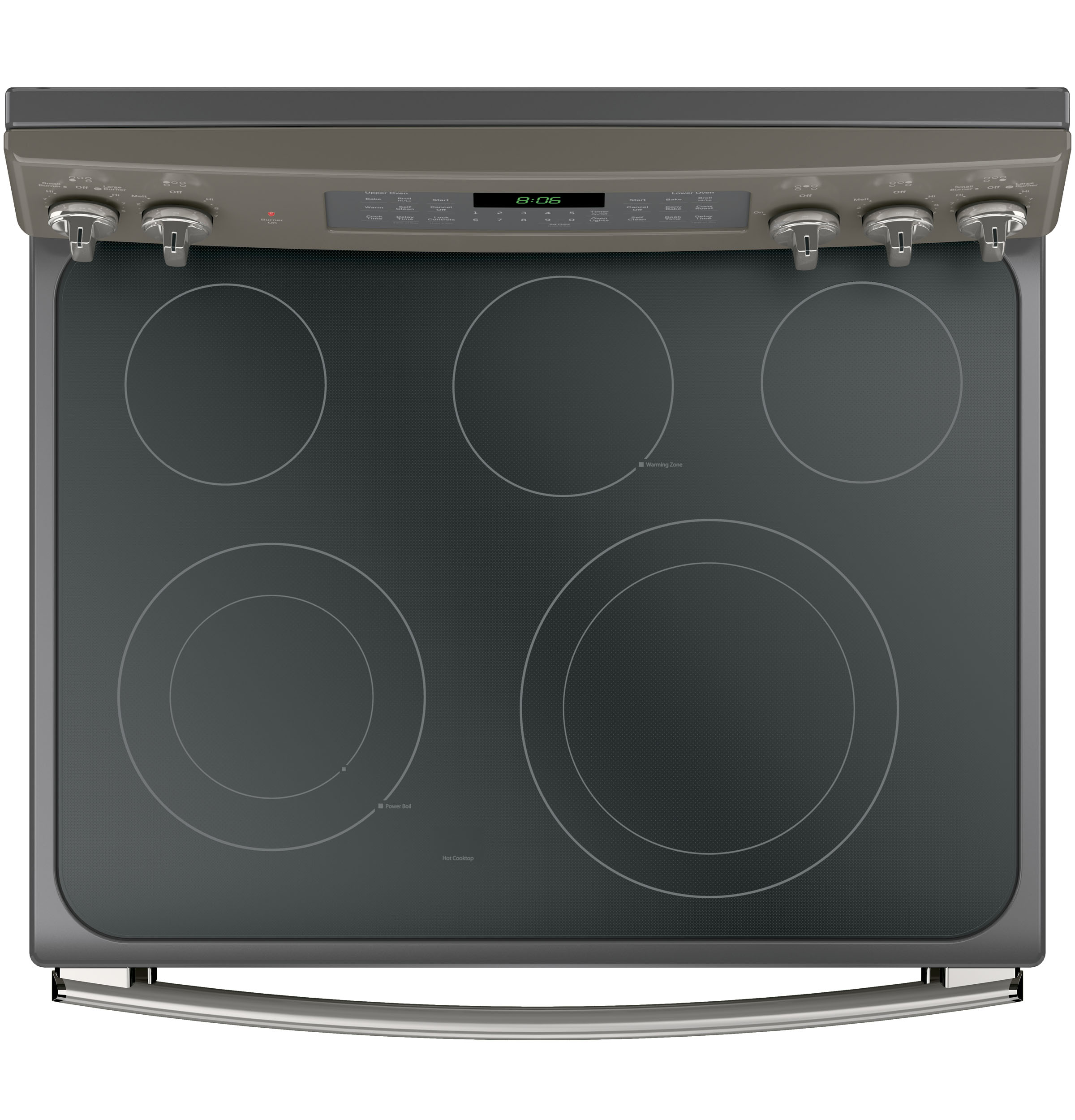

Cooktop Type : Radiant Smoothtop

Fuel Type : Electric

Element - Right Front : 12"/9" 3000W

Interior Oven Light : 1 Halogen (Lower), 1 Incandescent (Upper), Preheat Notification (Both Ovens)

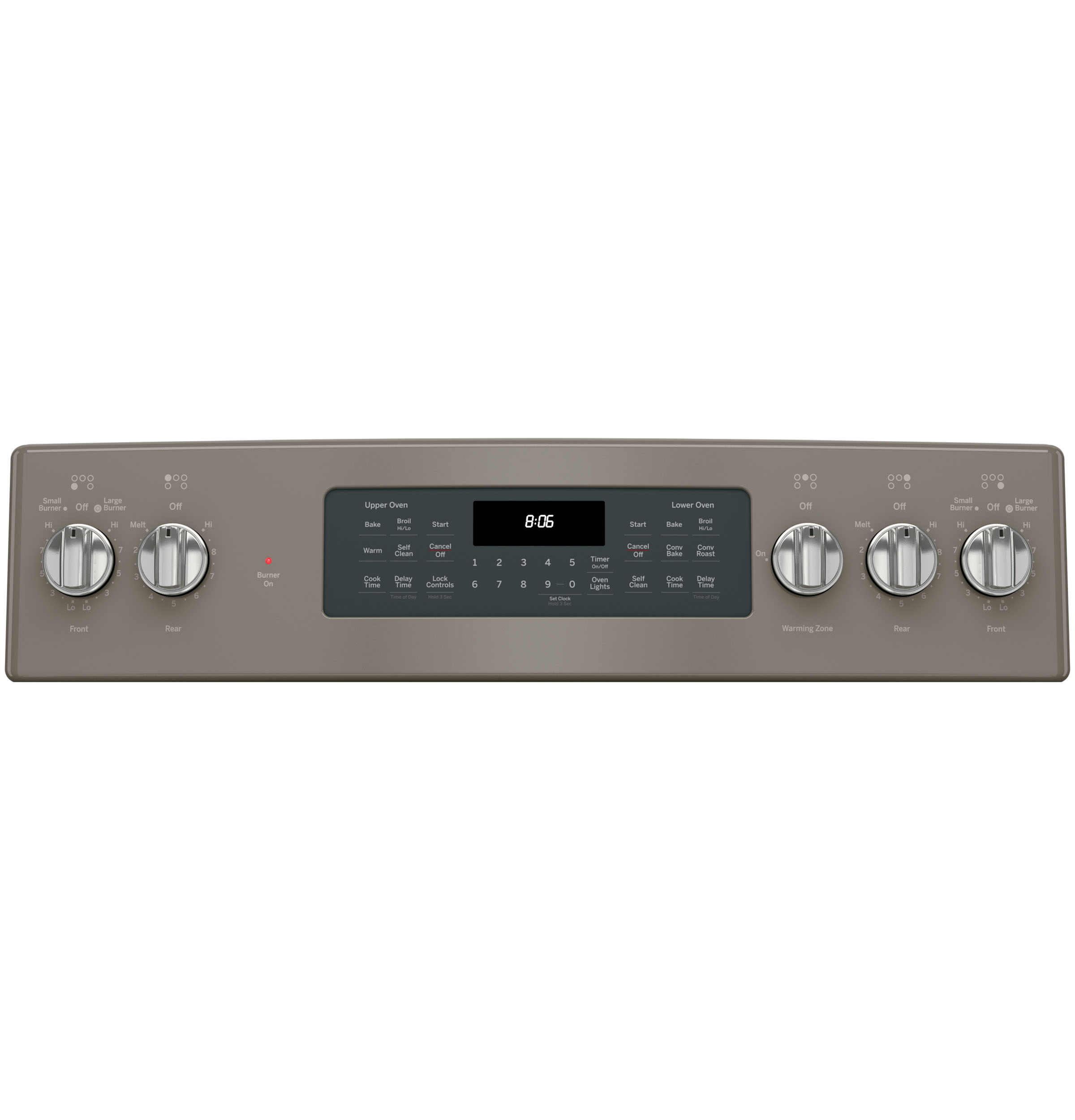

Control Location : Backsplash

Control Type : Digital Temperature Display, Electronic, Touchpads

Hot Surface Indicator Lights : 1

Element - Left Rear : 6" 1200W

Cooking Technology : Traditional Upper; Convection Lower

Configuration : Double Oven Range

Oven Features : 6-Pass Bake Element (Lower), 6-Pass Broil Element (Both Ovens), 8-Pass Bake Element (Upper)

Melt Setting : Yes

Oven Cooking Modes : Warming

Cooktop Burner Type : Radiant, Smoothtop

Element - Right Rear : 6" 1200W

Cooktop Surface : Gray Patterned Ceramic Glass, One-Piece Upswept

Oven Rack Positions (Single or Upper/Lower) : 2 / 7

FILTER

App Filter - Cabinet Width : Cooking 30 in. (Standard)

App Filter - Control Type : Electronic touchpad

App Filter - Product Type : Ranges Free-Standing Double Oven

App Filter - Fuel Type : Electric

App Filter - Cooking Technology : Convection, Traditional

App Filter - Convection : Yes

App Filter - Cleaning Type : Self-Clean

App Filter - Cooktop Type : Radiant Smoothtop

POWER / RATINGS

Amp Rating at 208V : 40

Broiler Wattage : 2500W Upper / 3600W Lower

Amp Rating at 240V : 40

KW Rating at 240V : 15.6

Bake Wattage : 2500W Upper / 2650 Lower

KW Rating at 208V : 11.7

WARRANTY

Parts Warranty : Limited 1-year entire appliance

Labor Warranty : Limited 1-year entire appliance

Warranty Notes : See written warranty for full details

WEIGHTS & DIMENSIONS

Net Weight : 204 lb

Oven Interior Dimensions (upper) : 24 x 8-7/8 x 18-1/4

Depth Without Handle : 25.75 in

Height to Cooking Surface (in.) : 35 3/4 - 36 1/2

Cabinet Width : 30 in

Approximate Shipping Weight : 226 lb

Overall Width : 29.875 in

Overall Height : 47 in

Overall Depth : 28.25 in

Depth with Door Open : 45 in

Oven Interior Dimensions (lower) : 24 x 17 1/2 x 18 1/4
