Dry Boost™

• Dry Boost outperforms standard heated dry dishwashers by getting hard-to-dry items like plastics up to 3 times drier when compared to heated dry

High Wash Performance

• Get a complete wash with no pre-rinse, thanks to a variety of wash cycles that provide a powerful clean. No matter how many dishes you load or how dirty they are, rest assured you'll get spotless results every time

Water Leak Sensor

• This dishwasher features Active Flood Protect, which prevents potential overflows for greater peace of mind. It works by using a water leak detector to sense when water is too high, pumping it out until a safe level is reached

Reliable Performance

• American made, this dishwasher is durable, long-lasting and dependable. Its consistent performance will give you totally clean and dry dishes with every cycle

Steam + Sani

• Save time with a steam and sanitize option that loosens tough soils before the wash cycle begins, so you get a complete wash with no pre-rinsing or soaking necessary. Plus, a sanitization cycle reduces 99.999% of bacteria on dishes

1-Hour Wash Cycle

• This one-hour wash cycle provides a quick, quality clean. Unload spotless plates, glasses, pots and pans without waiting hours for the dishwasher to finish

Hard Food Disposer

• The Piranha Hard Food Disposer lets you use your dishwasher without pre-rinsing. Its stainless steel impellers rotate at 3,600 RPM to pulverize food particles and an anti-jamming design make sure wash arms stay unclogged

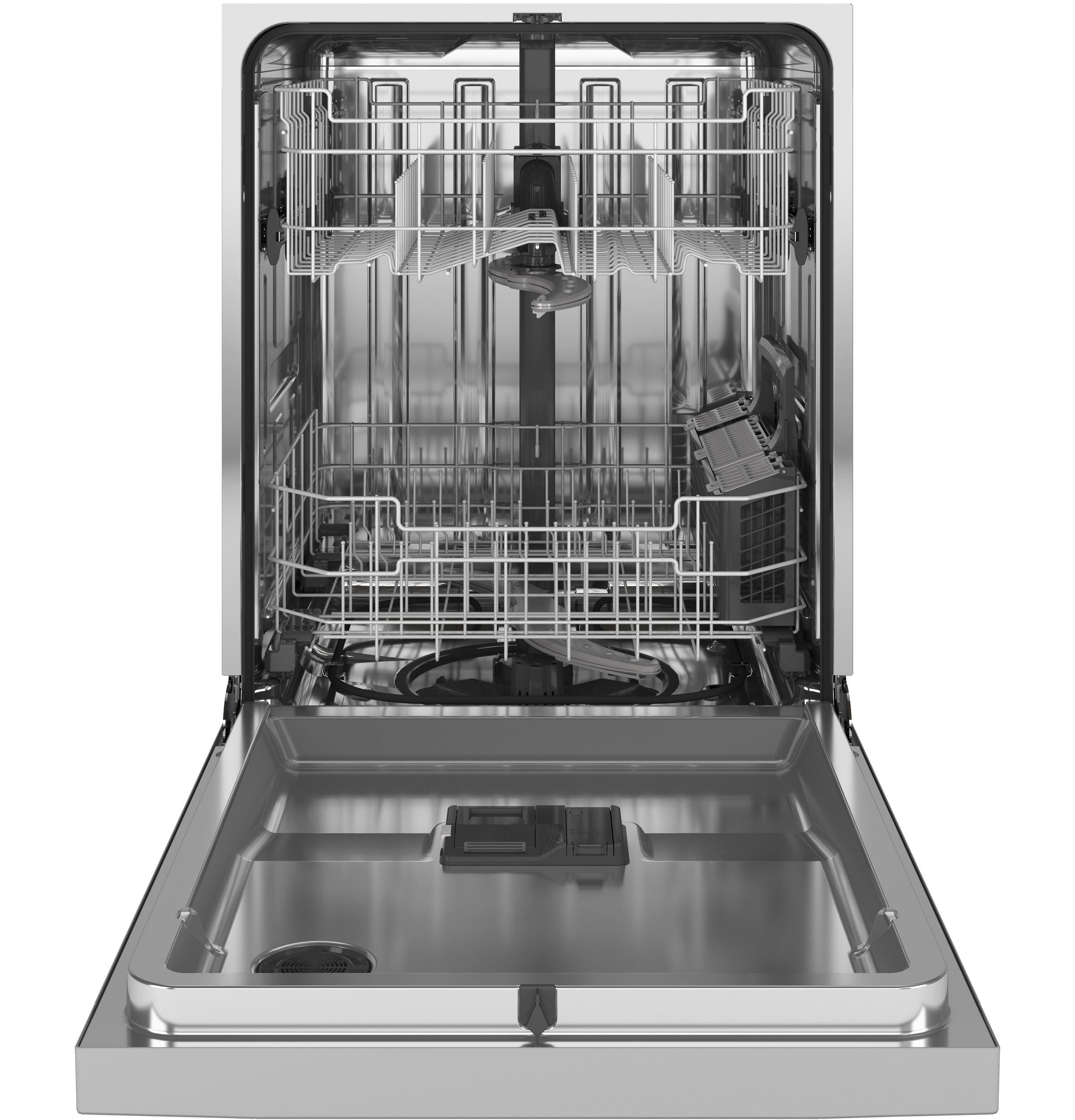

Stainless Steel Interior

• Get a lustrous finish and lasting beauty that resists stains and corrosion with a full stainless steel interior

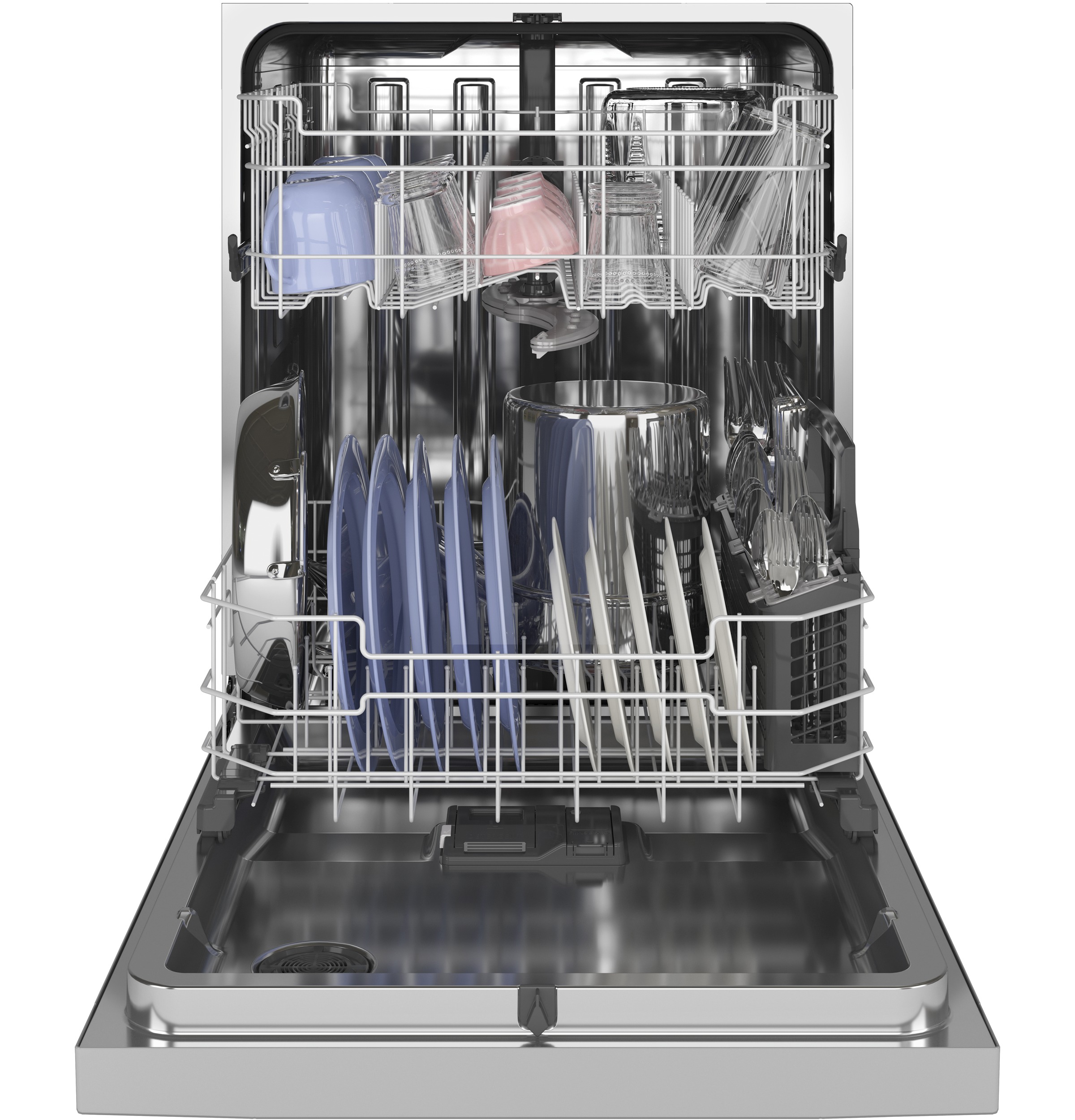

Large Capacity

• This extra large capacity dishwasher has enough space for 14 place settings and large dishware, making cleanup easy after large gatherings

50 dBA Dishwasher

• This quiet dishwasher provides a powerful clean without unwanted noise or disturbances. A status light on the door lets you know when it's running

Flush Installation

• Cabinet-depth flush installation ensures your dishwasher blends in with the design of your kitchen without sacrificing space for dishes inside

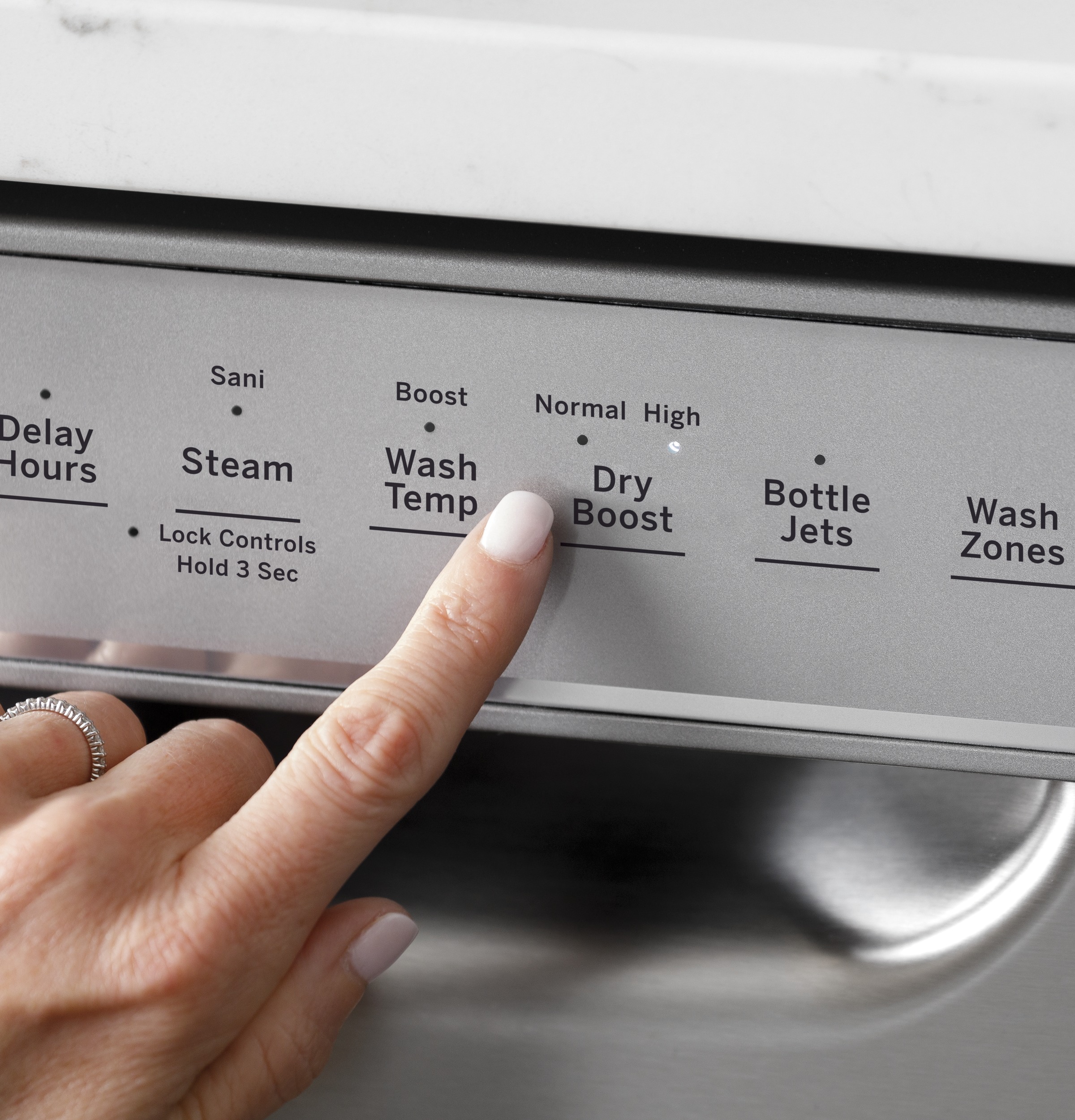

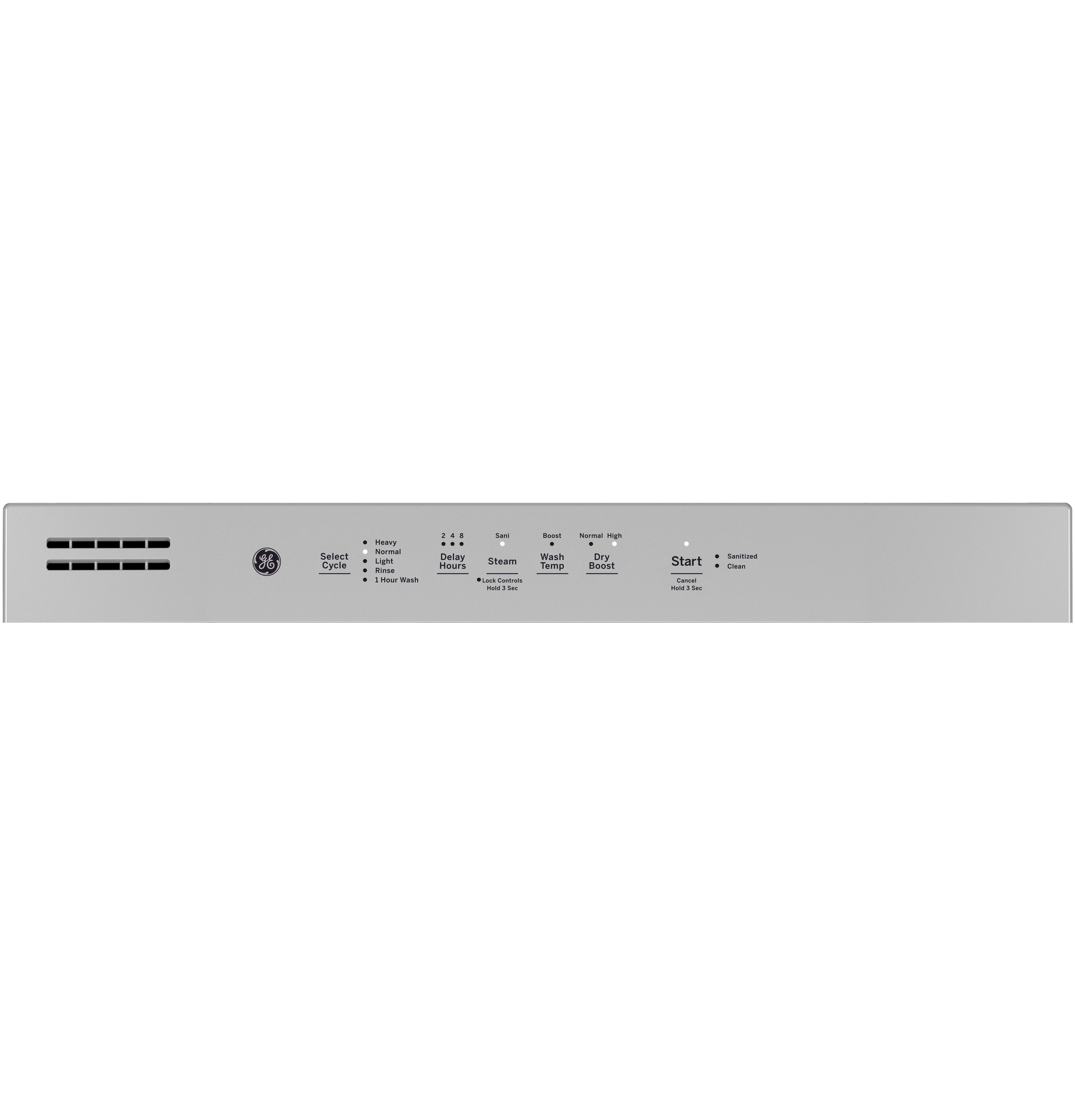

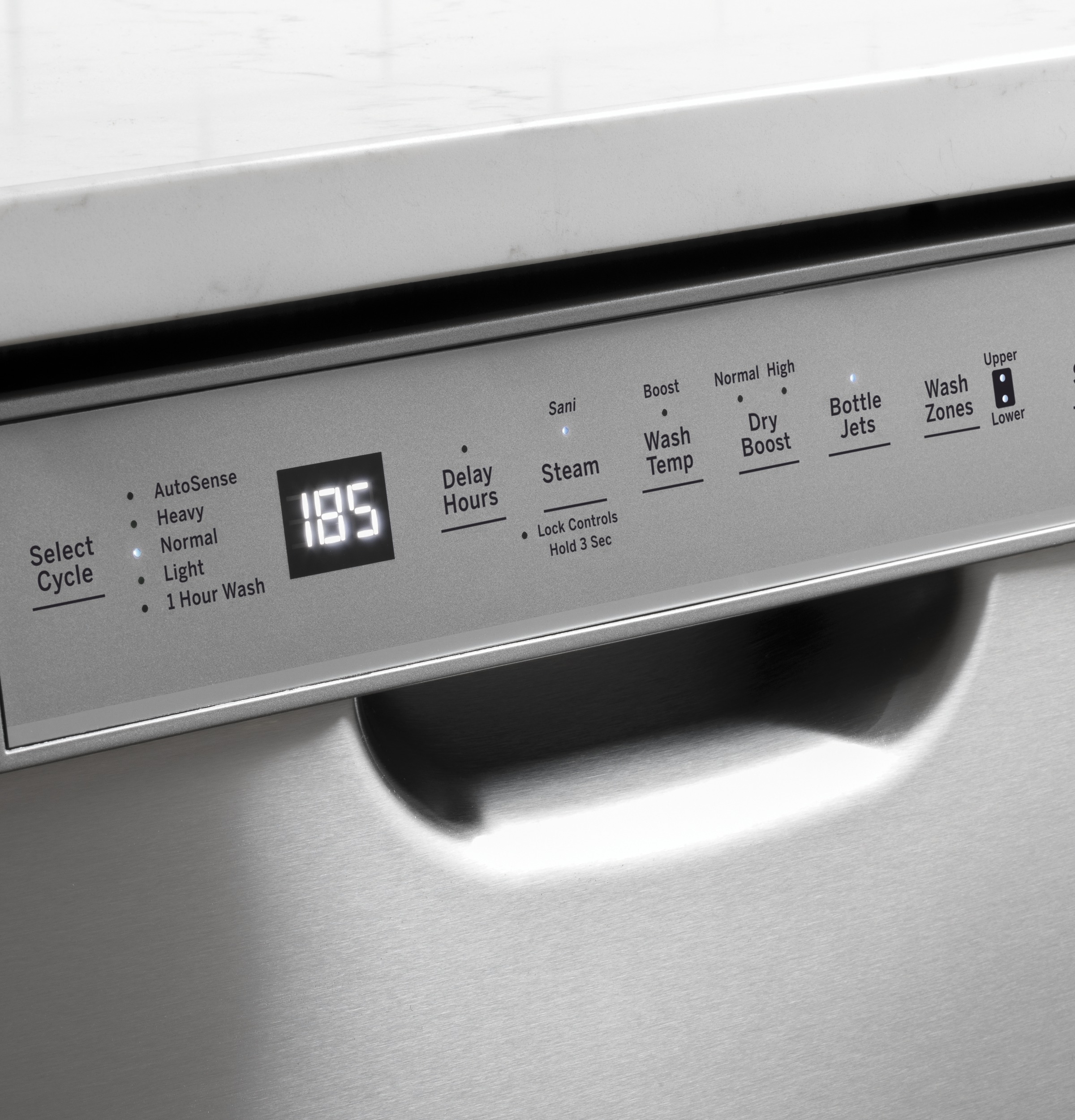

Smooth Touch Controls

• Touch controls are easy to wipe clean and offer simple, dependable cycle selection

Optional WiFi

• Turn your appliance into a smart dishwasher with a WiFi adapter (sold separately). Simply attach it and start using the SmartHQ app to control and monitor your unit remotely. You can even reorder detergent

APPEARANCE

Handle : Recessed

Installation : Built-Up Floor Capable, Flush Cabinet Installation, Side Installation or Top Installation Included

Handle Color : Stainless Steel

Door Style : Long Door

Door Appearance : Full-length door

Color Appearance : Stainless Steel

ECONOMICAL / QUIET

Door Insulation : Insulation, Mastic

Quiet Package : 50 dBA

Outer Wrap : Bitumen, Full-wrap Blanket

Motor Type : Single Speed

Quiet Features : Quiet Water Valve, Sealed Toe Kick, Tub Collar Trim

FEATURES

Wash System : 3-Level, 500 Series

Lower Rack : Ball-Tip Tines

Tub Type : Tall Tub

Leveling System : 4 Leveling Legs

OU Certified : No

Additional Protection : Active Flood Protect

Number of Place Settings : 14

Dishwasher Options : Child Lock, Delay Start 2/4/8 Hr., Dry Boost™, Heated Dry, Sabbath Mode, Sani (Certified to NSF Standard 184), Start/Reset, Steam PreWash, Wash TempBoost

Latch : Center Pull

Number of Options : 7

Style : Built-In Front Control

Water Filtration System : 100% Filtration with Piranha Hard Food Disposer and Removable Filter

Rack Features : 1 Piece Silverware Basket with 3 Cell Covers, Ball-Tipped Tines

Racking Material : Nylon

Dishwasher Cycles : 1 Hour Wash, Heavy Wash, Light Wash, Normal Wash, Rinse

Rack Color : Silver

Dispenser : Rinse Aid with Indicator and Adjustment

WiFi Connect : Optional (Requires part no. PBX23W00Y1)

Control Type : 6 Touchpads, Clean Touch Controls, Front Controls

Dishwasher Drying Features : Dry Boost™, Heated Dry - On/Off, Multi-Wattage Wash & Dry Element

Wash Arms : 3 Wash Levels, Lower, Middle, Upper

Wash System Features : Automatic HotStart, Automatic Temperature Control, Drain Pump, Dual Pumps and Motors, Piranha™ Hard Food Disposer with removable filter

Exterior Style : Traditional

Upper Rack : Ball-Tip Tines, Removable

Dishwasher Control Features : 1 "Clean" Light, 1 "Sanitized" Light Cycle Progress Indicators, Audible End-of-Cycle Signal, Control Lock, Last Cycle Memory, Start/Reset Pad

Number of Cycles : 5

Tub and Door Liner : Stainless Steel

Sabbath Mode : Yes

Showroom Power Mode : Yes

FILTER

App Filter - Cabinet Width : Dish Traditional 24 in.

App Filter - Stainless Steel Interior : Yes

App Filter - Product Type : Dish Built-In Front Control

App Filter - WiFi Connect : Optional

App Filter - Food Disposer : Yes

App Filter - Bottle Wash : No

POWER / RATINGS

Power Connection : Optional cord kit (GPFCORD - WX09X70910, WX09X70911)

Calrod Heater Watts : 800/500

Volts/Hertz/Amps : 120V; 60Hz; 6.6A

WARRANTY

Labor Warranty : Limited 1-year entire appliance

Warranty Notes : See written warranty for full details

Parts Warranty : Limited 1-year entire appliance

WEIGHTS & DIMENSIONS

Height w/ Legs Retracted - Minimum Height : 33.375 in

Overall Depth : 24 in

Cabinet Width : 24 in

Net Weight : 99 lb

Overall Width : 23.75 in

Approximate Shipping Weight : 112 lb

Overall Height : 34 in

Height w/Legs Extended - Maximum Height : 34.625 in

• Energy Guide

• Installation Instructions

• Quick Reference Guide

• Quick Specs
