Cooling capacity

• 9,400/9,300 BTU

Dehumidification

• 2.7 pints/hour

Indoor fan CFM (high/low)

• 409/280

Fresh air vent CFM (fully open high fan)

• 38

Corrosion resistant

• Extends life of the unit in sea coast areas/corrosive environments

CAPACITY

CAPACITY : Cooling BTUH (MIN) 9300.0 Btu

CAPACITY : Cooling BTUH (MAX) 9400.0 Btu

CAPACITY : Cooling EER (BTUH / Watt) 11.8/11.8

CAPACITY : CFM Indoor Fan High 409

CAPACITY : CFM Indoor Fan Low 280

CAPACITY : Dehumidification (pts./hr.) 2.7

CAPACITY : Vent CFM (high fan at zero ESP) 38

CLAIMS & CERTIFICATIONS

CLAIMS & CERTIFICATIONS : CUL, UL, AHRI, NRCAN

FEATURES

Sensible Heat Ratio : 64%

Chassis Type : Slide-In

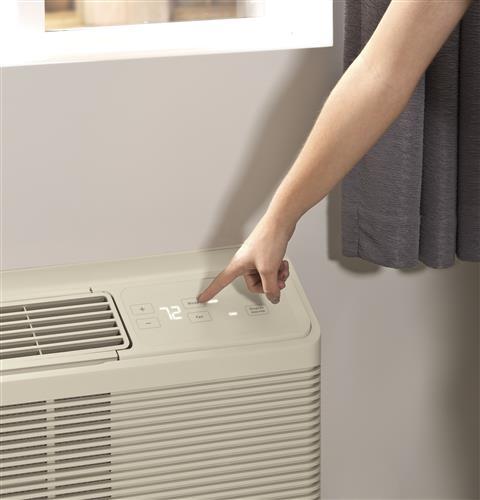

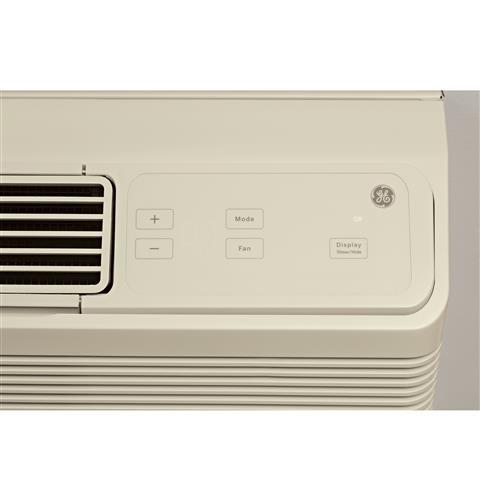

FEATURES : Control Type Coverless Backlit White LED Touch Controls

FEATURES : Corrosion Treated Yes

FEATURES : Discharge Grille 2-position

FEATURES : Electronic Micro Computer Control Yes

FEATURES : Fan Cycle Switch Yes

FEATURES : Fan Motor 2

FEATURES : Fan Speed Control Yes

Fan Speed Selections : Hi/Low Cooling, Hi/Low Fan Only, Hi/Low Heating

Filter Type : Rigid Frame, Slide-Out

FEATURES : Heat - Cool Yes

FEATURES : Louver Style Reversible

FEATURES : Manual Vent Control Hidden

FEATURES : Rotary Compressor Yes

FEATURES : Temperature Limiting Electronic 7-Step

FEATURES : Vent Control 3-position

Venting Features : Concealed Manual Vent Control, Outdoor Vent Control - 3 Positions, Vent Air Filter

Zoneline Features : "Sleep" Mode, "Smart Fan" Fan Cycle Control, Auto Power Recovery, Automatic Indoor Frost Control, Central Desk Control Compatibility, Freeze Sentinel Heat Sentinel, LCDI Power Cord, Proportional - Integral ID Airflow, Random Twist/Length Segment Tangential Blower, Remote Thermostat Compatibility, Universal Heaters, Weather Protected Electrical Components

FEATURES : Temperature Range 60 - 85 F

POWER / RATINGS

POWER / RATINGS : Cooling - Amperes; F.L. - Cooling 3.5/3.9

POWER / RATINGS : Cooling - Amperes; L.R. 21.0

POWER / RATINGS : Cooling - Watts 795/790

POWER / RATINGS : Power Factor 98

POWER / RATINGS : Voltage (MIN) 208.0 V

POWER / RATINGS : Voltage (MAX) 230.0 V

WARRANTY

Parts Warranty : Limited 1-year entire appliance, Limited 5-year sealed refrigerating system

Labor Warranty : Limited 1-year entire appliance, Limited 5-year sealed refrigerating system

WEIGHTS & DIMENSIONS

WEIGHTS & DIMENSIONS : Approximate Shipping Weight 110 lb

WEIGHTS & DIMENSIONS : Net Weight 110 lb

WEIGHTS & DIMENSIONS : Overall Depth 20 13/16 in

WEIGHTS & DIMENSIONS : Overall Height 16 in

WEIGHTS & DIMENSIONS : Overall Width 42 in
