Bright LED Lighting

• Find food faster in your refrigerator and freezer with bright LED lighting.

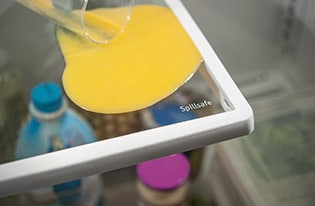

SpillSafe® Shelves

• Designed to keep spills contained, making cleanup a breeze.

Full-Width Deli Drawer

• Offers you another storage option that is conveniently located so you have easy access to foods such as deli meat and cheeses.

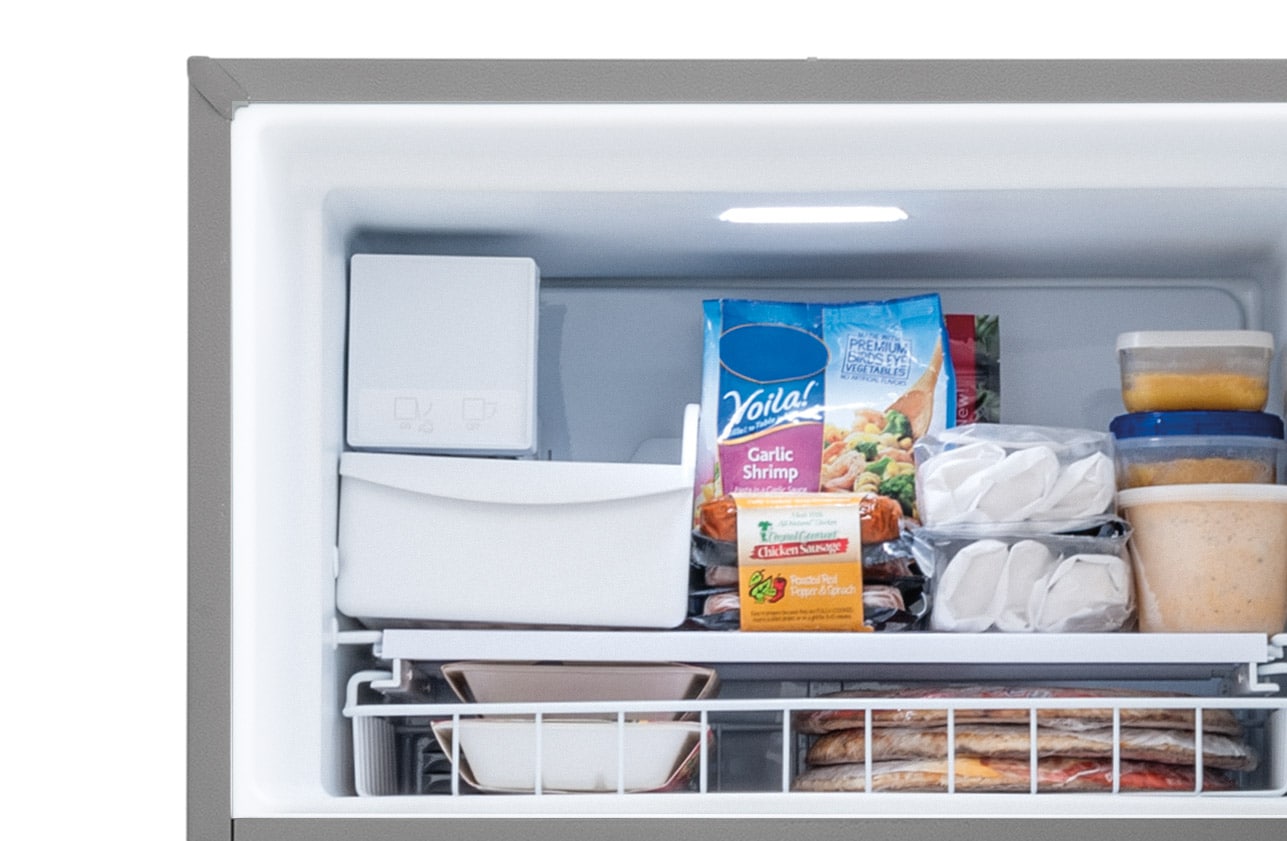

Ice-Ready

• Our refrigerator is ice-ready so you have the flexibility to easily add an icemaker later If you decide you want one.

Humidity-Controlled Crisper Drawers

• Our humidity-controlled crisper drawers are designed to keep your fruits and vegetables fresh so you don't have to worry about stocking up.

Full-Width Wire Freezer Shelf

• Gives you a way to organize items in your freezer better so you can find food quickly.

Capacities

Fresh Food Capacity (Cu. Ft.) : 15.3

Total Shelf Area (Sq. Ft.) : 22.4

Freezer Shelf Area (Sq. Ft.) : 6.3

Freezer Capacity (Cu. Ft.) : 5.1

Fresh Food Shelf Area (Sq. Ft.) : 16.1

Capacity (Cu. Ft.) : 20.4

Certifications & Approvals

NSF® Certified : No

CSA Listed : Yes

ETL Listed : No

CSA Certified : Yes

ENERGY STAR® Certified : No

UL Listed : Yes

ADA Compliant : No

Controls

Control Location : Mid Control

Controls : Mechanical

Dimensions: Exterior

Cabinet Height : 68-1/4"

Dimensions: Exterior : 31 3/4"

Depth : 31 3/4"

Electrical Specifications

Connected Load (kW Rating) @ 120V : 0.54

Specifications : FUSED ELECTRICAL SUPPLY IS REQUIRED. GROUNDED CIRCUIT IS REQUIRED. A TIME-DELAY FUSE OR CIRCUIT BREAKER AND SEPARATE CIRCUIT IS RECOMMENDED.

Minimum Circuit Required (Amps) : 15A

Voltage Rating : 120V 60Hz

Amps @ 120 Volts : 6

Power Supply Connection Location : Right Rear Bottom

Exterior Dimensions

Width between Door Edges : 30"

Width : 29 5/8"

Case Depth : 28-1/2"

Height to Top of Door : 66"

Depth with Doors and Handles : 34"

Height with Hinges and Covers : 69"

Case Width : 29-5/8"

Depth (with Door 90° Open) : 60"

Height : 69"

Exterior Specifications

Front Rollers : Static

Name Badge : Gallery

Reversible Door : Yes

Rear Rollers : Yes

Cabinet Finish : Textured

Door Closers : Yes

Door Stops : Yes

Door Style : UltraSoft™

Freezer Specifications

Fixed Door Bins : 2 Clear

Freezer Lighting : LED

Fixed Freezer Shelves : 1 Full-Width Wire

Fresh Food

Humidity Controls : 2

Cantilever Shelves : No

Dairy Compartment : No

Sliding Shelves : 2 Full-Width SpillSafe®

Meat / Deli Drawer : Full-Width Pantry

Fixed Door Bins : 3 Full-Width White

Lighting Design : LED

Slide Under Flip Up Shelf : No

Crispers : 2 Clear

General Specifications

Reconditioned : No

Garage Ready : No

Annual Energy (kWH) : 430

Made In USA : No

PROP 65 Label : No

Condenser Type : Dynamic

Shipping Weight (lbs) : 220

Frost Free : Yes

Annual Energy Cost (.12 / kWH) : 52

Ice Maker

Ice Maker : Optional

Ice Maker Type : IM-116

• Complete Owner's Guide

• Complete Owner's Guide

• Complete Owner's Guide

• Wiring Diagram

• Installation Instructions

• Installation Instructions

• Installation Instructions

• Product Specifications Sheet

• Energy Guide
