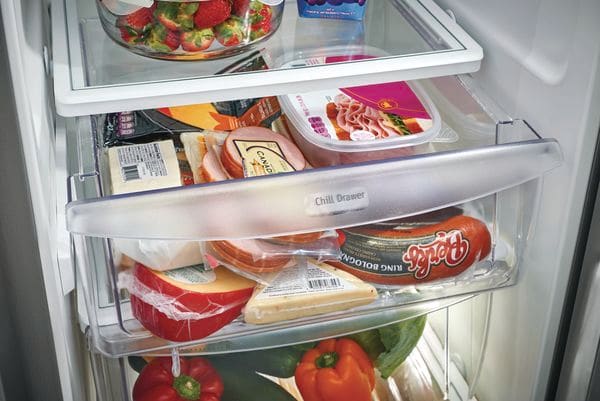

Chill Drawer

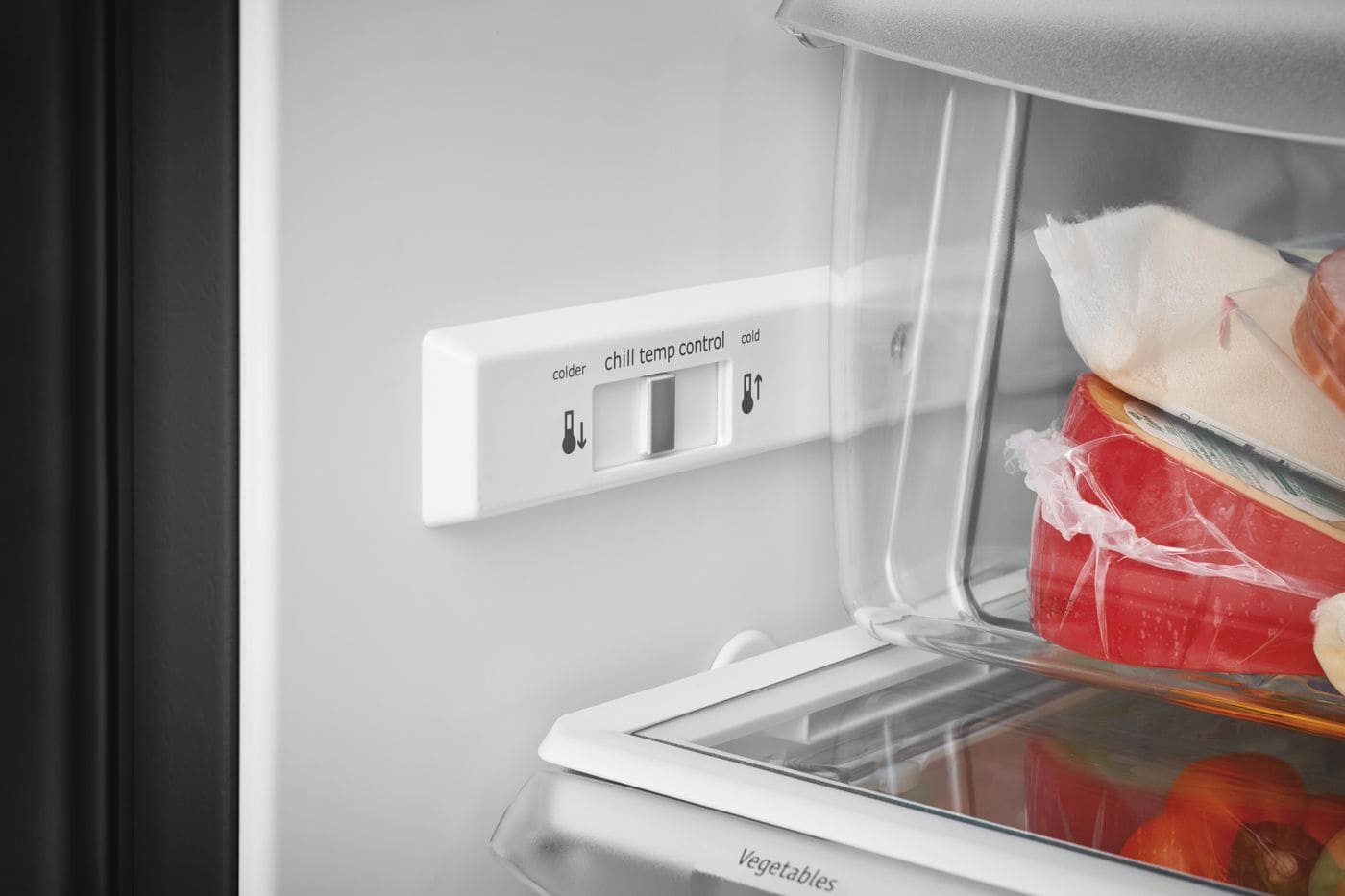

• Cold air from the freezer is used to quickly cool food and drinks. Includes temperature control settings.

Store-More™ Freezer Capacity

• Improved design give you more usable freezer capacity than ever before.

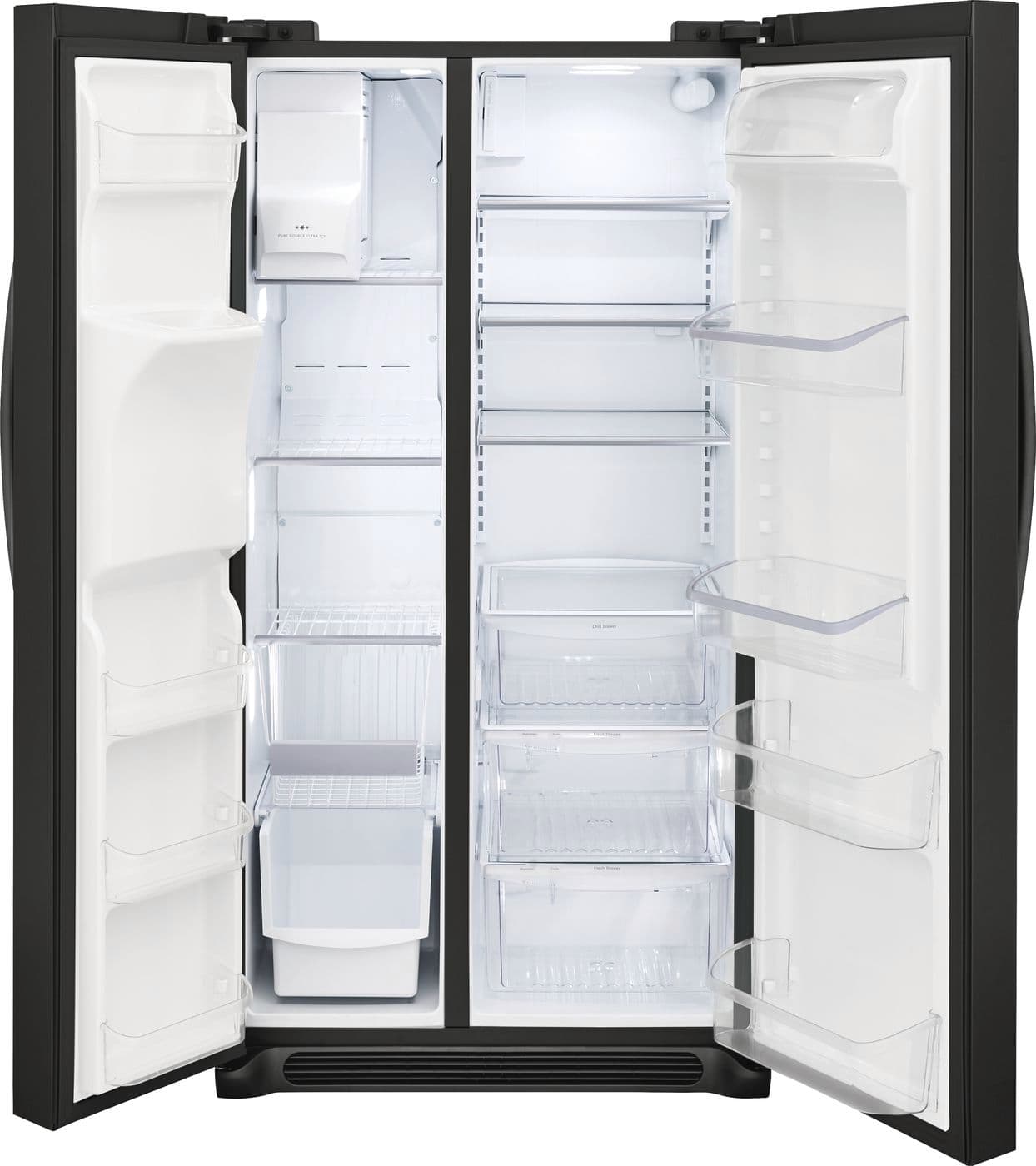

Adjustable Interior Storage

• Over 100 ways to organize and customize your refrigerator. Details vary by model.

PureSource Ultra®II Ice & Water Filtration

• Discover how our genuine filtration works to keep your water cleaner. PureSource Ultra® II Water Filters remove 99.3% of lead and 99.9% of cysts from your household water.

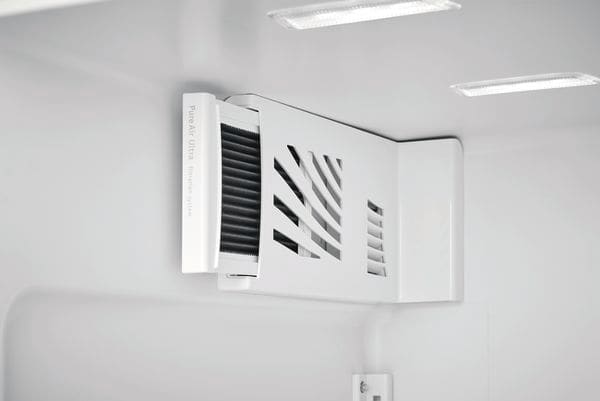

PureAir Ultra® Filters

• Keeps the air cleaner and fresher.

Store-More™ Humidity-Controlled Crisper Drawers

• Keep your fruits and vegetables fresh in our humidity-controlled crisper drawers.

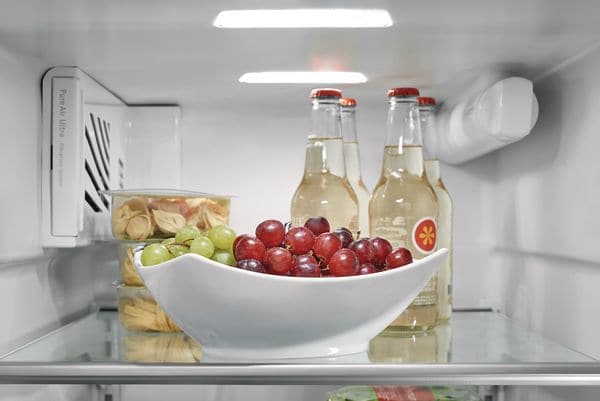

Store-More™ Glass Shelves with Metallic Trim

• More space to store your food with edge-to-edge shelves.

Multi Level LED Lighting

• Corner to corner LED lighting throughout the refrigerator for better visibility.

Store-More™ Gallon Door Bins

• Door storage gives you room for larger items — like a gallon of milk.

Capacities

Total Shelf Area (Sq. Ft.) : 24.8

Freezer Shelf Area (Sq. Ft.) : 6.1

Freezer (Cu. Ft.) : 9.03

Total Capacity - Cu. Ft. : 25.5

Fresh Food Capacity (Cu Ft) : 16.54

Fresh Food Shelf Area(Sq Ft) : 18.7

Certifications & Approvals

ADA Compliant - All Brands : Yes

ENERGY STAR® Certified : No

CSA Certified : Yes

Sabbath Mode : Yes

Controls

Water Filter Change Indicator Light : Yes

Control Type : Express-Select®

Control Buttons : 11

Air Filter Indicator (ref) : Yes

Control Location : Dispenser

Dispenser

Dispenser Type : Flush Single Paddle

Crushed Ice : Yes

Light Control : Yes

Cube Ice : Yes

Temperature Display On/Off : Yes

Water : Yes

Electrical Specifications

Amps @ 120 Volts : 8.5

Voltage Rating : 120V 60Hz

Connected Load @ 120V : 1.02

Connection Location : Right Rear Bottom

Min Circuit Required : 15A

Exterior Dimensions

Width : 36"

Cabinet Depth : 28-3/4"

Depth(w/ 90° Door Open) : 50"

Cabinet Height : 68-5/8"

Cabinet Depth (w/Handle) : 35-7/8"

Height : 69-7/8"

Depth : 33-3/8"

Cabinet Width Door Edge : 36"

Cabinet Height (w/Covers) : 69-7/8"

Cabinet Depth (w/ Door) : 33-3/8"

Height (Top of Door) : 70-1/8"

Case Width : 35-7/8"

Exterior Specifications

Rear Rollers : Yes

Door Design : Tall

Door Closers : Yes

Door Hinge Covers : Hidden

Name Badge : Gallery

Door and Handle Design : Gallery

Cabinet Finish : Textured

Door Stops : Yes

Front Rollers : Adjustable

Door Style : Curved Door

Freezer Specifications

Fixed Door Bins : 4 Clear

Freezer Lighting : Bright

Fixed Shelves : 2 Wire

Pizza Shelf : Yes

Full-freezer Baskets : 1 Plastic 1 Wire

Ice Cream Shelf : Yes

Fresh Food

Lighting Levels : Dual-Level

Fixed Door Bins : 2 Two-Liter Clear

Drawer Trims : Yes

Humidity Controls : 2

Fixed Shelves : 3 StoreMore Glass shelves with metallic trim

Dairy Compartment : Clear

Door Ajar Alarm : No

Upper Crisper : Clear

Air Filter Location : Rear

Energy Saver Plus : Yes

Water Filter : PureSource® Ultra II

Lighting Design : Bright

Lower Crisper : Clear

1-Gallon Adj Door Bins : 2 Clear

Water Filter Location : Top Right Rear

Cantilever Shelves : Yes

Drawer Trim Color : White

Meat/Deli Drawer : Stacked Deli

Power Failure Alert : Yes

Air Filter : PureAir Ultra®

Temperature Alert : Yes

General Specifications

Water Inlet Location : Left Rear Bottom

Sound Package : Quiet Pack

PROP 65 Label : No

Annual Energy (kWH) : 647

Condenser Type : Dynamic

Shipping Weight (lbs) : 293

Frost-Free Performance : Yes

Made In USA : No

Ice Maker

Ice Maker On/Off : Yes

Ice Maker : Yes

Refrigerator

1-Gallon Door Bins : 2 Gallon
