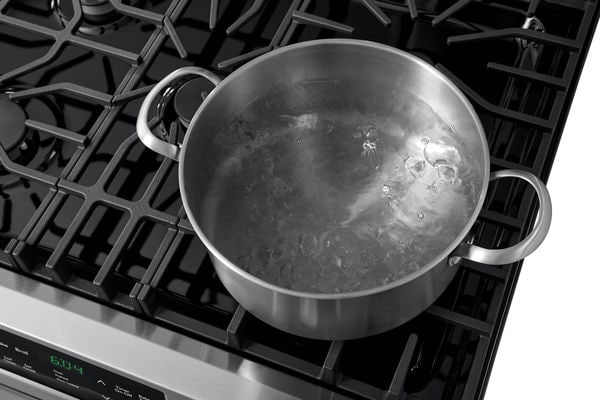

Quick Boil

• Get meals on the table faster with our 17,000 BTU burner - water boils faster than the traditional setting.

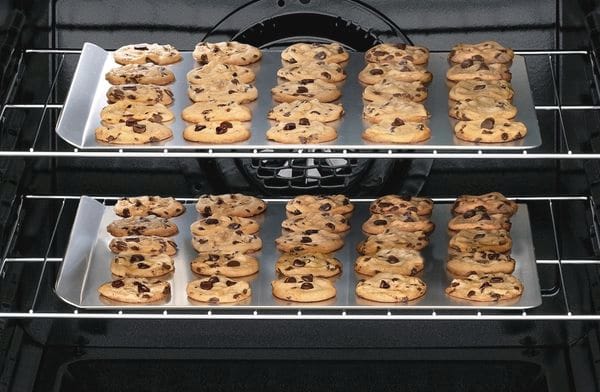

Quick Bake Convection

• Bake faster and more evenly with Quick Bake Convection.

Large Capacity

• Our large capacity oven gives you room to cook more at once.

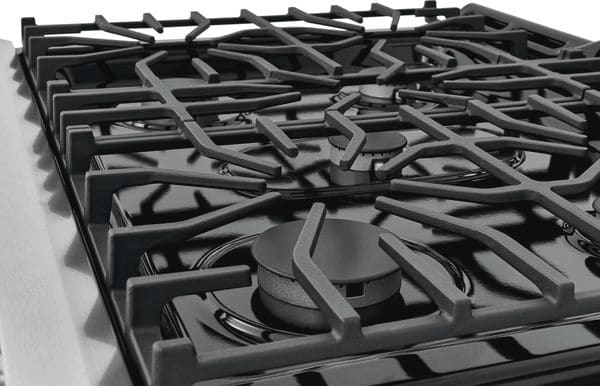

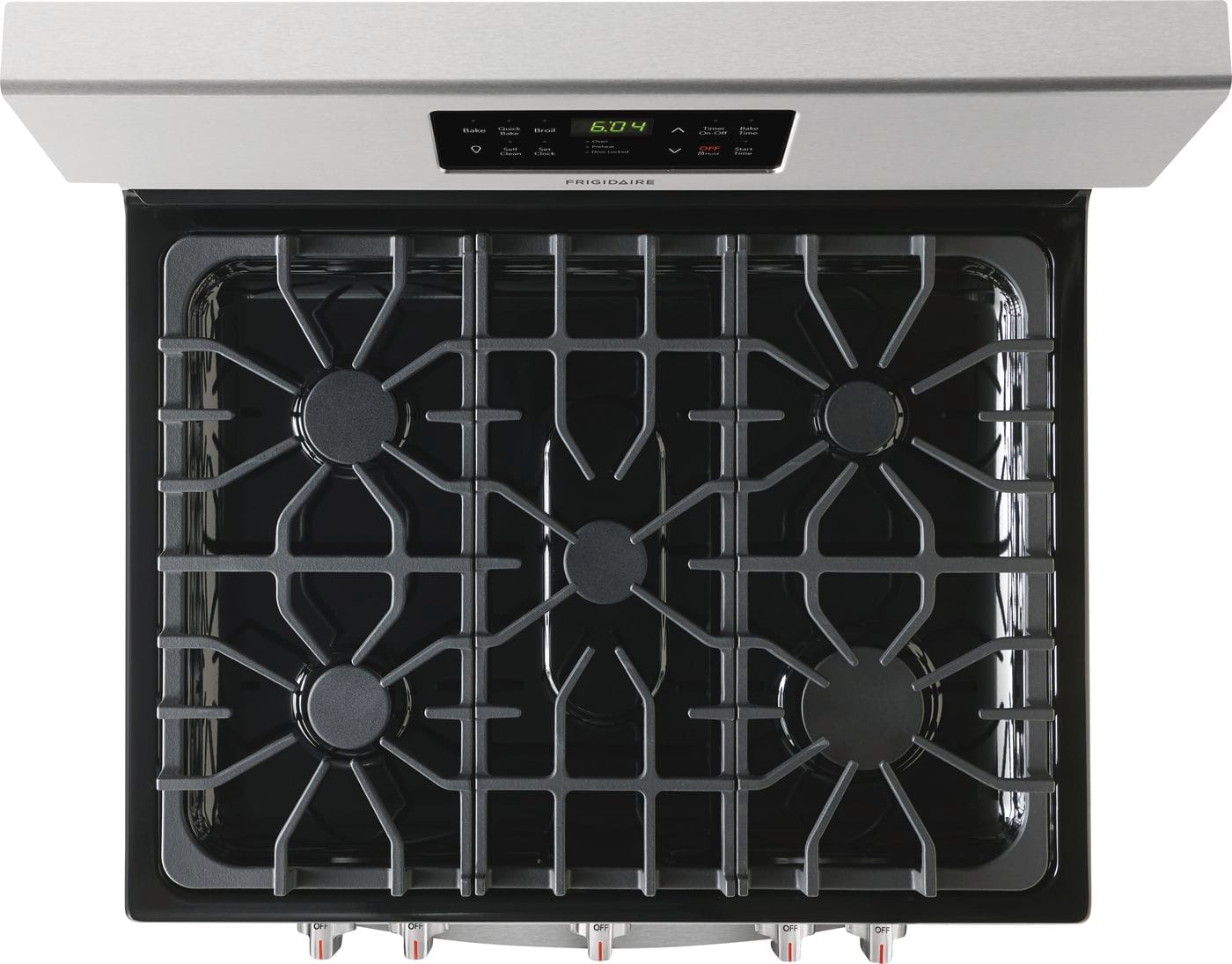

Continuous Corner-to-Corner Grates

• Move heavy pots & pans without lifting with continuous corner-to-corner grates.

Sealed Gas Burners

• Enjoy easier cleanup and a burner that stays looking great.

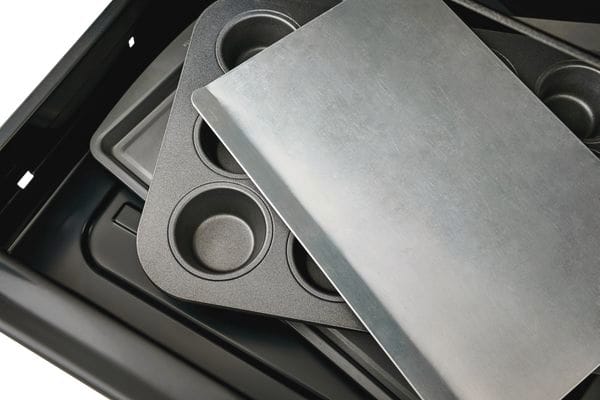

Store-More™ Storage Drawer

• With the Store-More™ Storage Drawer, you will have extra space to store your cookware.

Delay Clean

• Set the oven to begin cleaning on your schedule.

Accessories

Probe : No

Capacities

Total Capacity - Cu. Ft. : 5

Certifications & Approvals

Sabbath Mode : No

Agency Approval : CSA Certified

CSA Certified : Yes

Controls

Auto Shut-Off : Yes

Display Type : Digital (Green LED)

Cooking Controls

Door Lock : Yes

Broil : Yes

Preheat : Integrated with Bake

Cancel Button : Yes

Bake : Yes

Star-K® Certification : No

Temperature Display : Yes

Probe : No

Lockout : Yes

Display Type : Membrane

Timer : Yes

Quick Bake : Yes

Cooktop

Knob Color : Stainless Appearance

Cooktop Specifications

Right Rear : 5000 BTU

Electronic Ignition : Yes

Center : 9500 BTU (Round)

Right Front : 17000 BTU

Left Rear : 12000 BTU

Grate Color : Black Matte

Knob Type : Color Coordinated

Cooking Surface : Color-Coordinated Porcelain

Grate Material : Cast Iron

Grates : 3 Continuous Grates

Left Front : 9500 BTU

Drawer

Handle : Stainless Steel

Drawer Functionality : Storage

Electrical Specifications

Voltage Rating : 120V 60Hz

Minimum Circuit Required (Amps) : 5A

Exterior

Manifold Finish : Stainless Steel

Door Finish : Stainless Steel

Cabinet Color : Black

Handle Color : Stainless Steel

Drawer Finish : Stainless Steel

Cooktop Finish : Black Porcelain

Exterior Dimensions

Depth : 25 3/4"

Height : 47"

Depth (with Door 90° Open) : 46 9/16"

Width : 29-7/8"

General Specifications

PROP 65 Label : Yes

Adjustable Leveling Legs : 4 Adjustable

Internal Specifications

Oven 1 Interior Color : Slate Blue

Oven 1 Interior Height : 18-5/8"

Oven 1 Interior Depth : 19-1/8"

Oven 1 Interior Width : 24-3/8"

Oven Specifications

Bake : 18000 BTU

Oven 1 Type : Main

Oven 1 Broiling System : Vari-Broil™ High/Low

Oven 1 Window : Extra-Large Visualite®

Oven 1 Rack Positions : 6 positions

Oven 1 Broil : 13500 BTU

Baking System : Even Baking Technology

Oven 1 Rack Configuration : 2 Standard

Oven 1 Convection System : Quick Bake

Hidden Bake Element : Yes

• Complete Owner's Guide

• Complete Owner's Guide

• Wiring Diagram

• Installation Instructions

• Installation Instructions

• Installation Instructions

• Product Specifications Sheet
