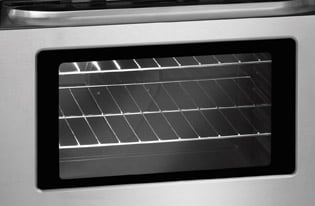

Color-Coordinated Oven Door with Large Window

• Our large oven window makes it easier to check on the status of your dish without having to open the oven door.

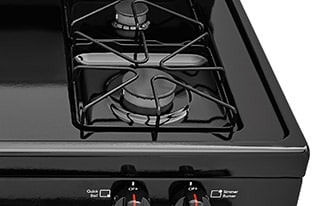

Sealed Gas Burners

• Enjoy easier cleanup and a burner that stays looking great.

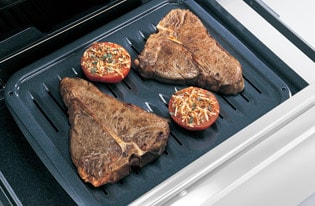

Broil and Serve Drawer

• Easily toast, brown, or crisp the outside of your food at the touch of a button.

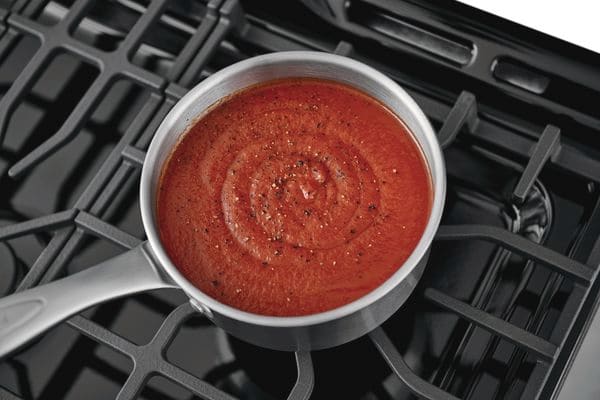

Low Simmer Burner

• Perfect for cooking delicate foods and sauces.

Electronic Kitchen Timer

• Times up to 12 hours (control panel colors vary by model)

• Attractive Stainless Steel Exterior

Capacities

Capacity (Cu. Ft.) : 4.2

Certifications & Approvals

ADA Compliant : No

Agency Approval : CSA Certified

Sabbath Mode (Star-K® Certified) : No

Cooking Controls

Bake : Yes

Broil : Broil Variable

Clear Button : No

Clock : Yes

Up/Down Keypad : Yes

Self-Clean : No

Temperature Probe : No

Timed Cook Option : No

Timed Shut-off : No

Timer : Yes

Cooktop Specifications

Cooking Surface : Sealed Burners

Grate Color : Black Gloss

Grate Material : Steel

Grates : Individual

Knob Color : Black

Left Front : 9500 BTU

Left Rear : 9500 BTU

Right Front : 14000 BTU

Right Rear : 5000 BTU

Drawer

Drawer Functionality : Broil & Serve™

Handle : Short Handle

Electrical Specifications

Min Circuit Required : 5A

Power Supply Connection Location : Rear Centerline Lower

Voltage Rating : 120V 60Hz

Exterior Dimensions

Height : 46 - 9/16"

Width : 29-7/8"

Depth : 25-3/4"

Depth (with Door 90° Open) : 45"

Exterior Specifications

Control Panel Finish : Black with Stainless Overlay

Cooktop Finish : Black Porcelain

Door Finish : Stainless Steel with Black Glass

Drawer Finish : Black with Stainless Overlay

Exterior Finish : Painted

Handle Color : Stainless Steel

Manifold Finish : Black Painted

General Specifications

Leveling Legs : 4 Adjustable

PROP 65 Label : Yes

Oven Specifications

Oven 1 Bake : 18000 BTU

Oven 1 Baking System : Even Baking Technology

Oven 1 Broil : 16000 BTU

Oven 1 Broiling System : Vari-Broil™ High/Low

Oven 1 Cleaning System : Manual Clean

Oven 1 Interior Depth : 18 - 3/4"

Oven 1 Interior Height : 17"

Oven 1 Interior Lighting : 1 Incandescent

Oven 1 Interior Width : 23"

Oven 1 Rack Configuration : 2 Standard

Oven 1 Rack Positions : 5 positions

Oven 1 Type : Main

• Complete Owner's Guide

• Wiring Diagram

• Installation Instructions

• Installation Instructions

• Installation Instructions

• Product Specifications Sheet
