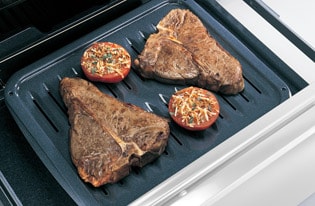

Broil and Serve Drawer

• Easily toast, brown, or crisp the outside of your food at the touch of a button.

Low Simmer Burner

• Perfect for cooking delicate foods and sauces.

• LP Gas Conversion Option

• Manual Clean Oven

Capacities

Capacity (Cu. Ft.) : 4.2

Certifications & Approvals

ADA Compliant : No

Agency Approval : CSA Certified

Sabbath Mode (Star-K® Certified) : No

Cooking Controls

Bake : Yes

Broil : Broil Variable

Clear Button : No

Self-Clean : No

Temperature Probe : No

Timed Cook Option : No

Timed Shut-off : No

Timer : Yes

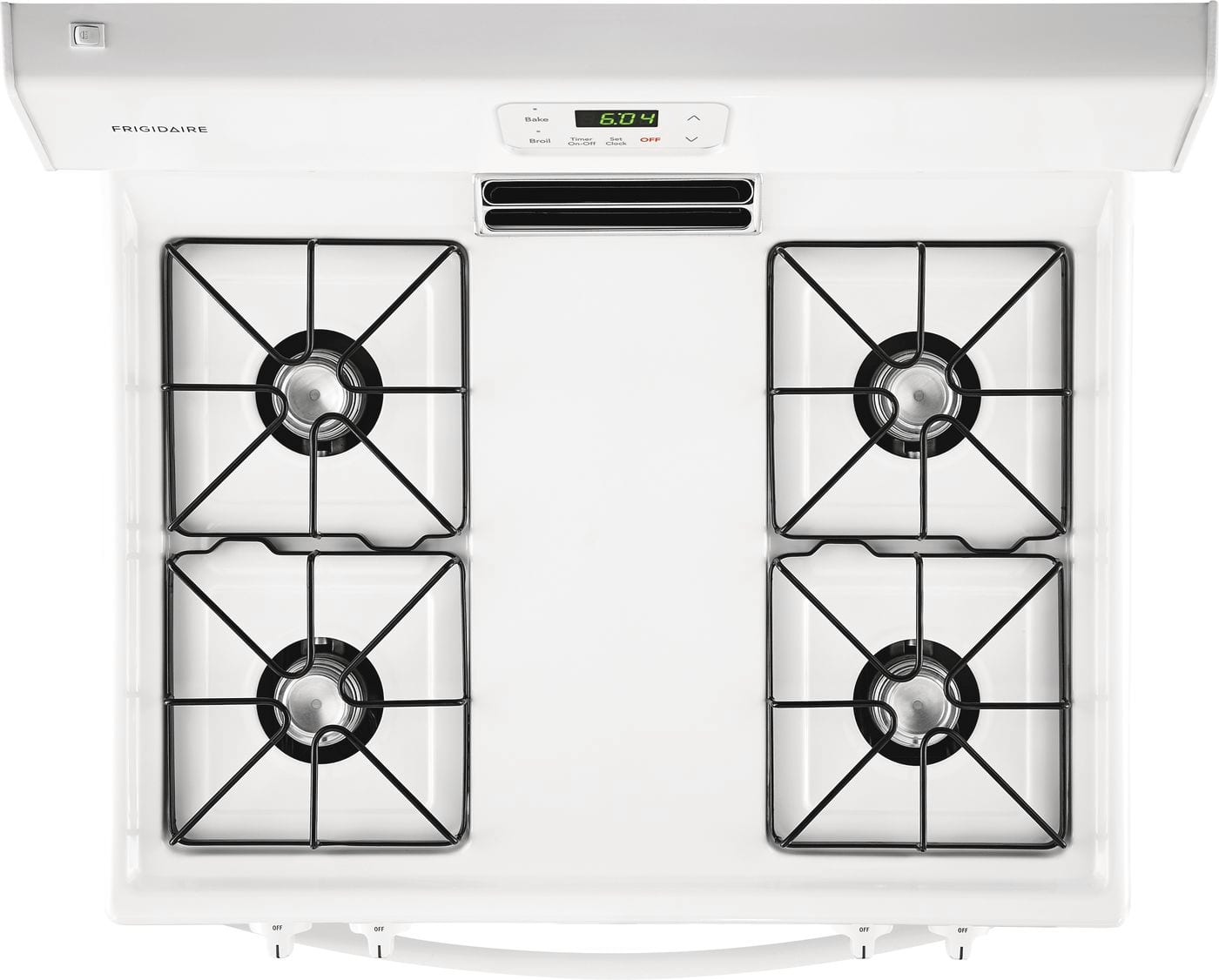

Cooktop Specifications

Cooking Surface : Open Burners

Grate Color : Black Gloss

Grate Material : Steel

Grates : Individual

Knob Color : White

Knob Type : Color Coordianted

Left Front : 9000 BTU

Left Rear : 9000 BTU

Right Front : 9000 BTU

Right Rear : 9000 BTU

Drawer

Drawer Functionality : Broil & Serve™

Handle : Short Handle

Electrical Specifications

Min Circuit Required : 5A

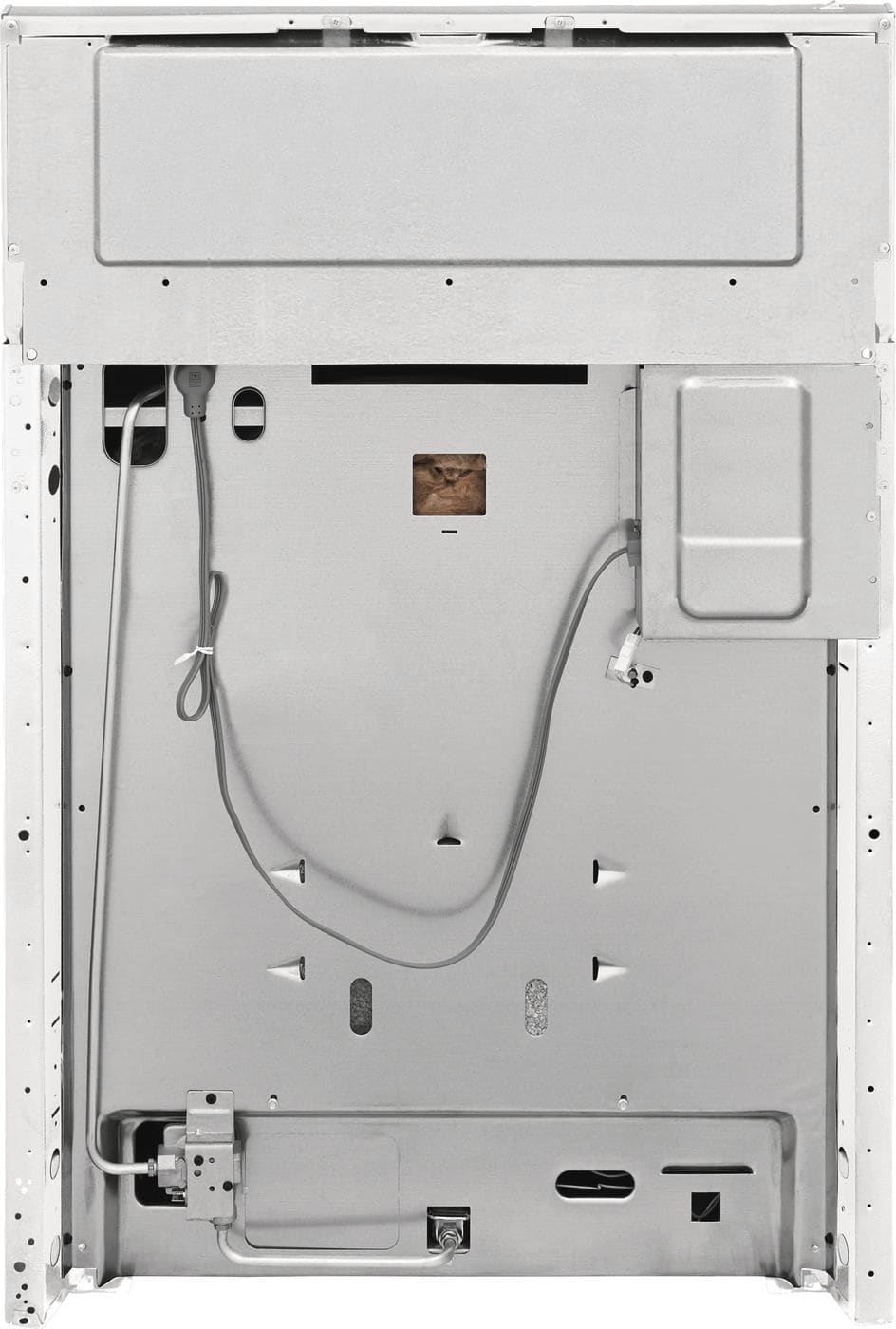

Power Supply Connection Location : Rear Centerline Lower

Voltage Rating : 120V 60Hz

Exterior Dimensions

Height : 45-3/16"

Width : 29-7/8"

Depth : 25-3/4"

Exterior Specifications

Control Panel Finish : White Painted

Cooktop Finish : White Porcelain

Door Finish : White Painted

Drawer Finish : White Painted

Exterior Finish : Painted

Handle Color : White

Manifold Finish : White Painted

Manifold Panel : Color-Coordinated

General Specifications

Leveling Legs : 4 Adjustable

PROP 65 Label : Yes

Oven Specifications

Oven 1 Bake : 18000 BTU

Oven 1 Baking System : Even Baking Technology

Oven 1 Broil : 16000 BTU

Oven 1 Broiling System : Vari-Broil™ High/Low

Oven 1 Cleaning System : Manual Clean

Oven 1 Interior Depth : 18-3/4"

Oven 1 Interior Height : 17"

Oven 1 Interior Lighting : 1 Incandescent

Oven 1 Interior Width : 23"

Oven 1 Rack Configuration : 2 Standard

Oven 1 Rack Positions : 5 positions

Oven 1 Type : Main

Oven Window : Standard Visualite®

• Complete Owner's Guide

• Wiring Diagram

• Installation Instructions

• Installation Instructions

• Installation Instructions

• Product Specifications Sheet
