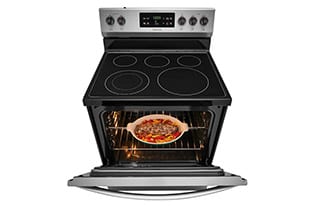

Quick Bake Convection

• Bake faster and more evenly with Quick Bake Convection.

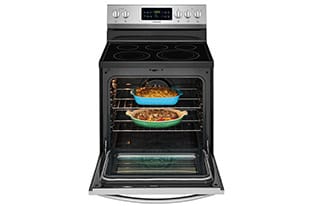

Even Baking Technology

• Our even baking technology ensures even baking every time.

One-Touch Self Clean

• Your oven cleans itself - so you don't have to. Self clean options available in 2, 3 and 4-hour cycles.

Quick Boil

• Get meals on the table faster with our 3,000W element - water boils faster than the traditional setting.

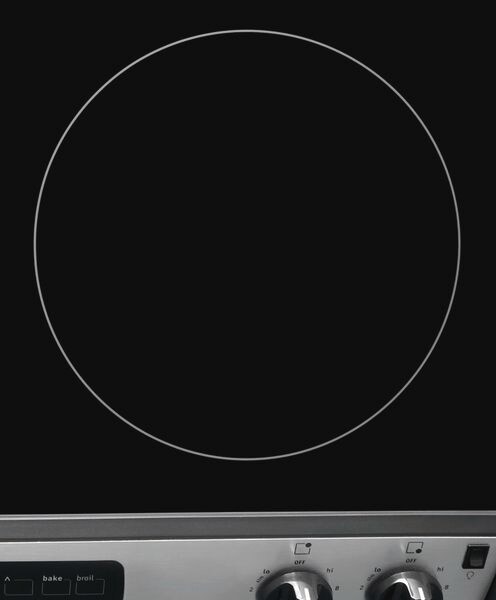

Extra-Large Element

• With our extra-large 12" element, you have more flexibility to fit larger pots and pans.

SpaceWise® Expandable Elements

• Flexible elements expand to meet your cooking needs - big or small.

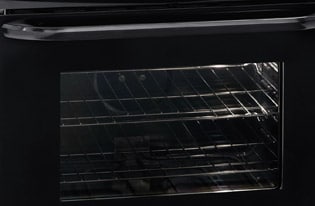

Extra-Large Window

• Check on the status of your dish without having to open the oven door.

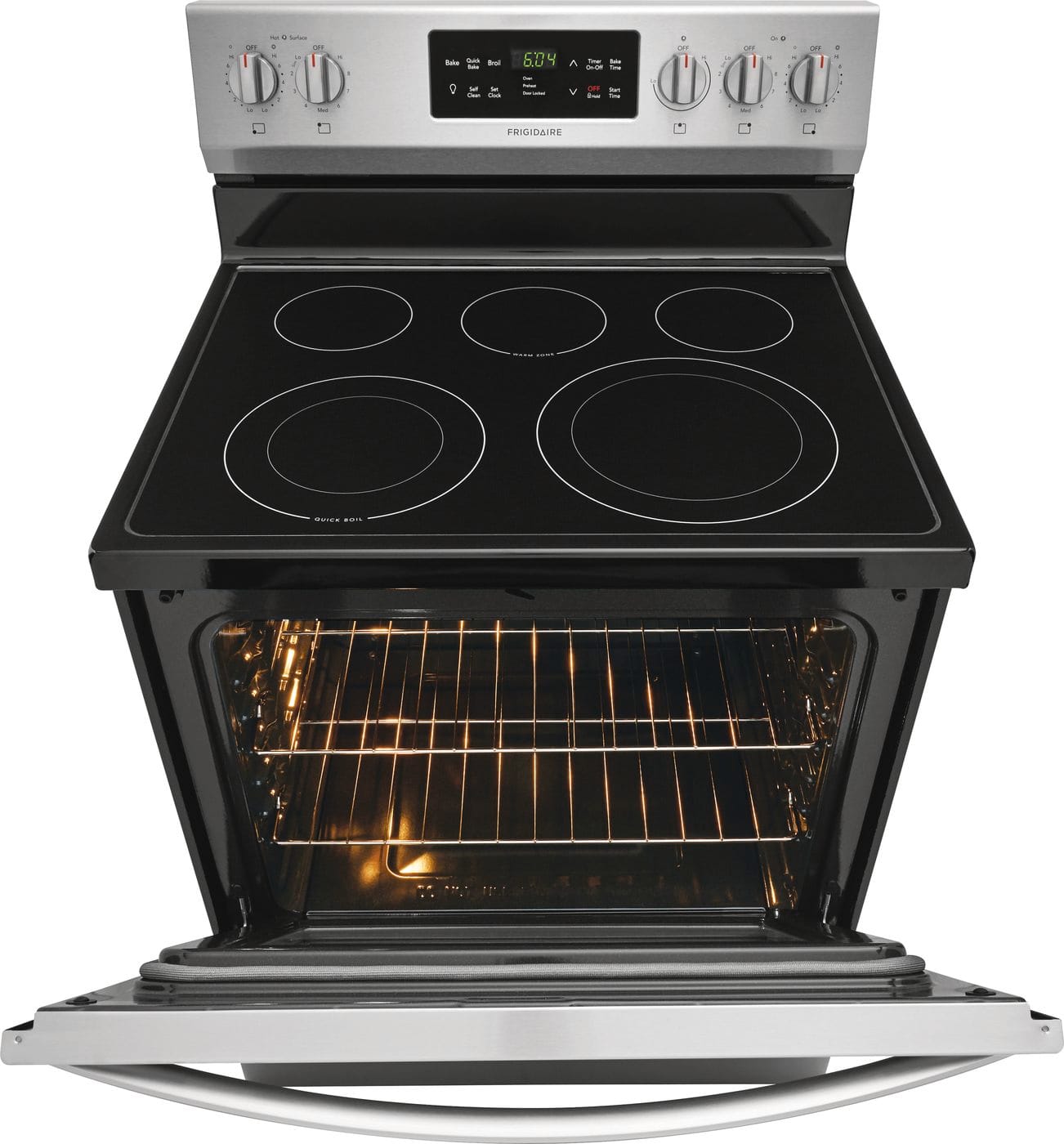

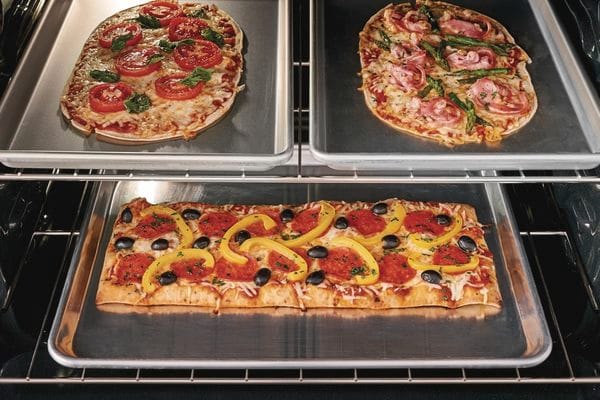

Large Capacity

• Our large capacity oven gives you room to cook more dishes at once.

Keep Warm Zone

• Keep food warm until everything — and everyone — is ready.

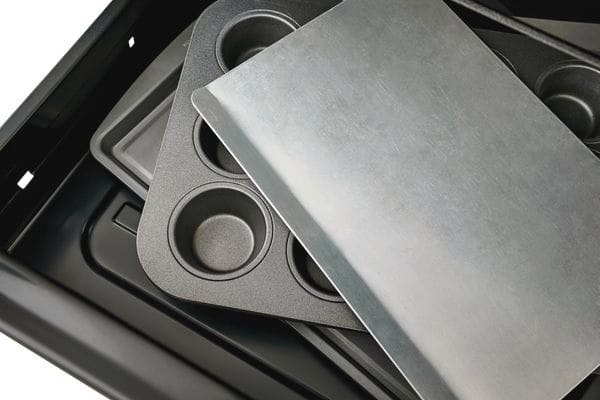

Store-More™ Storage Drawer

• With the Store-More™ Storage Drawer, you will have extra space to store your cookware.

Accessories

Griddle : Optional

Capacities

Total Capacity : 5.4

Certifications & Approvals

Sabbath Mode : No

ADA Compliant : No

Agency Approval : UL

ETL Listed : No

NSF® Certified : No

Controls

Auto Shut-Off : Yes

Cooking Controls

Display Type : Membrane

Preheat : Integrated with Bake

Control Lock : Yes

Automatic Oven (Delay Cook & Off) : Yes

Delay Clean : Yes

Lower Drawer Controls : Storage

Cancel : Yes

Broil : Broil Variable (400 - 500°F)

Timed Bake : Yes

Lockout : Yes

Probe : No

Temperature Display : Yes

Timer : Yes

Bake : Yes

Cooktop

Right Front : 9" to 12" - 1800/3000 Watts

Hot-Surface Indicator Light : 1 Clear

Cooking Surface : Upswept Black Smoothtop

Warm & Serve Zone Light : 1 Clear

Element On Indicator Light : 1 Clear

Center Rear : Warming Zone - 100 Watts

Right Rear : 6" - 1200 Watts

Left Front : 6" to 9" - 1400/3000 Watts

Left Rear : 6" - 1200 Watts

Knob Type : Plastic

Knob Color : Color-Coordinated

Dimensions: Cut-Out

Cut-Out Height : 48" - 49"

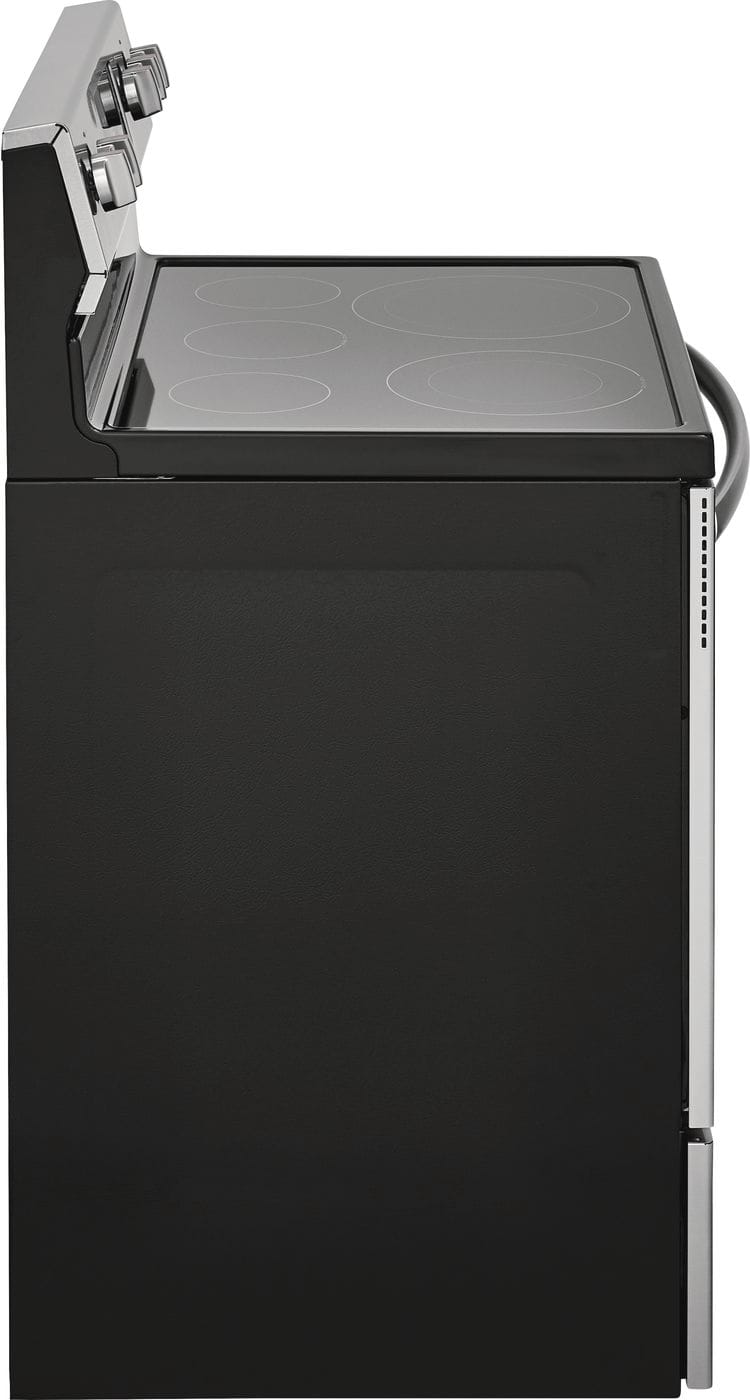

Dimensions: Exterior

Depth (with Door 90° Open) : 48-1/4"

Height : 47-3/4"

Width : 29-7/8"

Depth : 28-13/32"

Drawer

Handle : Integrated

Drawer Functionality : Storage

Electrical Specifications

Power Supply Connection Location : Rear Centerline Lower

Amps @ 240 Volts : 11.5 / 8.5

Voltage Rating : 120V / 240V or 120V / 208V 60Hz

Minimum Circuit Required (Amps) : 40A

Exterior

Cabinet Color : Color-Coordinated

Cooktop Finish : Color-Coordinated Porcelain

Exterior Specifications

Control Panel Finish : Stainless Steel

Handle Color : Stainless Steel

Door Finish : Glass with Stainless Steel

General Specifications

Adjustable Leveling Legs : 4 Adjustable

PROP 65 Label : No

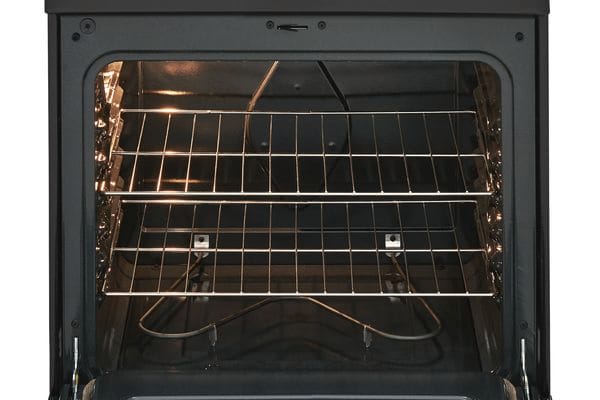

Oven

Oven 1 Window : Extra-Large Visualite®

Oven 1 Interior Height : 19-3/4"

Oven 1 Rack Configuration : 2 Standard

Hidden Bake Element : Yes

Oven 1 Interior Depth : 19-1/8"

Oven 1 Type : Main

Oven 1 Rack Positions : 6 positions

Broil : 3600 Watts

Bake : 3500 Watts

Baking System : Even Baking Technology

Broil System : Vari-Broil™ High/Low

Oven 1 Interior Width : 24-3/8"

• Complete Owner's Guide

• Wiring Diagram

• Installation Instructions

• Installation Instructions

• Installation Instructions

• Product Specifications Sheet
