Delay Clean

• Set the oven to begin cleaning on your schedule.

One-Touch Self Clean

• Your oven cleans itself - so you don't have to. Self clean options available in 2, 3 and 4-hour cycles.

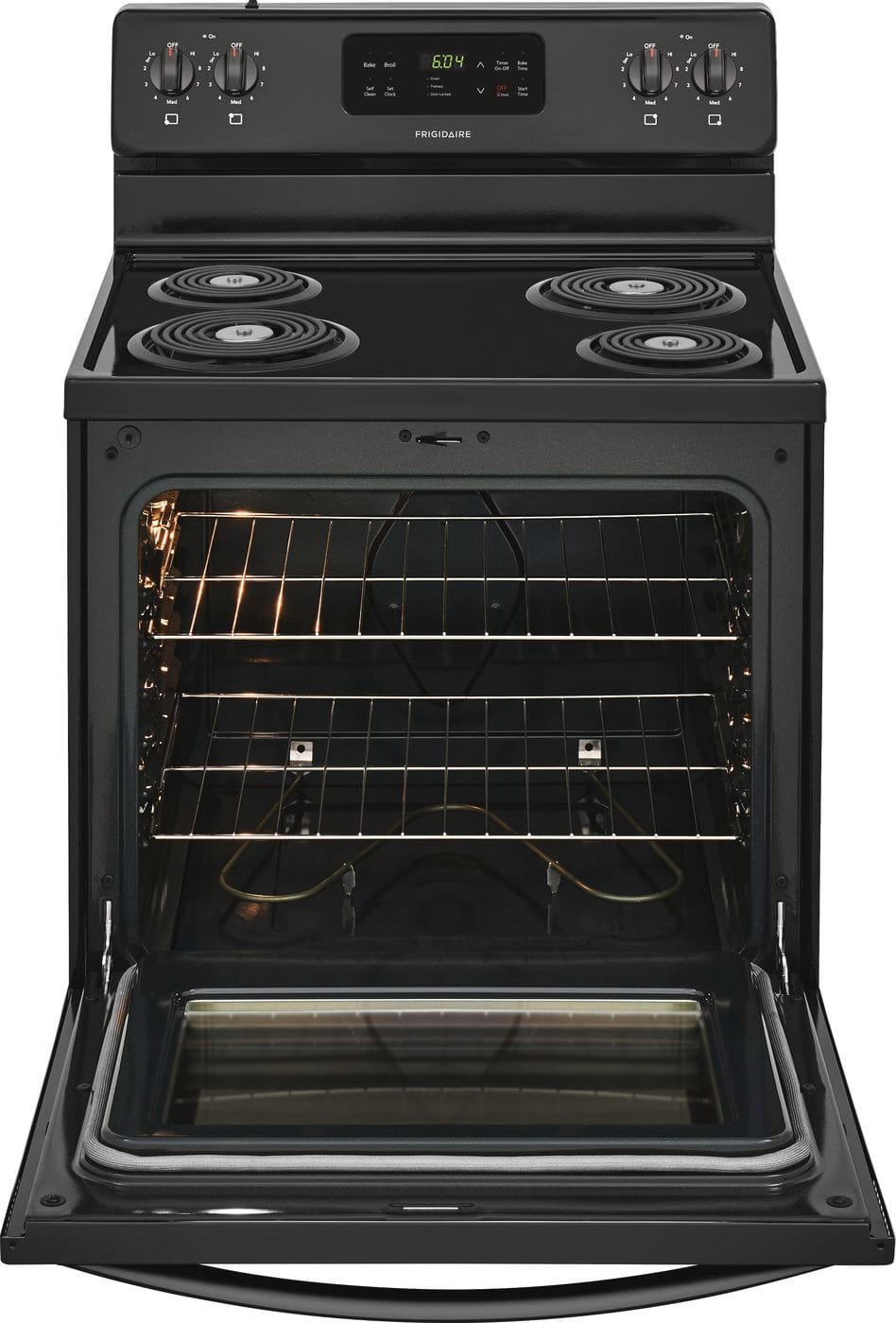

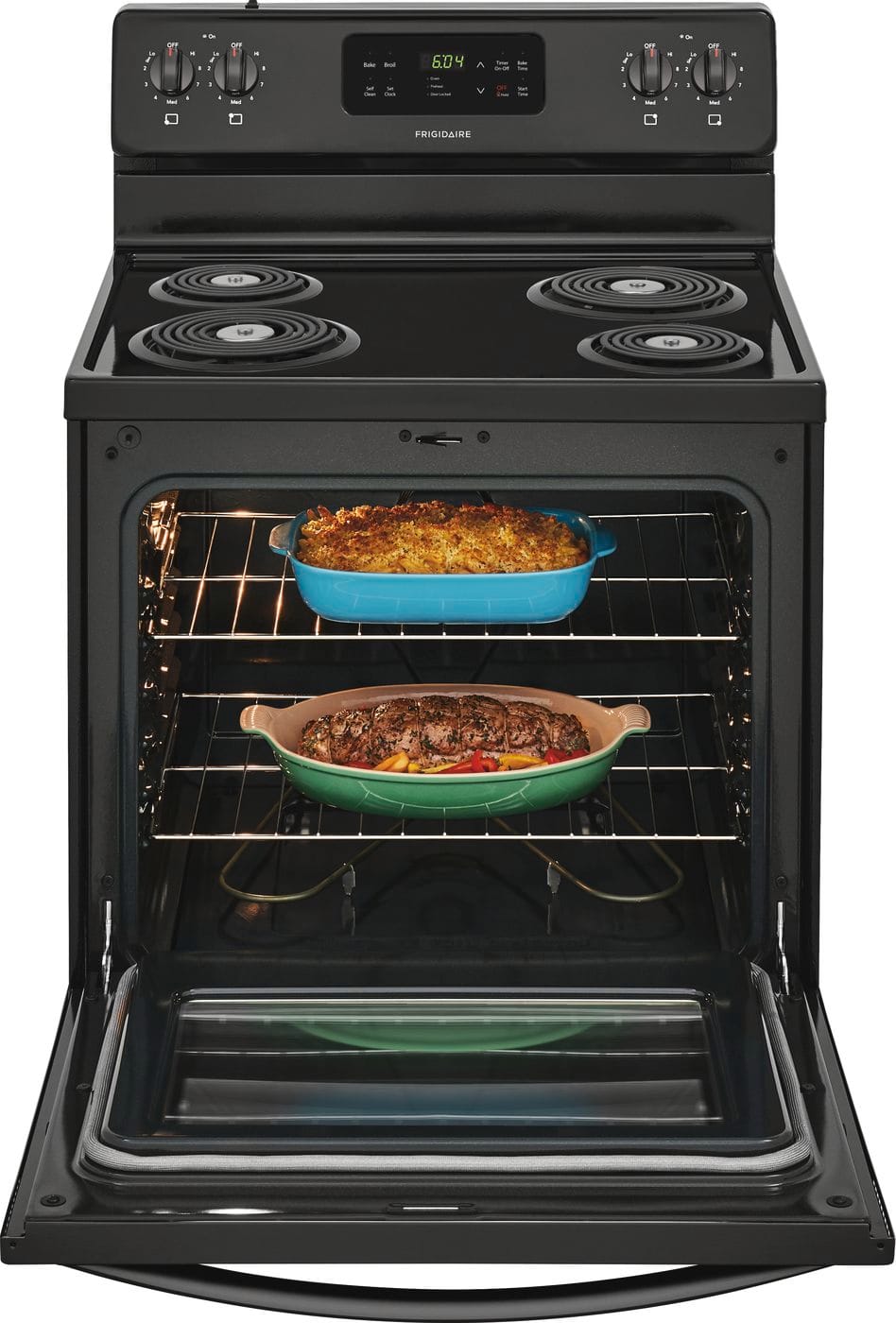

Large Capacity

• Our large capacity oven gives you room to cook more dishes at once.

Auto Shut-Off

• As an extra safety measure, the oven will automatically shut off after 12 hours.

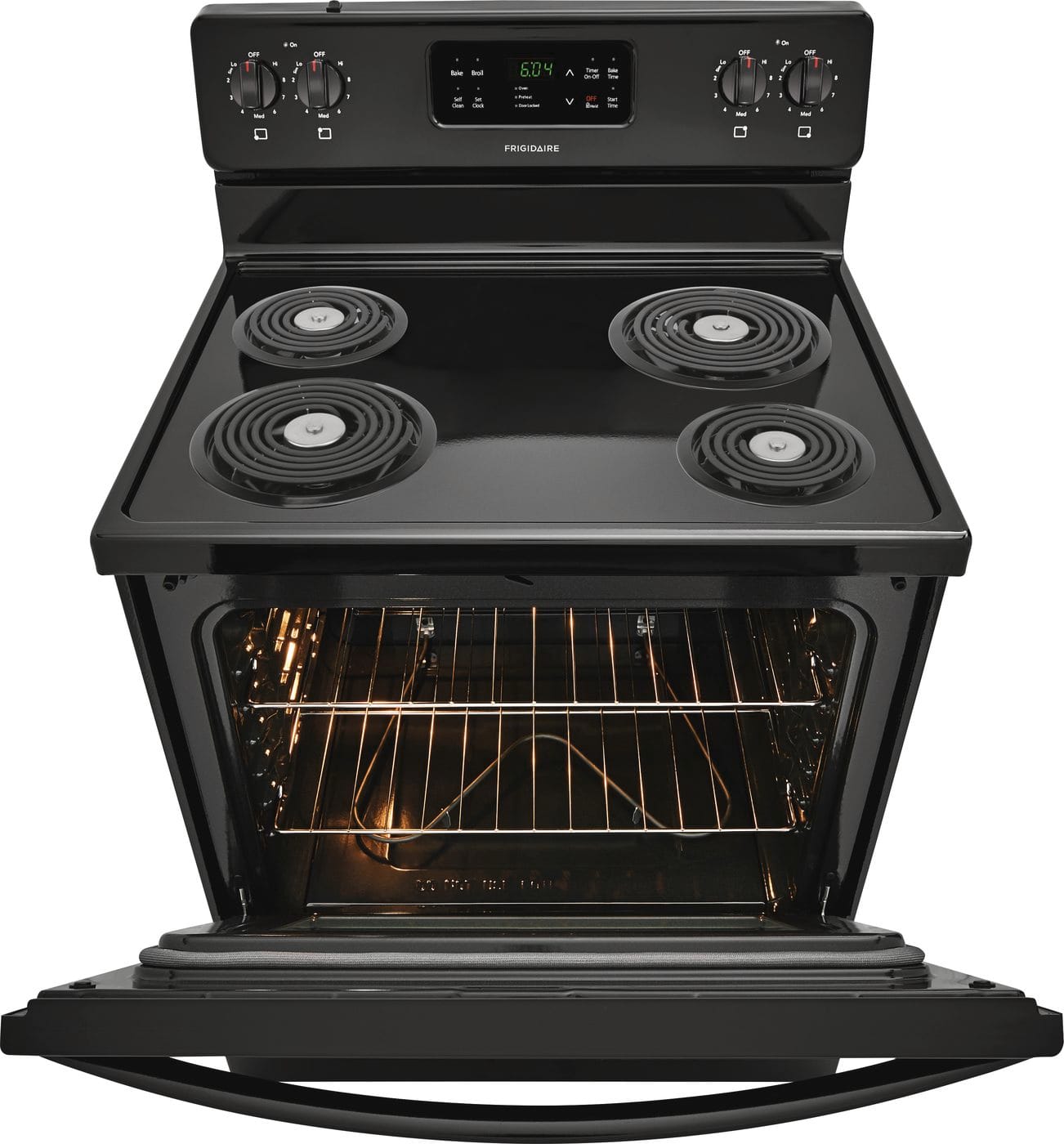

Color-Coordinated Oven Door with Large Window

• Our large oven window makes it easier to check on the status of your dish without having to open the oven door.

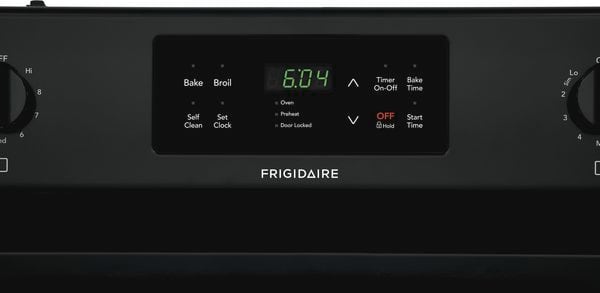

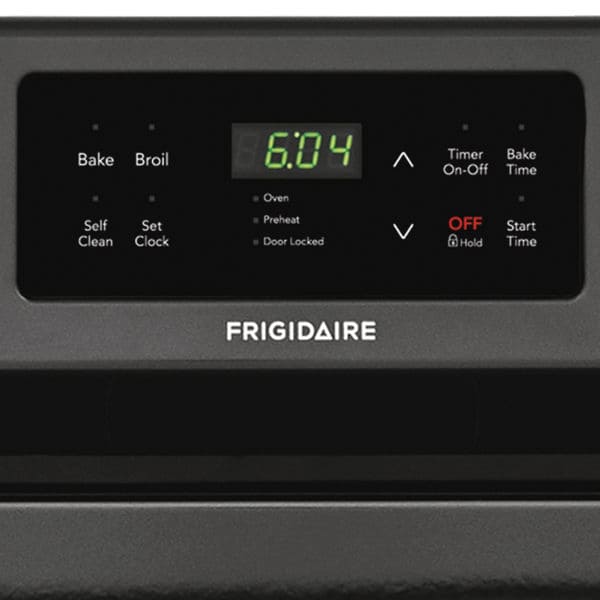

Electronic Kitchen Timer

• Times up to 12 hours (control panel colors vary by model)

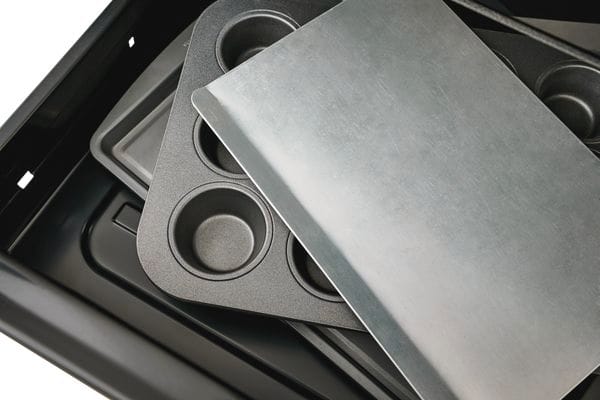

Store-More™ Storage Drawer

• With the Store-More™ Storage Drawer, you will have extra space to store your cookware.

Capacities

Total Capacity : 5.3

Certifications & Approvals

ADA Compliant : No

Agency Approval : UL

Sabbath Mode : No

Cooking Controls

Bake : Yes

Cancel : Yes

Automatic Oven (Delay Cook & Off) : Yes

Lockout : Yes

Lower Drawer Controls : Storage

Self-Clean : 2 3 Hours (Scroll thru)

Probe : No

Timed Bake : Yes

Timed Shut-off : 12 hours

Timer : Yes

Control Lock : Yes

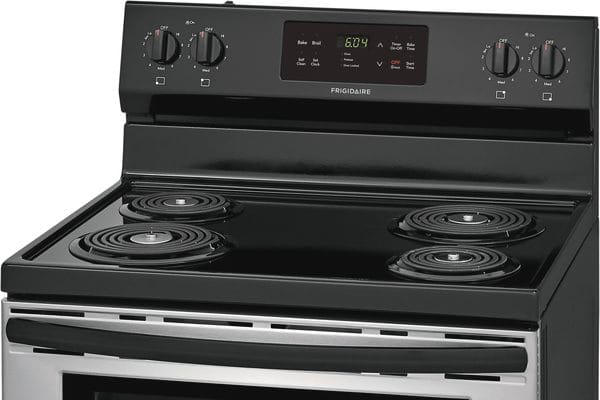

Cooktop

Bowl Type : Black Porcelain

Cooking Surface : Color-Coordinated Porcelain

Element On Indicator Light : 2 Clear

Knob Color : Black

Knob Type : Plastic Black

Left Front : 8" - 2400 Watts

Left Rear : 6" - 1500 Watts

Right Front : 6" - 1500 Watts

Right Rear : 8" - 2400 Watts

Cooktop Surface Type : coil

Dimensions: Exterior

Height : 46-9/16"

Width : 29-7/8"

Depth : 25-3/4"

Drawer

Drawer Functionality : Storage

Handle : Integrated

Electrical Specifications

Connected Load (kW Rating) @ 120V : 12.5 / 9.5

Connected Load (kW Rating) @ 240V : 10.0 / 7.5

Minimum Circuit Required (Amps) : 40A

Power Supply Connection Location : Rear Centerline Lower

Voltage Rating : 120V / 240V or 120V / 208V 60Hz

Exterior

Control Panel Finish : Smooth Touch - Black

Exterior Finish : Painted

General Specifications

Adjustable Leveling Legs : 4 Adjustable

Product Weight (lbs) : 135

PROP 65 Label : No

Oven

Bake : 2600 Watts

Baking System : Even Baking Technology

Broil : 3000 Watts

Broil System : Hi/Lo

Hidden Bake Element : No

Oven 1 Interior Color : Marlin Blue

Oven 1 Interior Depth : 19-1/8"

Oven 1 Interior Height : 19-3/4"

Oven 1 Interior Width : 24-3/8"

Oven 1 Rack Configuration : 2 Standard

Oven 1 Rack Positions : 6 positions

Oven 1 Type : Main

Oven 1 Window : Extra-Large Visualite®

Oven Specifications

Oven 1 Cleaning System : Self-Clean

Oven 1 Interior Lighting : 1
