• Manual Clean Oven

Hi/Lo Broil Options

• Offers two-position broiling and variable temperature control for more control.

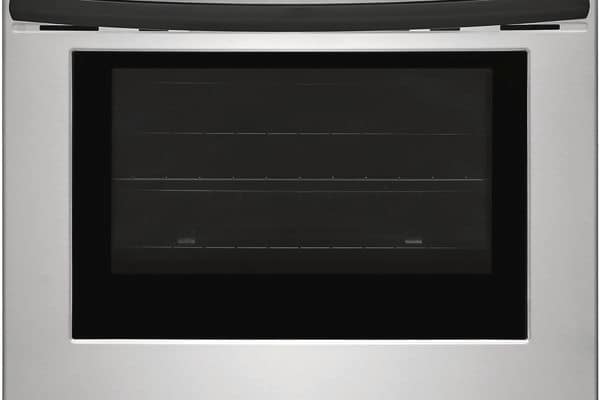

Color-Coordinated Oven Door with Large Window

• Our large oven window makes it easier to check on the status of your dish without having to open the oven door.

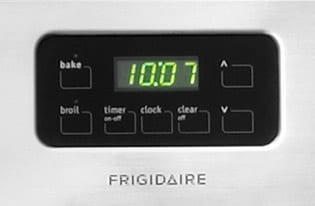

Electronic Kitchen Timer

• Times up to 12 hours (control panel colors vary by model)

Store-More™ Storage Drawer

• With the Store-More™ Storage Drawer, you will have extra space to store your cookware.

Capacities

Total Capacity : 4.8

Certifications & Approvals

ADA Compliant : No

Agency Approval : UL

Sabbath Mode : No

Cooking Controls

Bake : Yes

Broil : Yes

Cancel : Yes

Automatic Oven (Delay Cook & Off) : No

Lockout : No

Lower Drawer Controls : Storage

Self-Clean : No

Probe : No

Timed Bake : No

Timed Shut-off : No

Timer : Yes

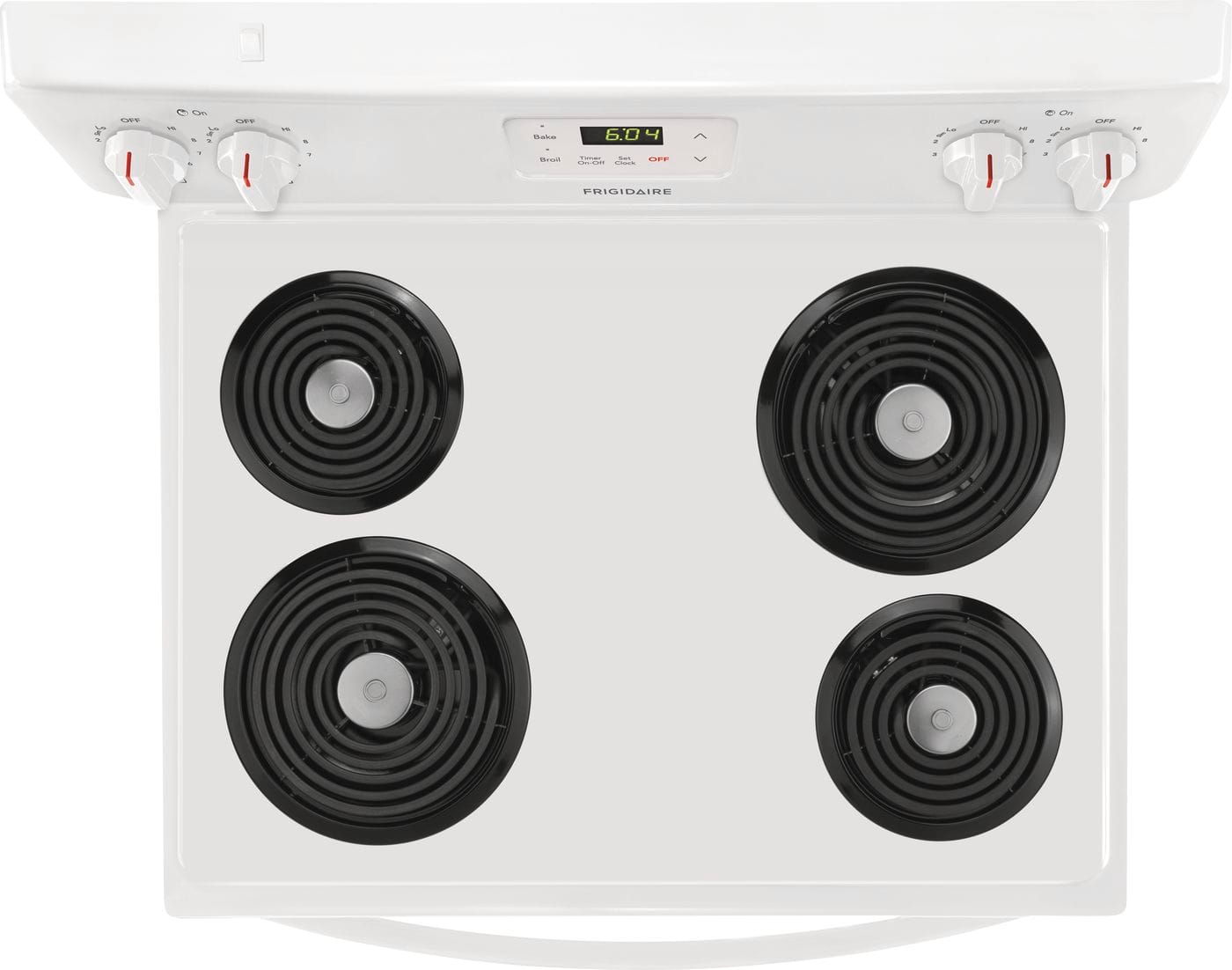

Cooktop

Bowl Type : Black Porcelain

Cooking Surface : Upswept Coil with Black Porcelain Bowls

Element On Indicator Light : No

Hot-Surface Indicator Light : Yes

Left Front : 8" - 2400 Watts

Left Rear : 6" - 1500 Watts

Right Front : 6" - 1500 Watts

Right Rear : 8" - 2400 Watts

Cooktop Surface Type : coil

Dimensions: Exterior

Height : 46-9/16"

Width : 29-7/8"

Depth : 28-13/32"

Drawer

Drawer Functionality : Storage

Electrical Specifications

Connected Load (kW Rating) @ 240V : 10.0 / 7.5

Minimum Circuit Required (Amps) : 40A

Power Supply Connection Location : Right Rear Bottom

Voltage Rating : 120V / 240V or 120V / 208V 60Hz

Exterior

Exterior Finish : Painted

General Specifications

Adjustable Leveling Legs : 4 Adjustable

PROP 65 Label : No

Oven

Bake : 2600 Watts

Baking System : Even Baking Technology

Broil : 3000 Watts

Broil System : Vari-Broil™ High/Low

Hidden Bake Element : No

Oven 1 Interior Depth : 18-3/4

Oven 1 Interior Height : 19-3/4

Oven 1 Interior Width : 23"

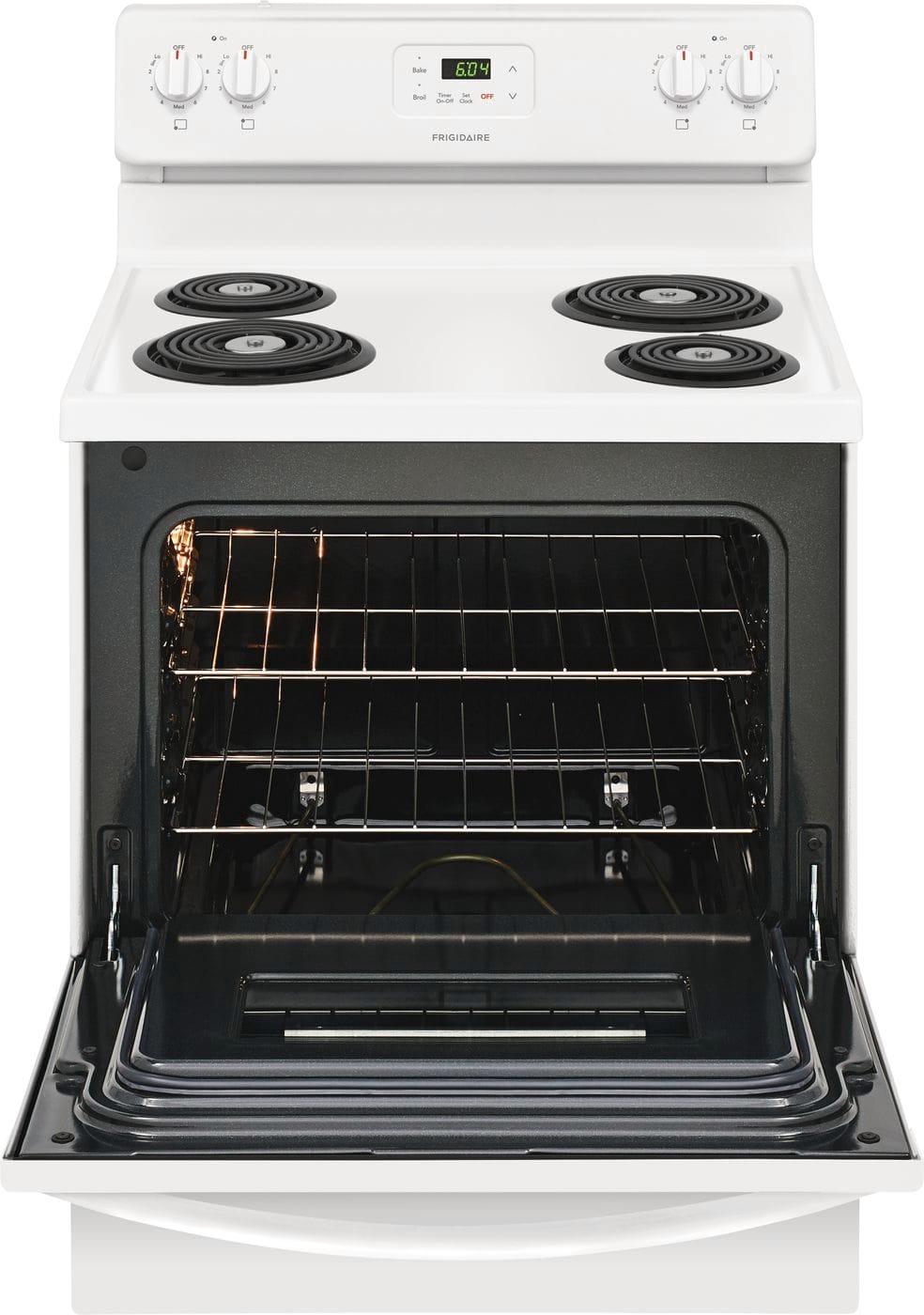

Oven 1 Rack Configuration : 2 Standard

Oven 1 Rack Positions : 5 positions

Oven 1 Type : Main

Oven 1 Window : Extra-Large Visualite®

Oven Specifications

Oven 1 Cleaning System : Manual Clean

Oven 1 Interior Lighting : 1 Incandescent

• Complete Owner's Guide

• Wiring Diagram

• Product Specifications Sheet
