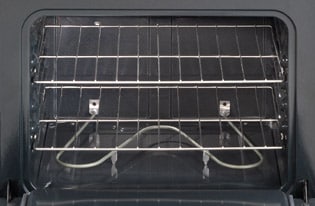

• Manual Clean Oven

Hi/Lo Broil Options

• Offers two-position broiling and variable temperature control for more control.

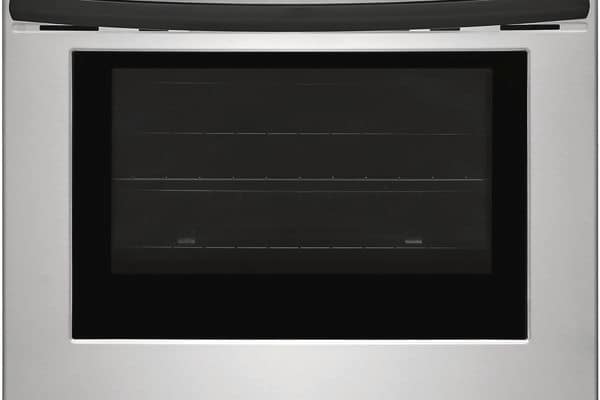

Color-Coordinated Oven Door with Large Window

• Our large oven window makes it easier to check on the status of your dish without having to open the oven door.

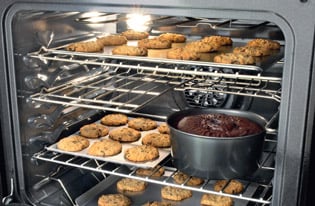

Bright Lighting

• Our bright lighting makes it easy to see what’s inside.

Store-More™ Storage Drawer

• With the Store-More™ Storage Drawer, you will have extra space to store your cookware.

Capacities

Total Capacity : 4.2

Certifications & Approvals

ADA Compliant : Yes

ETL Listed : No

Agency Approval : UL

NSF® Certified : No

Sabbath Mode : No

Controls

Clock : No

Auto Shut-Off : No

Cooking Controls

Lower Drawer Controls : Storage

Automatic Oven (Delay Cook & Off) : No

Bake : Yes

Broil : Yes

Lockout : No

Timer : No

Probe : No

Timed Bake : No

Cancel : No

Preheat : Integrated with Bake

Temperature Display : No

Display Type : Membrane

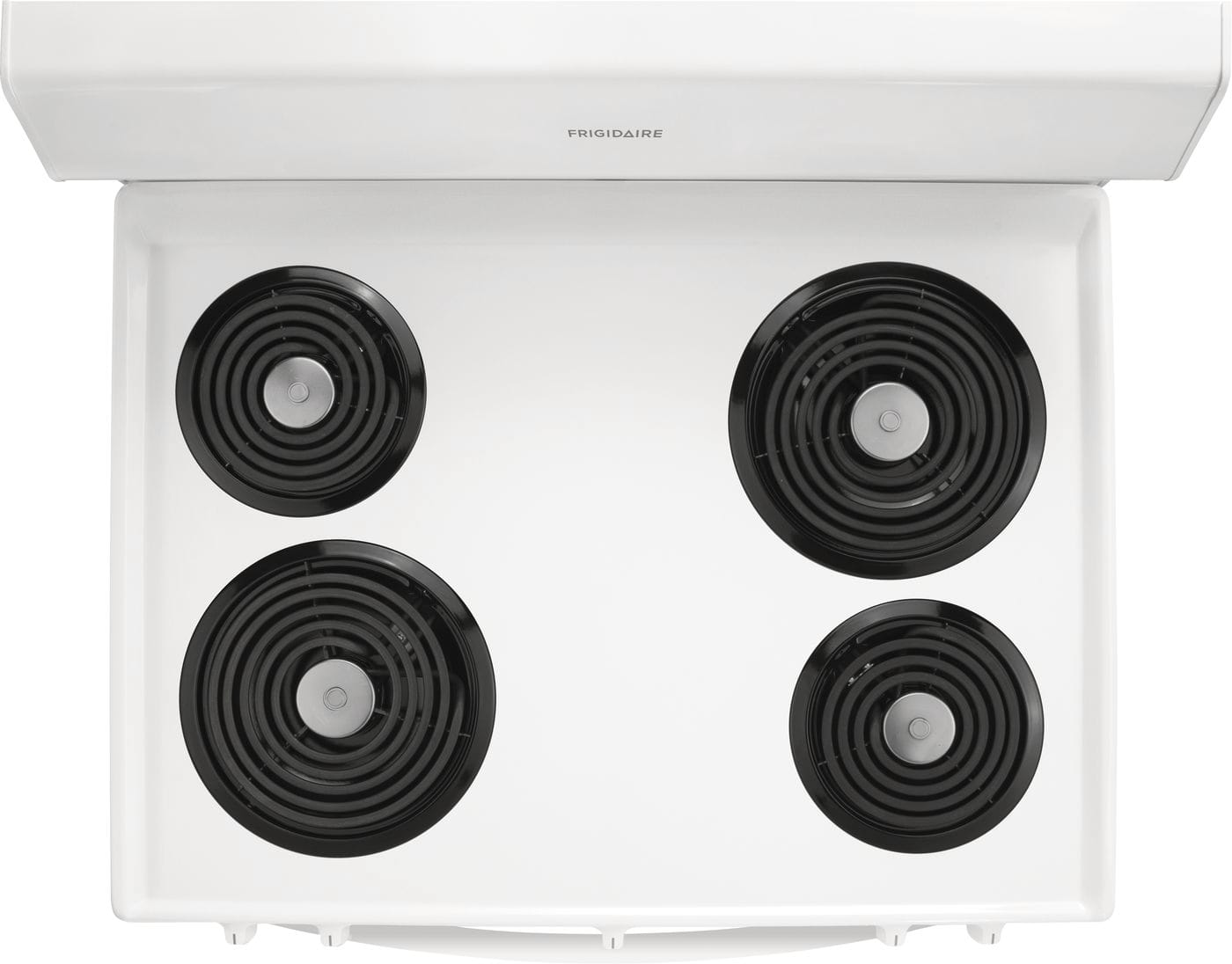

Cooktop

Right Rear : 8" - 2400 Watts

Knob Type : Plastic CC

Left Front : 8" - 2400 Watts

Hot-Surface Indicator Light : 1 Clear

Bowl Type : Black Porcelain

Element On Indicator Light : 1 Clear

Right Front : 6" - 1500 Watts

Left Rear : 6" - 1500 Watts

Cooking Surface : Slabtop Coil with Black Porcelain Bowls

Knob Color : Color-Coordinated

Dimensions: Cut-Out

Cut-Out Height : 48" - 49"

Dimensions: Exterior

Depth (with Door 90° Open) : 44-5/8"

Width : 29-7/8"

Depth : 25-3/4"

Height : 47-3/4"

Drawer

Handle : Integrated

Drawer Functionality : Storage

Electrical Specifications

Minimum Circuit Required (Amps) : 40A

Connected Load (kW Rating) @ 240V : 11.5 / 8.5

Voltage Rating : 120V / 240V or 120V / 208V 60Hz

Power Supply Connection Location : Right Rear Bottom

Exterior

Cabinet Color : Color-Coordinated

Cooktop Finish : Color-Coordinated Porcelain

Door Finish : Glass Color-Coordinated

Control Panel Finish : Color-Coordinated Metal

Drawer Finish : Color-Coordinated with Integrated Handle

General Specifications

Adjustable Leveling Legs : 4 Adjustable

PROP 65 Label : No

Oven

Oven 1 Type : Main

Broil System : Hi/Lo

Oven 1 Rack Configuration : 2 Standard

Oven 1 Rack Positions : 5 positions

Bake : 2600 Watts

Oven 1 Interior Width : 23"

Oven 1 Interior Height : 17"

Oven 1 Interior Depth : 18-3/4"

Baking System : Even Baking Technology

Oven 1 Window : Standard Visualite®

Broil : 3000 Watts

Hidden Bake Element : No

• Complete Owner's Guide

• Wiring Diagram

• Installation Instructions

• Installation Instructions

• Installation Instructions

• Product Specifications Sheet
