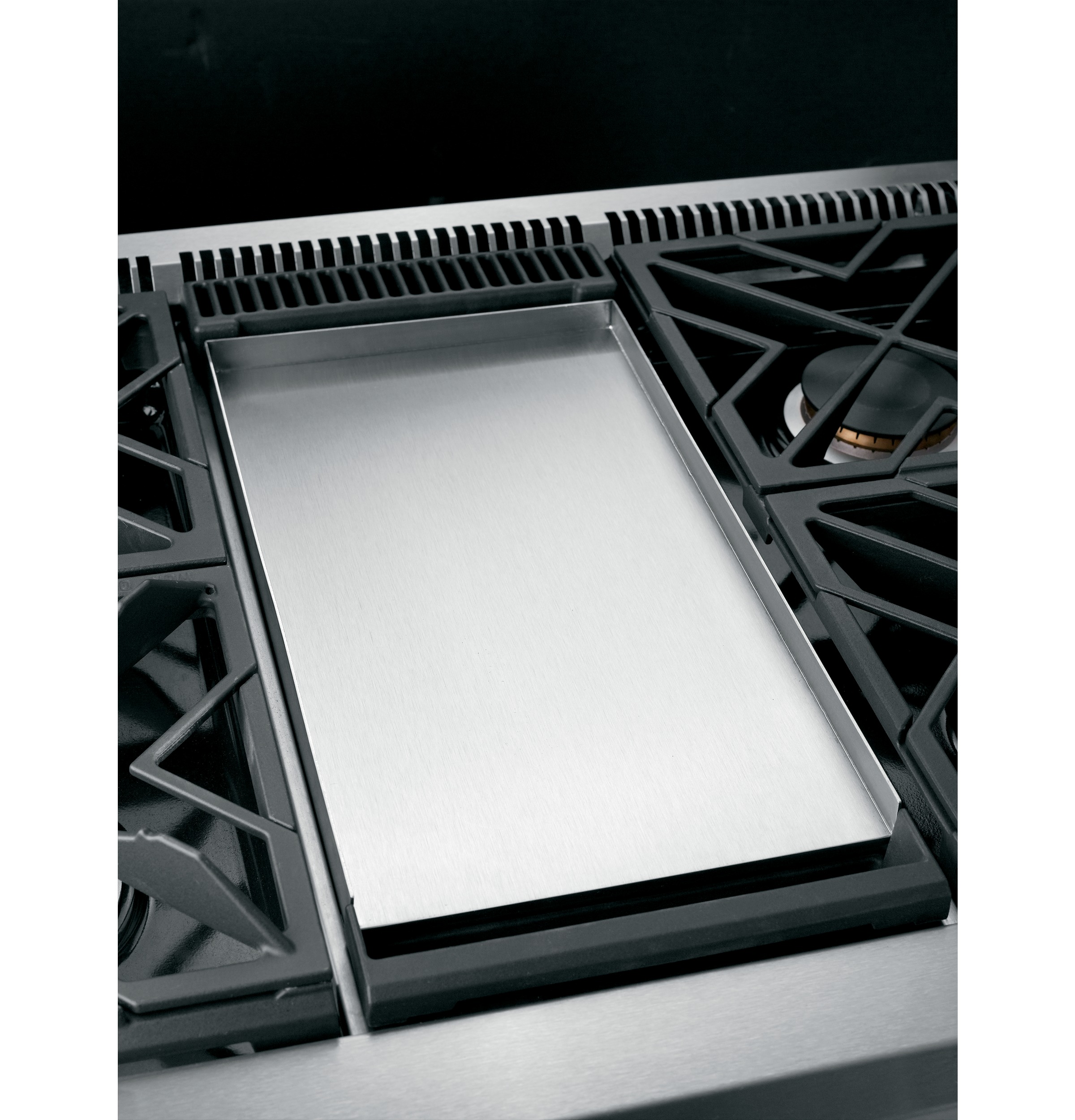

Become a pancake pro

• Quickly and evenly cook pancakes from the cooktop with a Stainless steel aluminum-clad griddle

Spend more time cooking and less time cleaning up

• Keep your kitchen sparkling, even when there's a spill with sealed cooktop burners that contain messes for easy cleanup

More control delivers better results

• Enjoy a full range of heat settings from ultra-low simmers to intense boils, with six sealed 18K BTU dual-stack burners

Get the most from your cookware and cooktop

• Experiment with every cuisine with reversible burner grates that are flat on one side and contoured on the other to accommodate round-bottom cookware like woks

One surface makes cooking easier

• Easily move heavy cookware across the surface without worry, thanks to continuous, cast-iron grates

Worry about guests, not the cooking

• Confidently cook over a steady flame with the electronic ignition’s automatic reignition feature that instantly revives any accidentally extinguished flames

ACCESSORIES

High Altitude Kit : WB28K10553

Conversion Kit : Included - Nat. Gas to LP

Factory-installed island backguard : Yes

Optional Kits : CXPR8HKPMBT Brushed Black, CXPR8HKPMBZ Brushed Bronze, CXPR8HKPMCU Brushed Copper, CXPR8TKPMSS Brushed Stainless

APPEARANCE

Design Style : Professional Stainless Steel

Color Appearance : Stainless Steel

Installation : Flush Installation Capable

Control Knobs : Dishwasher Safe, Professional-Style, Stainless Steel Appearance

FEATURES

Dishwasher Safe Knobs : Yes

Cooktop Burner Type : 6 Sealed, Dual Flame Stacked

Valves (Degree of Turn) : 270

Burner - Right Rear : 18,000 BTU

Burner - Right Front : 18,000 BTU

Fuel Type : Natural Gas

Control Location : Upfront

Ignition System : Electronic

Burner - Center : 18,000 BTU Left Front / 18,000 BTU Left Rear / 18,000 BTU Griddle Right

Cooktop Surface : Gray, Porcelain-Enamel

Burner - Left Rear : 18,000 BTU

Extra Low Simmer : All Burners - Adjustable

Automatic Re-Ignition : Yes

Control Type : Manual, Simmer (1-9) Hi

Cooktop Burner Grate Material : Heavy Cast

Griddle Indicator : Yes

Cooktop Burner Grate Features : Reversible (Flat/Wok) Grates

Griddle : 18,000-BTU, Stainless Steel and Aluminum Clad

140 Deg. Simmer Burner : All Burners - Adjustable

Configuration : 6 Burners

Product Type : Rangetop

Burner - Left Front : 18,000 BTU

FILTER

App Filter - Cabinet Width : Cooking 48 in.

App Filter - Fuel Type : Gas

App Filter - Control Type : Rotary knobs

POWER / RATINGS

Burner BTU Ratings (000's/BTU) - LP Gas : (6) 15.0

Burner BTU Ratings (000's/BTU) - Natural Gas : (6) 18.0

Volts/Hertz/Amps : 120v; 60Hz; 15A

WARRANTY

Parts Warranty : Limited 1-year entire appliance

Warranty Notes : See written warranty for full details

Labor Warranty : Limited 1-year entire appliance

WEIGHTS & DIMENSIONS

Overall Height : 8.5 in

Cabinet Width : 48 in

Approximate Shipping Weight : 227 lb

Overall Width : 47.875 in

Net Weight : 171 lb

Overall Depth : 27.5 in

• Installation Instructions

• Quick Specs

• Use and Care Manual
