Cook more food. Entertain more possibilities.

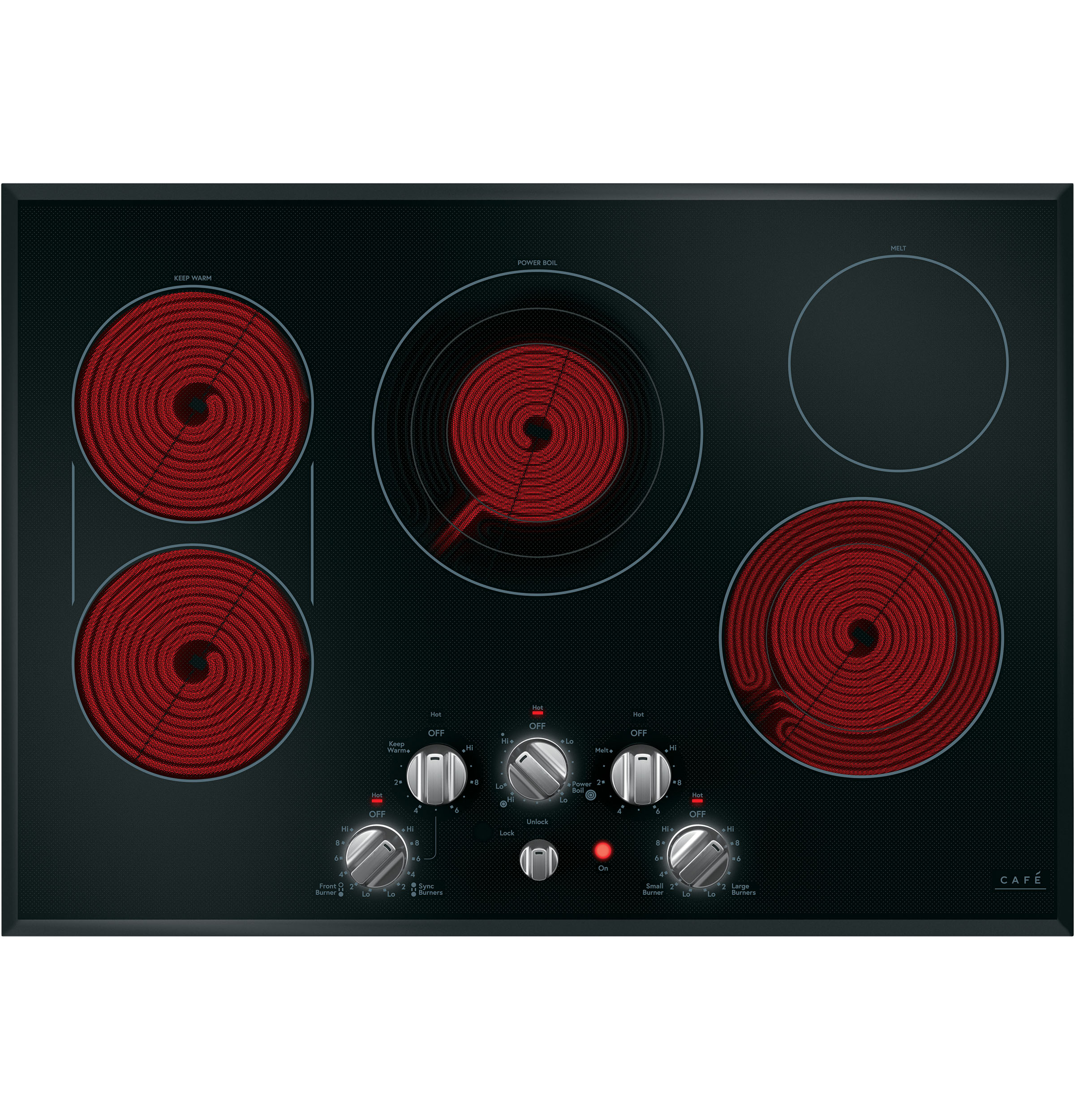

• Prepare more at the same time with five radiant cooking elements that deliver rapid, consistent heat

More heat for more space

• Evenly heat large cookware like griddles or dutch ovens by controlling two 7" synchronized elements with just the touch of a button

Smart design adds style and functionality

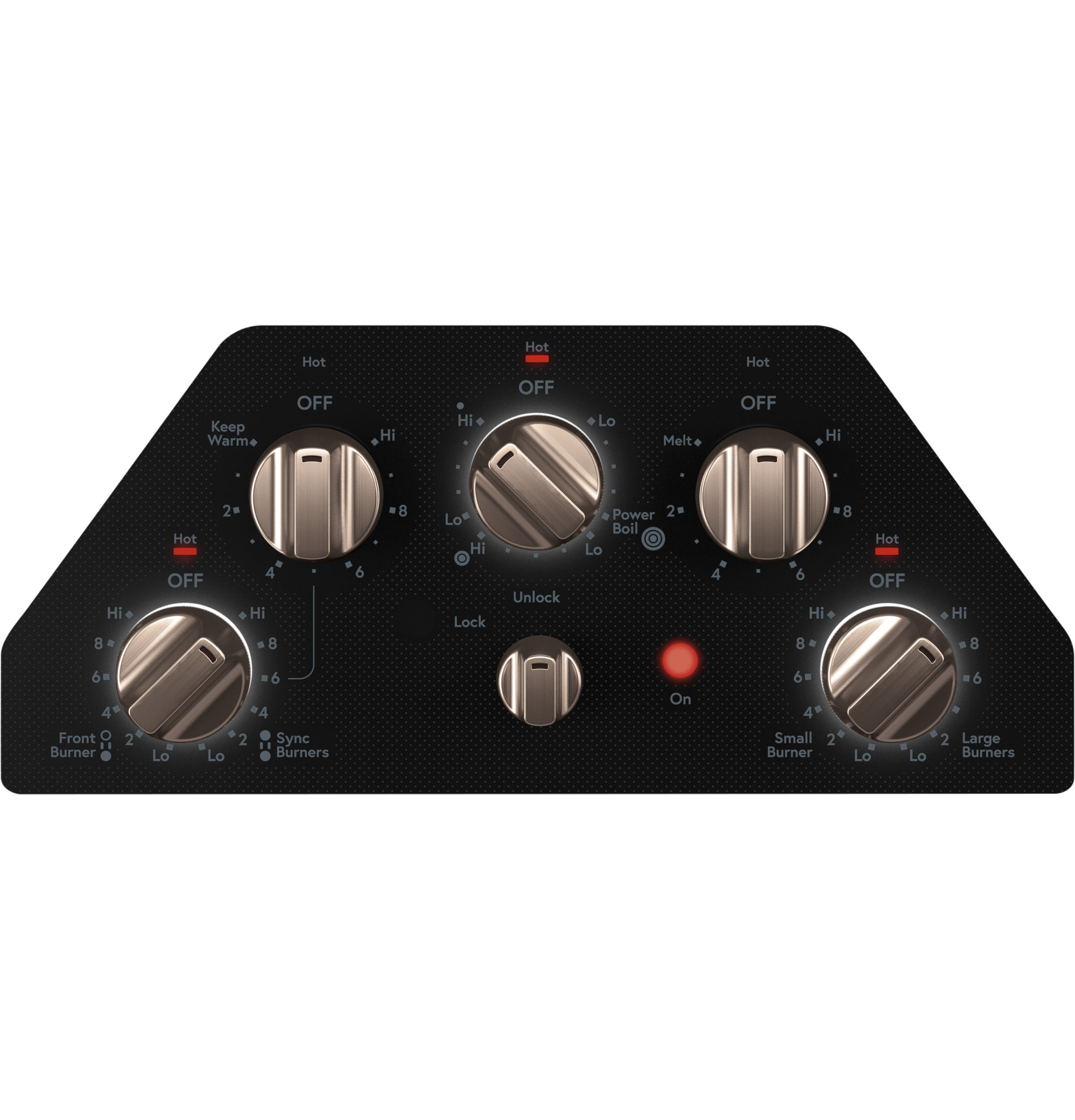

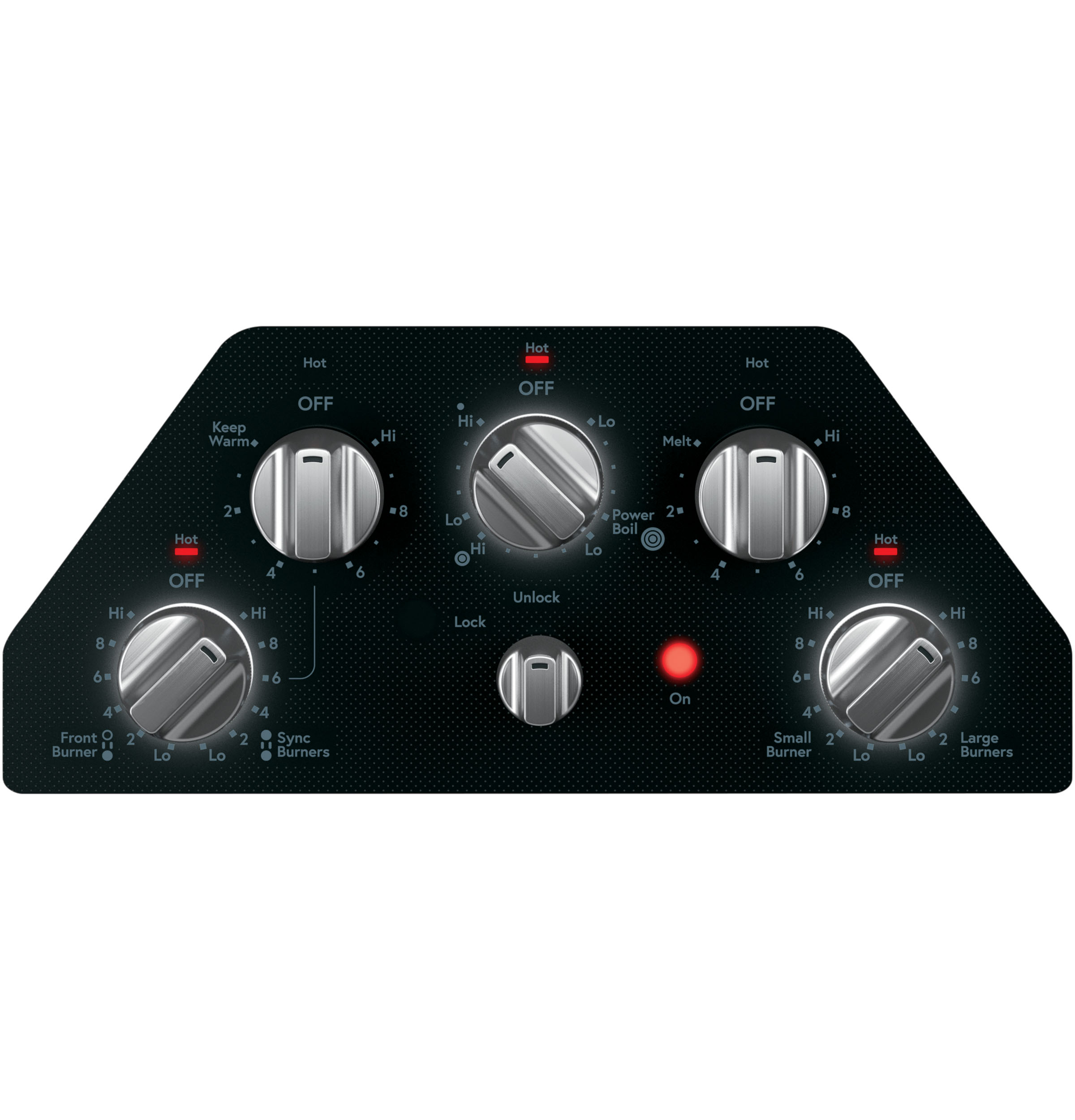

• Take your design to the next level with white LED backlit knob lighting with beveled edge black glass surface

The perfect match for pots and pans of all sizes

• Tailor your burner size to your cookware with an 9"/7"/5" element that's powerful enough to boil water quickly

Guaranteed to fit your space

• When you’re updating your kitchen, attention to detail is a priority. That’s why Café cooktops are guaranteed for an exact fit or Café Appliances will pay up to $100 toward modifications.

Flexible burner sizes add more function

• Tailor your burner size to your cookware with an 8"/5" dual element

Keep dishes at ready-to-serve temperatures

• Serve every dish at the perfect temperature thanks to a keep warm setting on a fully-functional 6" element

Melting just got more precise

• Melt butter without browning it using the melt setting

Safety controls add peace of mind

• Prevent unintended burner activation with control lock capability

Know what’s hot and what’s not

• Keep your kitchen accident-free with a hot surface indicator light that shows you with a glance when elements are too hot to touch

ACCESSORIES

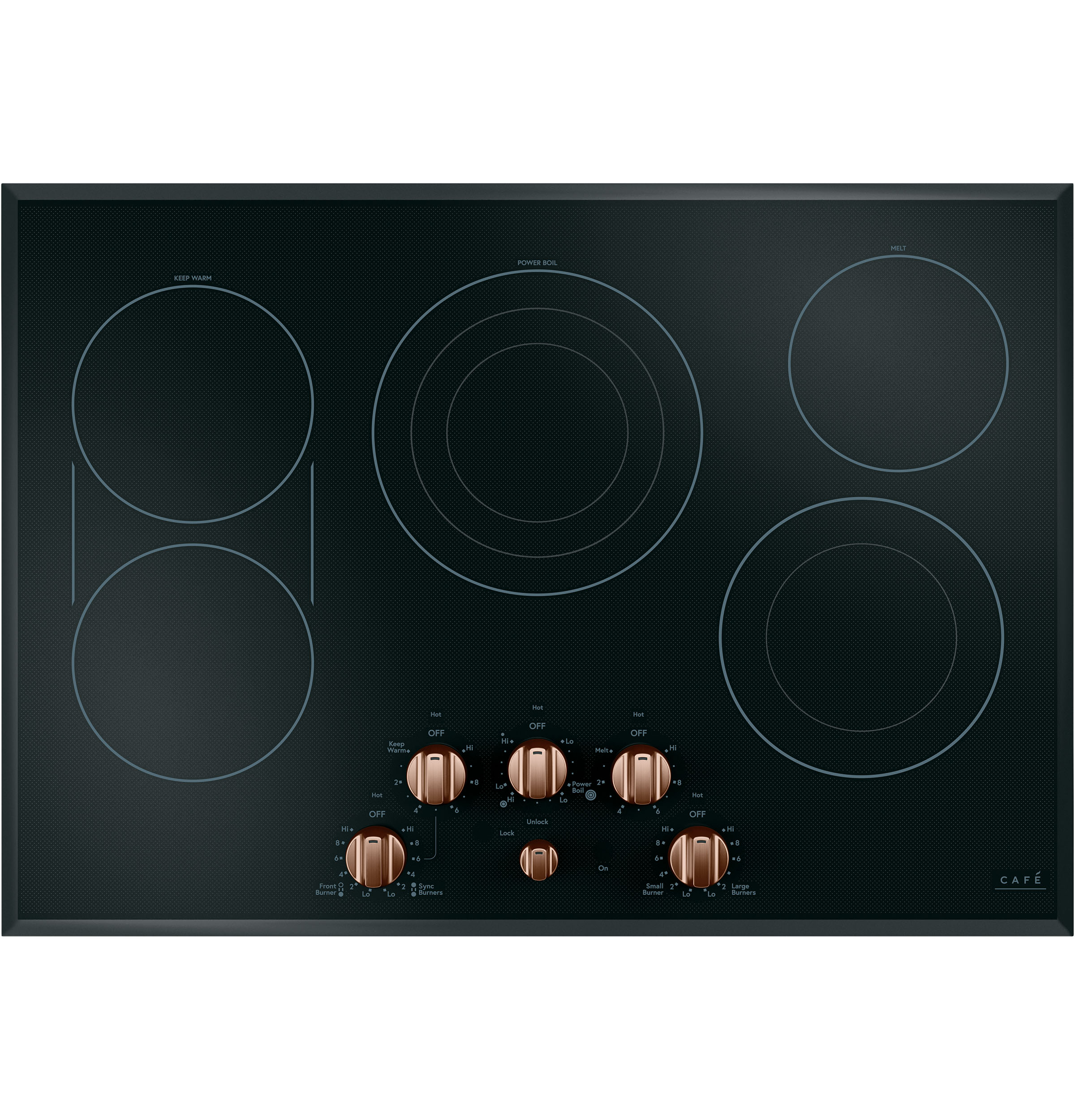

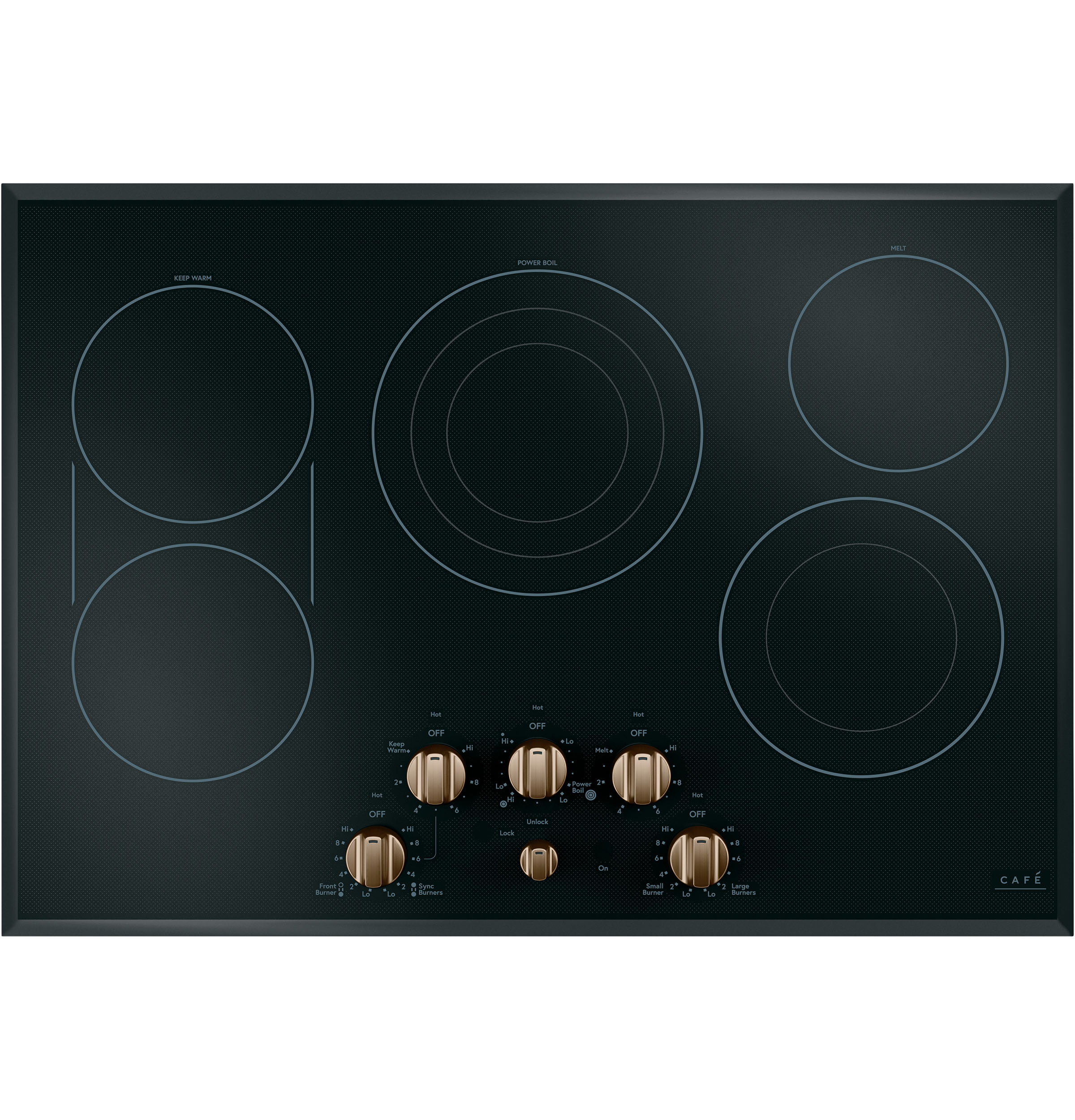

Optional Kits : CXCE1HKPMBT Brushed Black, CXCE1HKPMBZ Brushed Bronze, CXCE1HKPMCU Brushed Copper, CXCE1HKPMSS Brushed Stainless

APPEARANCE

Color Appearance : Black

Frameless : Yes

Control Knobs : Stainless Steel Appearance

FEATURES

Dishwasher Safe Knobs : Yes

Filler trim kit : JXTR32B

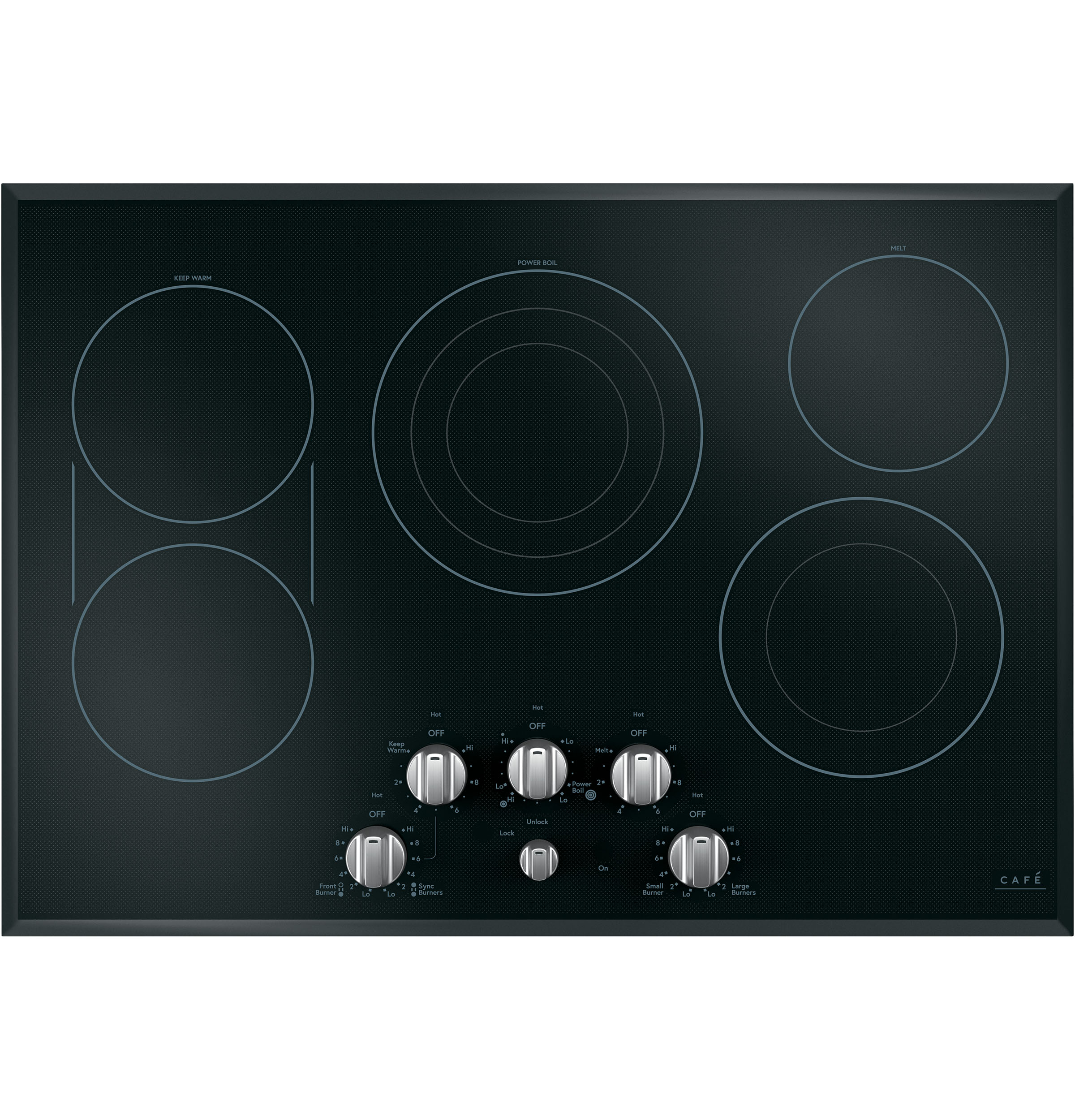

Cooktop Burner Type : 5 Ribbon, Smoothtop

Melt Setting : Yes

Fuel Type : Electric

Element - Left Front : 7" 1500W

Indicator Lights : 5 Hot Surface, Surface Element "ON", White/Red

Element - Right Front : 8"/5" 2200W Dual

Control Location : Front Center

Cooktop Type : Radiant Smoothtop

Cooktop Surface : Black Ceramic Glass with Beveled Edge

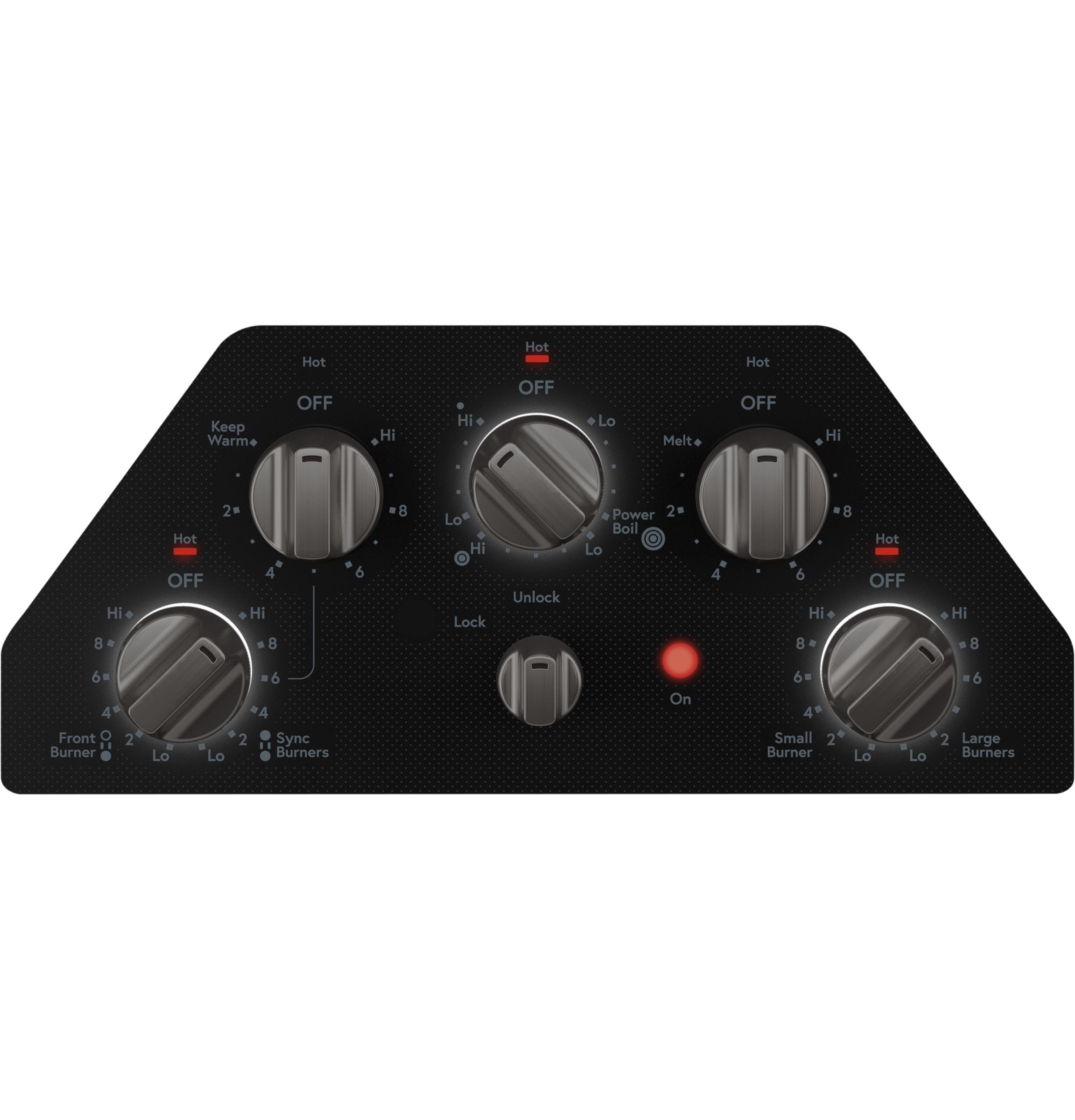

Cooktop Control Features : Control Lock Capability, Keep-Warm Setting, Melt Setting, Sync-Burners Capability

Element - Left Rear : 7" 1500W

Control Type : Knob (Infinite switch)

Element - Center : 9"/7"/5" 3000W Power Boil

Element - Right Rear : 6" 1200W

Configuration : 5 Elements

Product Type : Cooktop

FILTER

App Filter - Cabinet Width : Cooking 30 in. (Standard)

App Filter - Backlit Knobs : Yes

App Filter - Cooktop Type : Radiant Smoothtop

App Filter - Fuel Type : Electric

App Filter - SyncBurners : Yes

App Filter - Control Type : Rotary knobs

POWER / RATINGS

Recommended Circuit Breaker (Amps) at 240V : 40

Max. Connected Load (kW) at 240V : 9.4

Max. Current Draw (Amps) at 240V : 39.2

Max. Connected Load (kW) at 208V : 7.1

Recommended Circuit Breaker (Amps) at 208V : 40

Max. Current Draw (Amps) at 208V : 33.9

WARRANTY

Parts Warranty : Limited 1-year entire appliance

Warranty Notes : See written warranty for full details

Labor Warranty : Limited 1-year entire appliance

WEIGHTS & DIMENSIONS

Cooktop Size : 30 in

Overall Height : 5.5625 in

Cutout Depth (in) : 19-5/8

Cabinet Width : 30 in

Approximate Shipping Weight : 48 lb

Overall Width : 29.75 in

Net Weight : 42 lb

Cutout Width (in) : 28-1/2

Overall Depth : 20.875 in

• Installation Instructions

• Quick Specs

• UL approved cooktops over wall ovens

• Use and Care Manual
