Ultra Dry

• Spend more time with family or guests and less time hand-drying dishes, thanks to a comprehensive Ultra Dry system that targets hard-to-dry items like plastic storage containers

Loading Flexibility

• Load the dishes your way

Bottle Jets

• Vases, canisters and bottles are always clean and ready for your tablescape thanks to the targeted washing power of Bottle Jets

Steam + Sanitization

• Eliminate the need to pre-wash dishes at the end of every meal, thanks to a Steam + Sani feature that easily loosens lingering traces of food with an added bonus of complete sanitization, removing 99.999% of bacteria

Adjustable Upper Racks

• You’ll have room for your finest stemware and space for tall bakeware with a rack that can be moved two inches up or down, creating ultimate loading flexibility

Wash Zones

• Save time and use less water when you don’t have a full dish load with a fully customizable cycle that lets you wash a true half load in the upper or lower rack

Create a look that matches your personal style

• Select any combination of hardware options to create a stunning look customized to any owner’s taste

ACCESSORIES

Optional Kits : CXADTH1PMBT Brushed Black, CXADTH1PMBZ Brushed Bronze, CXADTH1PMCU Brushed Copper

APPEARANCE

Handle : Café™

Installation : Built-Up Floor Capable, Flush Cabinet Installation, Side Installation or Top Installation Included

Handle Color : Brushed Stainless

Door Appearance : Full-length flat door

Door Style : Long Door with Top Controls

Color Appearance : Stainless Steel

ECONOMICAL / QUIET

Quiet Features : Quiet Water Valve, Sealed Toe Kick, Tub Collar Trim

Quiet Package : 48 dBA

Outer Wrap : Bitumen, Full-wrap Blanket

Motor Type : Single Speed

Door Insulation : Insulation, Mastic

FEATURES

Wash System Features : Automatic HotStart, Automatic Temperature Control, Bottle Jets (4), Drain Pump, Dual Pumps and Motors, Hard Food Disposer with removable filter

Style : Built-In Top Control

Upper Rack : 1/2 fixed tines, 1/2 fold down tines, Ball-Tip Tines, Manual + Adjustable

Racking Material : Nylon

Rack Features : 3-Piece Silverware Basket with Cell Covers, Ball-Tipped Tines, Manual Adjustable Upper Rack

Dishwasher Control Features : 1 "Clean" Light, 1 "Sanitized" Light, 1 "Low Rinse Aid" Light, Audible End-of-Cycle Signal, Cycle Countdown with Bi-Color LED Status Light on door, Last Cycle Memory

WiFi Connect : Optional (Requires part no. PBX23W00Y0)

Showroom Power Mode : Yes

Dishwasher Drying Features : Fan Assist Dry, Heated Dry - Ultra/Normal/Off, Multi-Wattage Wash & Dry Element

Leveling System : 4 Leveling Legs

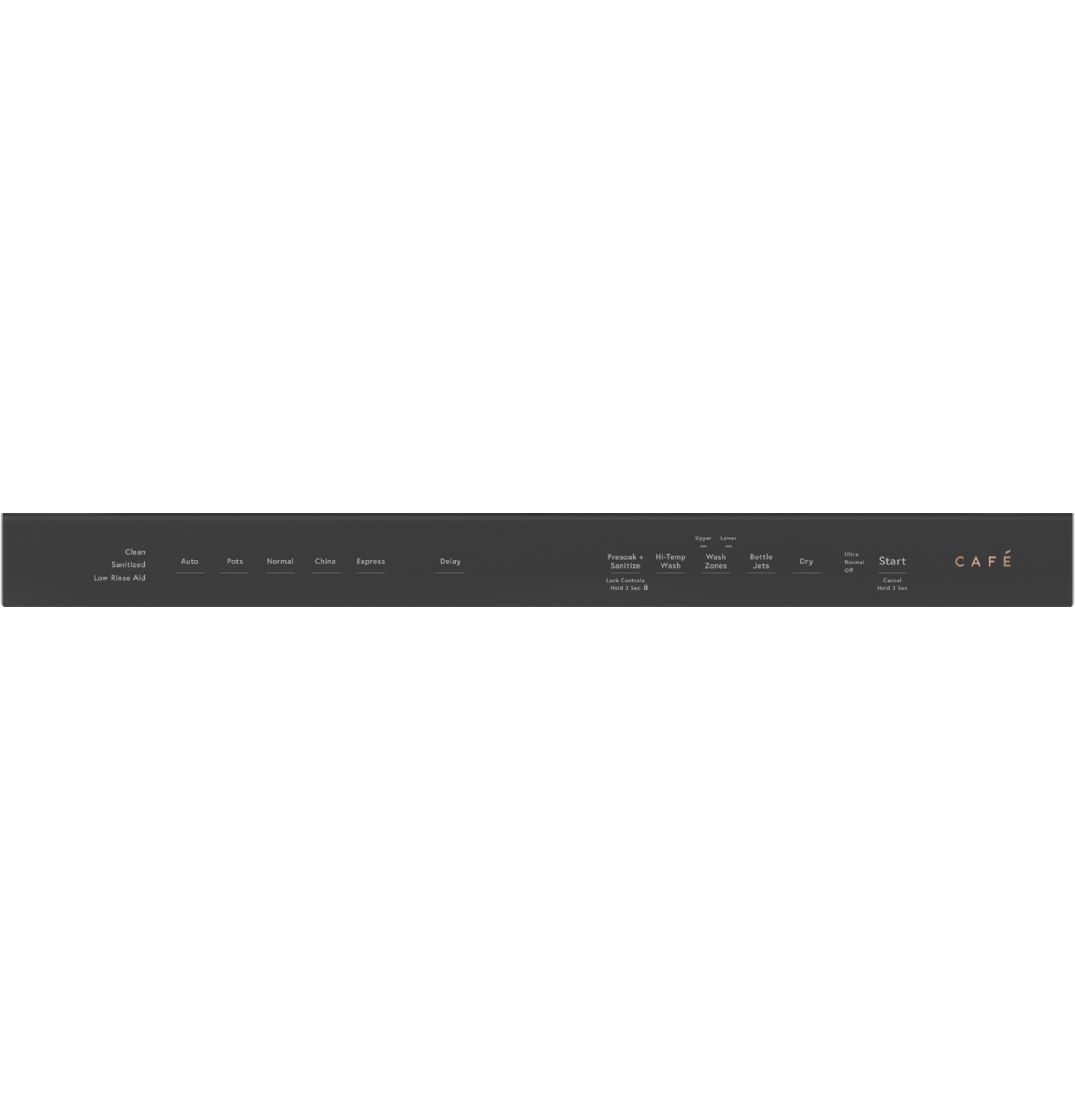

Control Type : 12 Touchpads, Cap Touch Controls, Top Controls

Number of Place Settings : Up to 16

Tub Type : Tall Tub

Rack Color : Black Pearl

Exterior Style : Traditional

Number of Cycles : 5

Wash System : 3-Level, 800 Series

Dishwasher Cycles : Auto, China, Express, Normal, Pots

Number of Options : 12

Dishwasher Options : Bottle Jets, Delay Start 1-12 Hr., Heated Dry Off, Hi-Temp Wash, Lock Controls, Normal Dry, Presoak + Sanitize (Certified to NSF Standard 184), Start/Reset, Ultra Dry, Wash Zone Lower Only, Wash Zone Upper Only

Tub and Door Liner : Stainless Steel

Latch : Pull with Handle

Wash Arms : 3 Wash Levels, Bottle Jets, Lower, Middle, Upper

Lower Rack : 1/2 fixed tines, 1/2 fold down tines, Ball-Tip Tines

Additional Protection : Active Flood Protect

Water Filtration System : 100% Filtration with Hard Food Disposer and Removable Filter

Sensor : Clean Sensor

Dispenser : Rinse Aid with Indicator and Adjustment

FILTER

App Filter - Bottle Wash : Yes

App Filter - Food Disposer : Yes

App Filter - Stainless Steel Interior : Yes

App Filter - Cabinet Width : Dish Traditional 24 in.

App Filter - Product Type : Dish Built-In Top Control

App Filter - WiFi Connect : Optional

POWER / RATINGS

Calrod Heater Watts : 800/500

Power Connection : Optional cord kit (GPFCORD - WX09X70910, WX09X70911)

Volts/Hertz/Amps : 120v; 60Hz; 7.2A

WARRANTY

Warranty Notes : See written warranty for full details

Parts Warranty : Limited 1-year entire appliance

Labor Warranty : Limited 1-year entire appliance

WEIGHTS & DIMENSIONS

Net Weight : 105.0 lb

Overall Depth : 24.0 in

Overall Depth with Handle : 26.3 in

Height w/Legs Extended - Maximum Height : 34.625 in

Overall Width : 23.75 in

Overall Height : 34.0 in

Approximate Shipping Weight : 118.0 lb

Cabinet Width : 24.0 in

Height w/ Legs Retracted - Minimum Height : 33.375 in
