• "The Captur™ system’s advanced blower/wheel design features a centric inlet to remove smoke and odor faster. Three-speed blower control exhausts at a powerful 600 CFM

• Forward placement and smooth-flow blower wheel design ensure quiet,

• Bright, two-level LED modules — supported by a 3-year warranty — illuminate evenly and are tested in cooking environments to ensure long life without dimming. ENERGY STAR® certified, saves energy expense

• Tap-touch, 3-speed capacitive control features a smooth, easy-to-clean surface

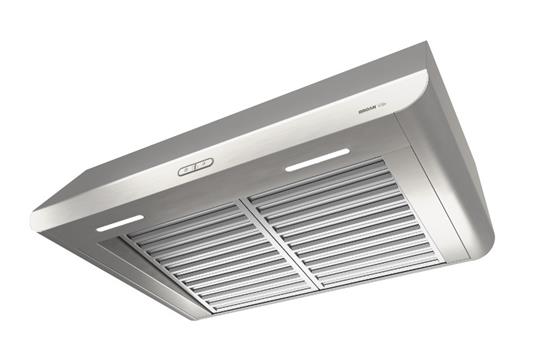

• Dishwasher-safe, hybrid baffle filters (model HPFA430 [service part # S97020204-002]) provide ultra-efficient grease removal with superior air flow. The filter clean reminder ensures they will always maintain a high level of capture

• EZ1 brackets enable single-person installation in less than half the time of traditional methods

• ADA compliant, remote operation is possible using a standard UL approved wall switch. See additional information above

• Non-duct capable with use of charcoal filters, sold separately (model HPF30 [service part # S97020466]). Hidden louvers on top of hood exhaust away from cabinetry"

TECHNOLOGY & INNOVATION HIGHLIGHTS

ADA Compliance : See Additional Information aboveYes

Boost Mode : No

Cabinet Width (inches) : 36"

CFM Airflow Max : 600

CFM Airflow Normal : 185

Color/Finish : Stainless Steel

Control Feature Filter Reminder : Yes

Damper Included : No

Delay Shut Off : No

Digital Clock : No

Duct Connector Size : 3-1/4 x 14 or 7" RD

ENERGY STAR® certified product : Yes

Filter Included : Yes

Filter Type : Aluminum Hybrid Baffle

Heat Sentry - Temperature Sensor : No

Light Bulb Quantity : 2

Light Bulbs Included : Yes

Lighting Function : Two-level

Lighting Type : LED

Material : Stainless Steel

Minimum Height Above Cook Top : 18"

Mounting Type : Under Cabinet

Nightlight : No

Non-Ducted Filter Included : No

Non-Ducted Recirculation Capable : Convertible built-in

Product Depth (inches) : 19-1/4"

Product Height (inches) : 9"

Product Width (inches) : 35-7/8"

Rated Amps : 1.9

Rated Voltage : 120

Remote Operation Capable : No

Sones Max : 8.5

Sones Normal : 0.8

Speed Levels : 3

Switch Style : Capacitive Touch

UL Listed : Yes
