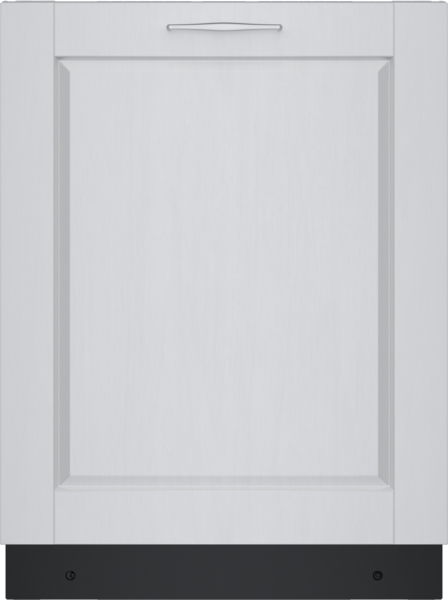

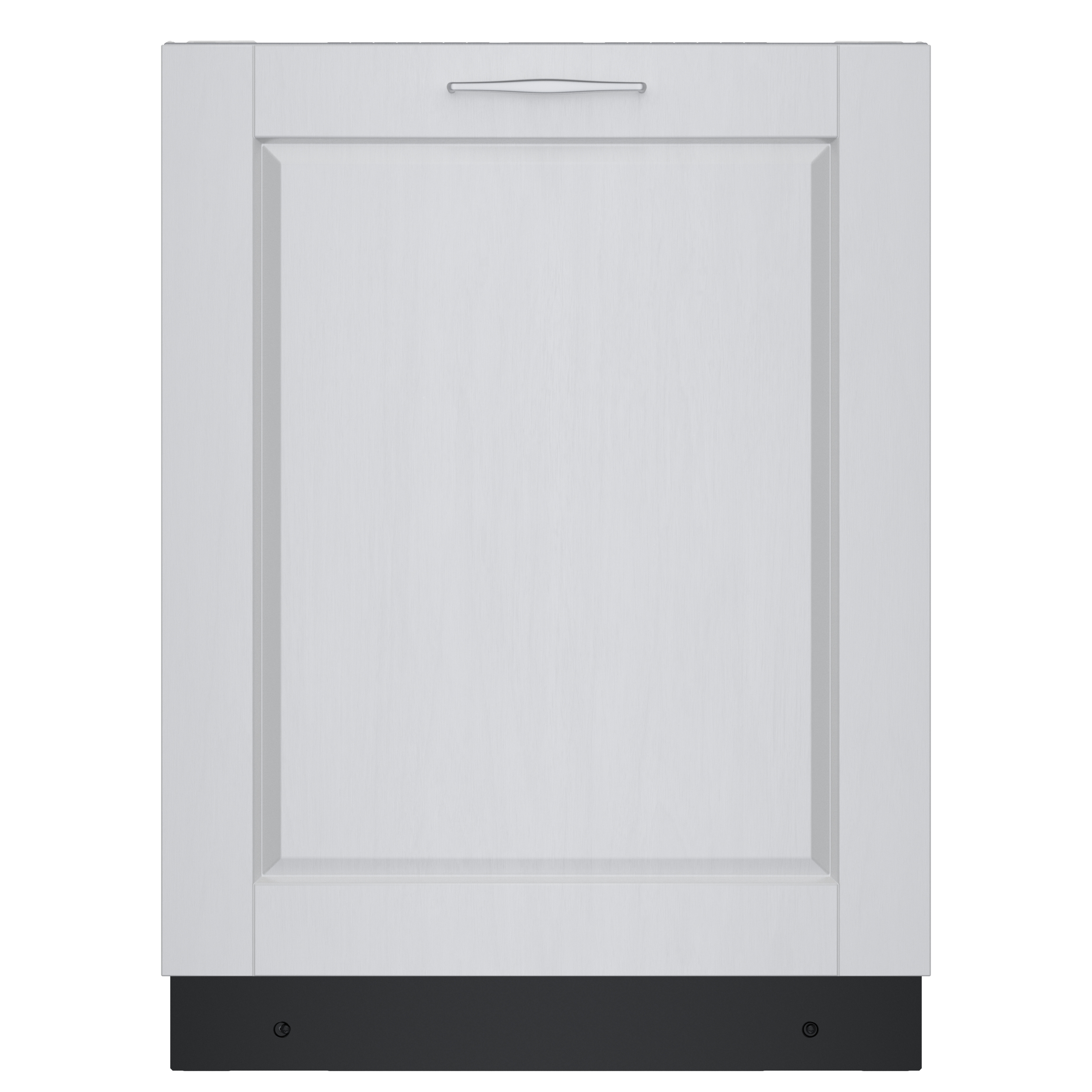

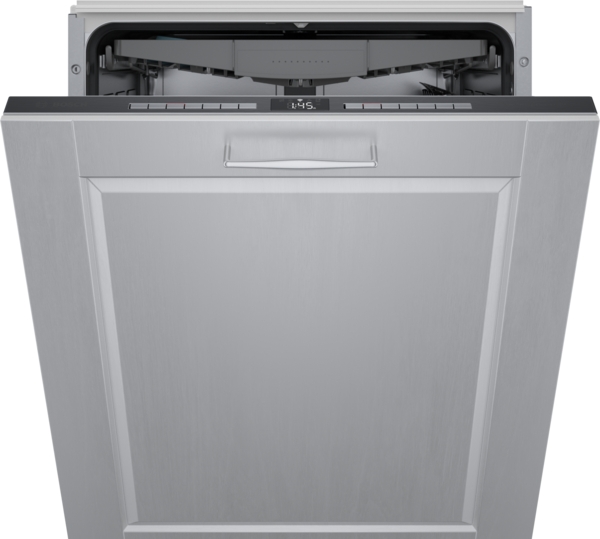

Custom Panel Dishwashers

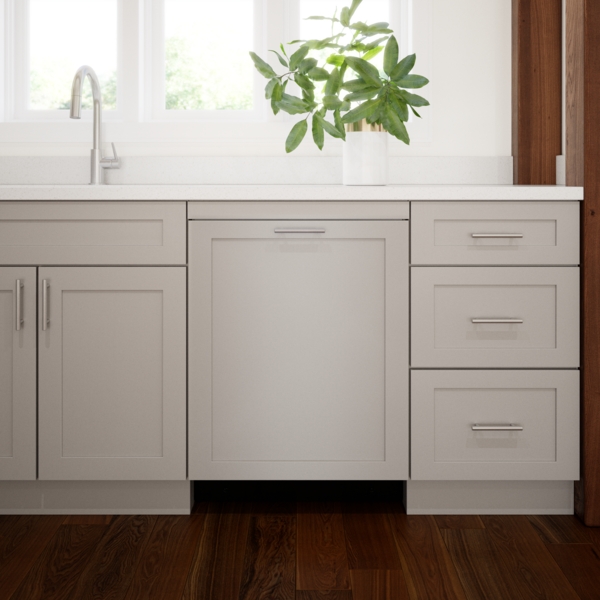

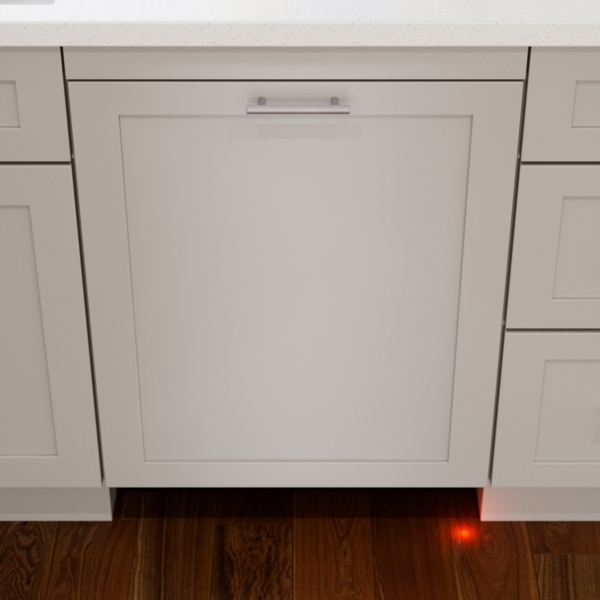

• seamlessly integrate your Bosch custom panel dishwasher into your kitchen by matching it to your kitchen’s custom cabinetry.

CrystalDry™

• transforms moisture into heat up to 176°F to give dishes, even plastics, the ultimate dry.

PrecisionWash®

• uses Intelligent sensors to monitor the wash water and automatically adjust the cycle for a smarter clean.

Extremely Quiet Operation at 42 dBA

• creating a dishwasher so quiet, you can't always tell it is running -- this is what makes Bosch the quietest dishwasher brand in the U.S.*

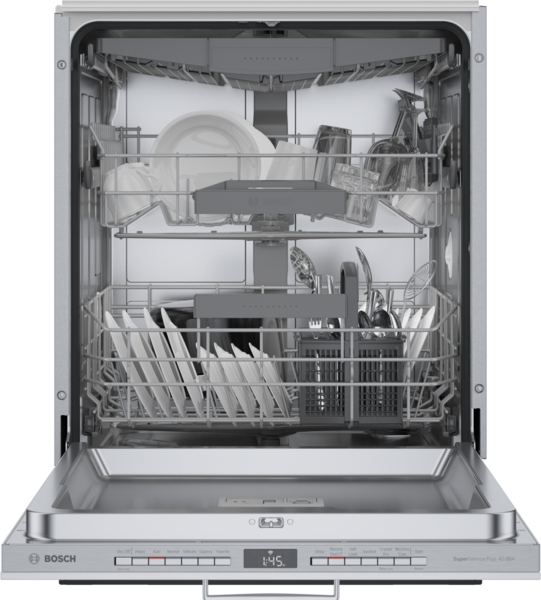

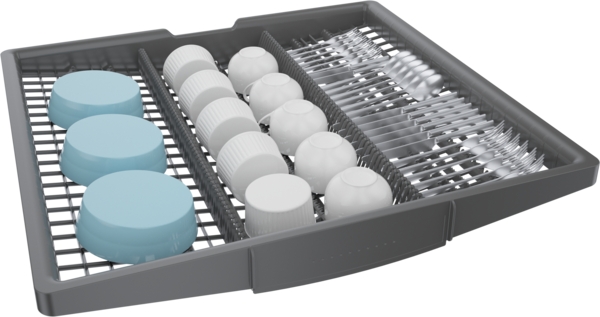

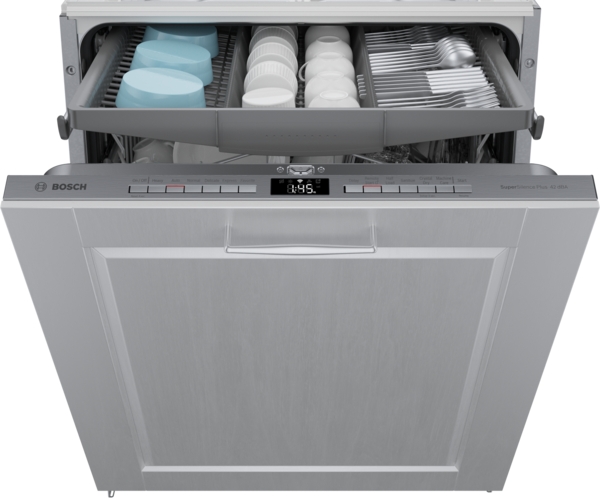

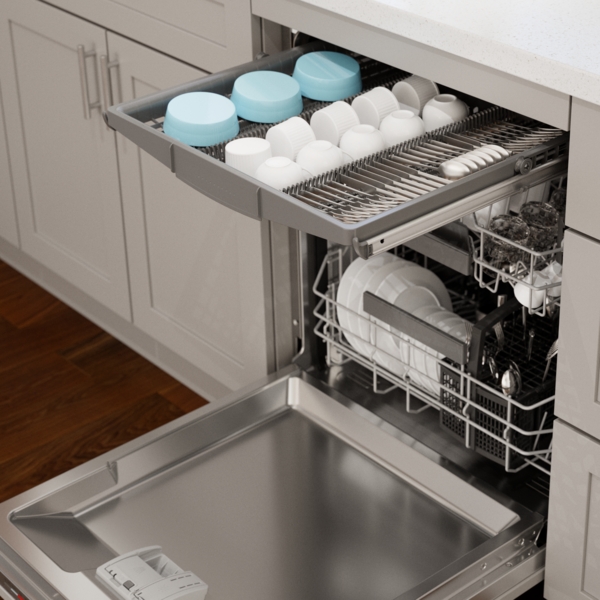

Standard 3rd Rack

• provides a convenient top rack for your utensils, giving the other racks more space for dishes.

• The Bosch 24” width ADA-compliant dishwasher is shorter than standard dishwashers and features sophisticated technologies for outstanding performance, quiet operation, and remarkable flexibility.  Now with patented CrystalDry™ and connected technology through Home Connect™.

General

Product group : Dishwasher

Brand : Bosch

Product series : 800 Series

SKU : SGV78B53UC

Internal article number : SGV78B53UC

EAN code : 4242005282029

Construction type : Built-in

Installation type : Full-integrated

Column installation : Yes

Type of control : Electronic

Type of control : push-button

Removable work top : No

Door decor panel : Possible but accessory

Tub material : Stainless steel

Hidden heating element : Yes

Watts (W) : 1440

Current (A) : 12

Volts (V) : 120

Frequency (Hz) : 60

Power cord length (cm) : 170.0

Plug type : Nema5-15P

Length inlet hose (cm) : 165

Length outlet hose (cm) : 190

Adjustable plinth : No

Height of removable worktop (mm) : 0

Maximum adjustability feet (mm) : 60

Depth with open door 90 degree (mm) : 1155

Height of the packed product (mm) : 880

Width of the packed product (mm) : 670

Depth of the packed product (mm) : 670

Minimum height for installation (mm) : 815

Maximum height for installation (mm) : 875

Minimum width for installation (mm) : 610

Maximum width for installation (mm) : 618

Depth for installation (mm) : 550

Net weight (kg) : 44.6

Gross weight (kg) : 48.5

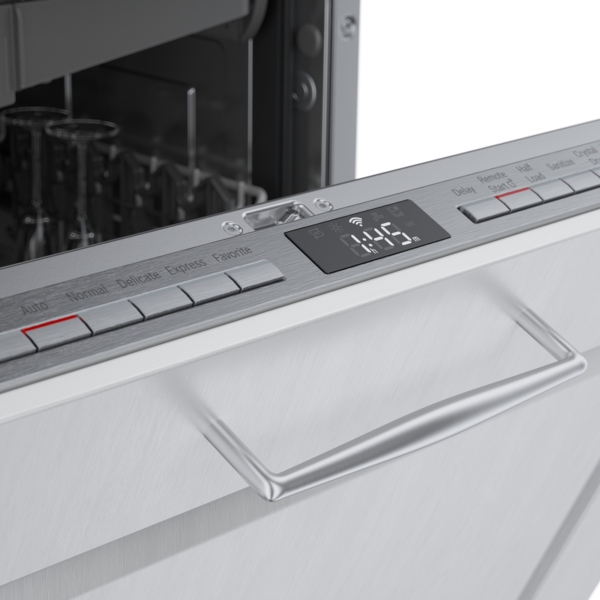

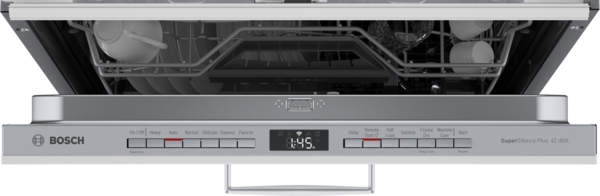

Location of control panel : Top

Reference programme : Eco

Number of place settings : 15

Silence level (dBA) : 42

Enter the maximum temperature for wash (°C) : 71

Drying system : Condensation Dry , Zeolite

Start delay options : Continuous

Stop delay or a start delay option : Start

Start delay time max (h) : 24

Single basket washing : No possibility

Status indicator : End of program audible, Time remaining indic. internal, Water inlet

Leak protection system : 24/7 Aqua Stop Plus

Digital countdown indicator : Yes

Water softener : Yes

Salt light indicator : Yes

Number of different wash temperatures : 8

Maximum accepted water hardness : [50°DH]

Rinse aid light indicator : Yes

Enter the minimum temperature for wash (°C) : 45

List of programmes : Auto, Favorite, Hand Wash, Intensive, Normal, Quick Wash 45°C

Maximum temperature for water intake (°C) : 60

Number of options : 6

Cycle Options : Half Load, HygienePlus, Machine Care, Remote Start, Zeo Dry

Automatic programmes : Yes

Safety device : triple water protection 24h

Interior light : No

Adjustable upper rack : Rackmatic 3-stage

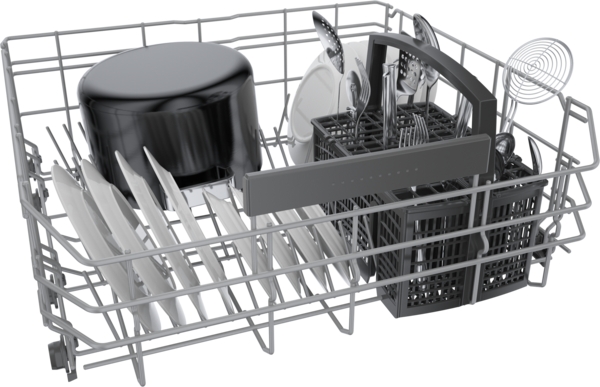

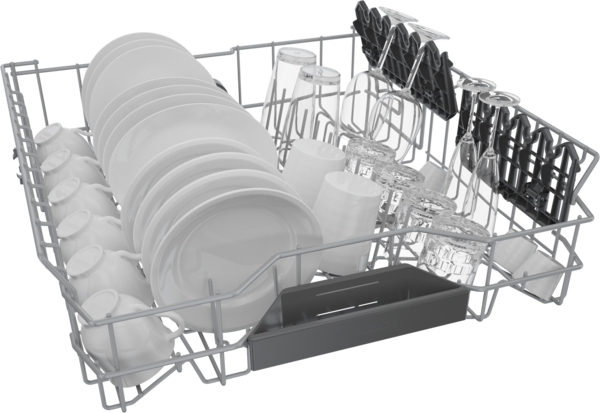

Basket with handle : Bottom basket, Top basket

Software update : Yes

Optional accessories : SGZ1010UC, SMZ5000, SMZ5003

Maximum door panel weight : 8.50
