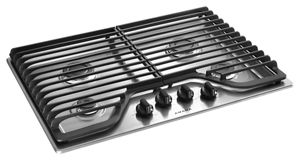

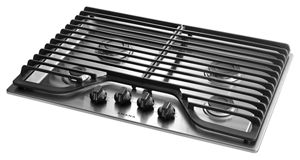

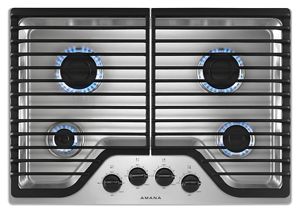

30-inch Gas Cooktop with 4 Burners
Product Details

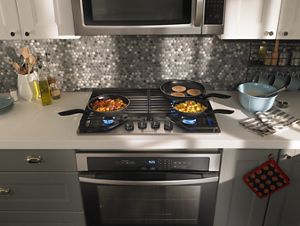

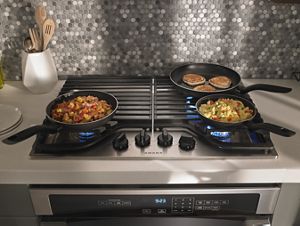

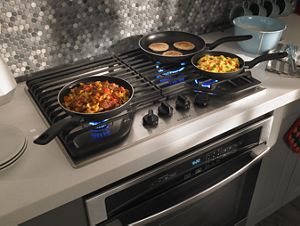

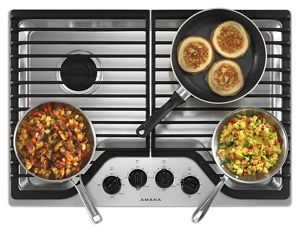

- Now dinner's a one and done deal. 4 burners with up to 12,000 BTUs help you fry, boil, simmer and melt all your dishes at the same time.

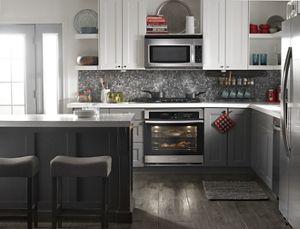

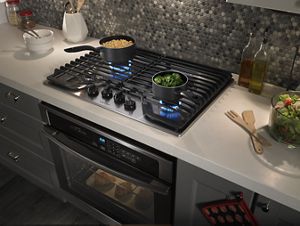

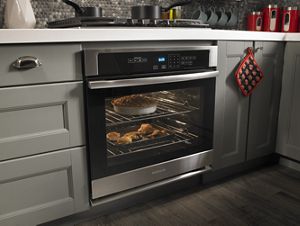

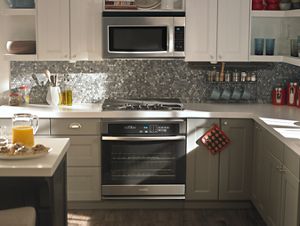

- This cooktop Installs Over the Wall Oven with ease, creating a complementary look for your kitchen.

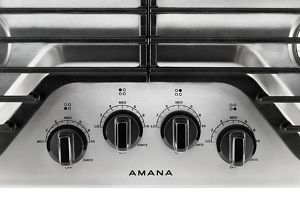

- Easily accessible Front Controls let you turn up the heat just how you like it.

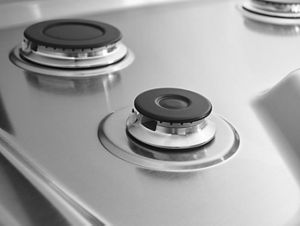

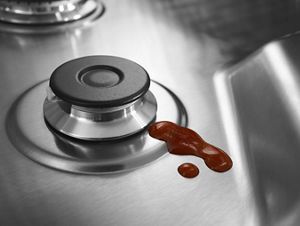

- Don't sweat the small spills. Sealed Burners make cleanup easy by limiting spills from dripping beneath the cooktop.

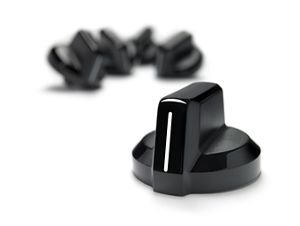

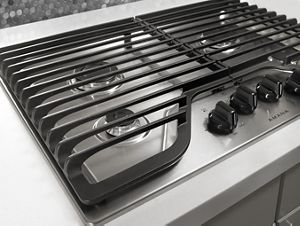

- Put away the sponge. These Dishwasher-Safe Grates and Knobs let the dishwasher do the dirty work.
- This LP conversion kit converts your cooktop for use with propane gas.
- Models with this feature meet standards set by the Americans with Disabilities Act when installed in compliance with current ADA standards.
Accessory Relationships
Accessory Relationships : Yes
Certifications|ADA Compliant
Certifications|ADA Compliant : ADA Height and Side and Front Reach Compliant
Certifications|Prop 65
Certifications|Prop 65 : Standard
Certifications|UL
Certifications|UL : Yes
Controls|Control Location
Controls|Control Location : Front
Controls|Control Type
Controls|Control Type : Knobs
Controls|Infinite Heat Controls
Controls|Infinite Heat Controls : Yes
Controls|Knob Color
Controls|Knob Color : Color Coordinated/Black on Stainless
Controls|Knob Type
Controls|Knob Type : Dishwasher-Safe Plastic
Cooktop Details|Cooktop Element Style
Cooktop Details|Cooktop Element Style : Sealed Burner
Cooktop Details|Cooktop Surface Color
Cooktop Details|Cooktop Surface Color : Color Coordinated
Cooktop Details|Grate Details
Cooktop Details|Grate Details : Cast Iron Grates,Continuous,Dishwasher Safe,Gloss Finish
Cooktop Details|Ignition Type
Cooktop Details|Ignition Type : Direct Spark Ignition
Cooktop Details|Left Front Element-Burner Power
Cooktop Details|Left Front Element-Burner Power : 5,000 BTU
Cooktop Details|Left Front Element-Burner Type
Cooktop Details|Left Front Element-Burner Type : Simmer
Cooktop Details|Left Rear Element-Burner Power
Cooktop Details|Left Rear Element-Burner Power : 12,000 BTU
Cooktop Details|Left Rear Element-Burner Type
Cooktop Details|Left Rear Element-Burner Type : SpeedHeat™
Cooktop Details|Number of Cooking Element-Burners
Cooktop Details|Number of Cooking Element-Burners : 4
Cooktop Details|Number of Grates
Cooktop Details|Number of Grates : 2
Cooktop Details|Number of Open Bays
Cooktop Details|Number of Open Bays : N/A
Cooktop Details|Right Front Element-Burner Power
Cooktop Details|Right Front Element-Burner Power : 9,100 BTU
Cooktop Details|Right Front Element-Burner Type
Cooktop Details|Right Front Element-Burner Type : Sealed Burner
Cooktop Details|Right Rear Element-Burner Power
Cooktop Details|Right Rear Element-Burner Power : 12,000 BTU
Cooktop Details|Right Rear Element-Burner Type
Cooktop Details|Right Rear Element-Burner Type : Sealed Burner
Description|Combinations with Oven
Description|Combinations with Oven : AWO6313,AWO6317
Description|Cooktop Type
Description|Cooktop Type : Standard
Description|Fuel Type
Description|Fuel Type : Gas
Description|Size (in.)
Description|Size (in.) : 30
Details|Cooktop Surface Material
Details|Cooktop Surface Material : Stainless/Porcelain Coated Steel
Dimensions
Carton Depth : 25 in
Carton Height : 12 1/16 in
Carton Width : 34 13/16 in
Cutout Depth (in) : 19 1/2 in
Cutout Width (in) : 28 7/8 in
Depth : 21 in
Height : 4 1/8 in
Width : 30 in
Gross Weight : 40 in
Maximum Height : 4 1/8 in
Minimum Height : 3 3/8 in
Net Weight : 34.0 in
Dimensions|Carton Depth(IN,inches)
Dimensions|Carton Depth(IN,inches) : 25.0000
Dimensions|Carton Height(IN,inches)
Dimensions|Carton Height(IN,inches) : 12.0625
Dimensions|Carton Width(IN,inches)
Dimensions|Carton Width(IN,inches) : 34.8125
Dimensions|Cutout Depth Max(IN,inches)
Dimensions|Cutout Depth Max(IN,inches) : 20.0000
Dimensions|Cutout Depth Min(IN,inches)
Dimensions|Cutout Depth Min(IN,inches) : 19.0000
Dimensions|Cutout Depth(IN,inches)
Dimensions|Cutout Depth(IN,inches) : 19.5000
Dimensions|Cutout Width Max(IN,inches)
Dimensions|Cutout Width Max(IN,inches) : 29.3125
Dimensions|Cutout Width Min(IN,inches)
Dimensions|Cutout Width Min(IN,inches) : 28.5000
Dimensions|Cutout Width(IN,inches)
Dimensions|Cutout Width(IN,inches) : 28.8750
Dimensions|Depth(IN,inches)
Dimensions|Depth(IN,inches) : 21.0000
Dimensions|Gross Weight(LB,pounds)
Dimensions|Gross Weight(LB,pounds) : 40
Dimensions|Height(IN,inches)
Dimensions|Height(IN,inches) : 4.1250
Dimensions|Maximum Height(IN,inches)
Dimensions|Maximum Height(IN,inches) : 4.1250
Dimensions|Minimum Height(IN,inches)
Dimensions|Minimum Height(IN,inches) : 3.3750
Dimensions|Net Weight(LB,pounds)
Dimensions|Net Weight(LB,pounds) : 34
Dimensions|Width(IN,inches)
Dimensions|Width(IN,inches) : 30.0000
Electrical|Amps
Electrical|Amps : 15
Electrical|Hz
Electrical|Hz : 60
Electrical|Power Cord Included
Electrical|Power Cord Included : Yes
Electrical|Volts
Electrical|Volts : 120
Features|Automatic Pan Detection
Features|Automatic Pan Detection : No
Features|Digital Display
Features|Digital Display : No
Features|Downdraft Vent
Features|Downdraft Vent : No
Features|Griddle
Features|Griddle : Optional Accessory
Features|Heating Element On Indicator Light
Features|Heating Element On Indicator Light : No
Features|Hot Surface Indicator Light
Features|Hot Surface Indicator Light : No
Features|Installs Over Built-In Oven
Features|Installs Over Built-In Oven : Yes
Features|LP Convertible
Features|LP Convertible : Yes - Kit Included
Features|Power Boost
Features|Power Boost : No
Features|Power Outage Compatible
Features|Power Outage Compatible : Yes
